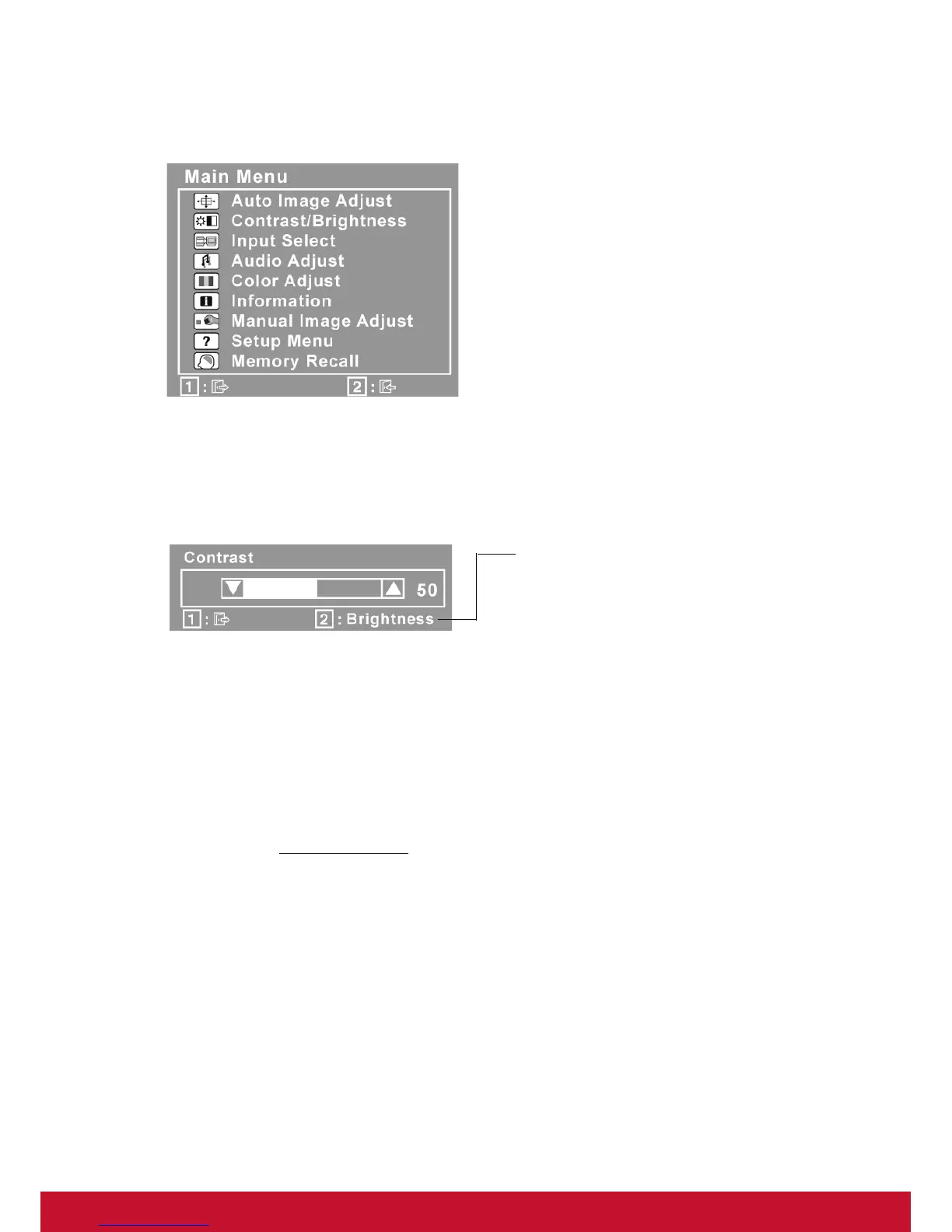

Do the following to adjust the display setting:
1. To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after about 15
seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to adjust, pressSorTto scroll up or down in the Main Menu.
3. After the desired control is selected, press button [2]. A control screen like the one shown
below appears.
4. To adjust the control, press the up S or down T buttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
• Adjust the computer's graphics card so that it outputs a 1920 x 1080 @ 60Hz video signal to
the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's
user guide.)
• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible
. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)
The line at the bottom of the screen shows
the current functions of buttons 1 and 2:
Exit or select the Brightness control.

ViewSonic VG2228WM-LED Specifications

General

3D	No
Display diagonal	22 \
Vertical scan range	50 - 75 Hz
Horizontal scan range	24 - 82 kHz
Viewable size diagonal	546.1 mm
Viewable size, vertical	269.24 mm
Viewing angle, vertical	160 °
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewable size, horizontal	477.52 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Ethernet LAN (RJ-45) ports	0
USB hub version	2.0
USB Type-A downstream ports quantity	2
Certification	CB, TCO'05, WEEE, UL/cUL, FCC-B, IRAM, NOM, EPEAT Silver ERGO, CE, Ukraine, GOST-R+Hygienic, SASO, BSMI, PSB, C-TICK, KCC, CCC
Product color	Black
Market positioning	Business
Compliance industry standards	RoHS
RMS rated power	4 W
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Package depth	160 mm
Package width	582 mm
Package height	500 mm
Cables included	USB
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	230 mm
Height (with stand)	412.02 mm
Weight (with stand)	4400 g
Depth (without stand)	61.7 mm
Width (without stand)	510.9 mm
Height (without stand)	305.9 mm
Weight (without stand)	3500 g
