Downdraft VentilatorsVIKING RANGE CORPORATION

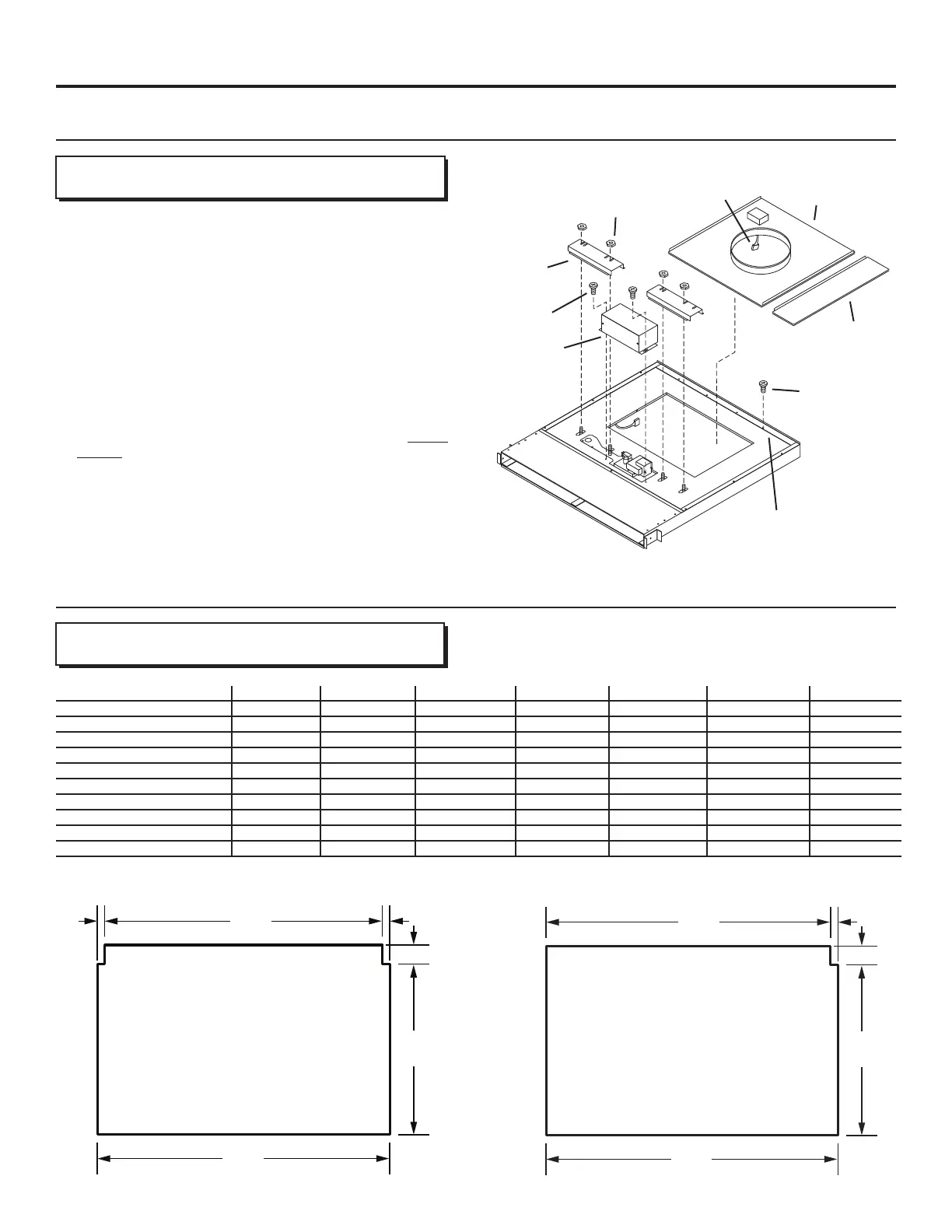

PREPARE THE DOWNDRAFT
Exterior Blower Installation
The downdraft is shipped without a blower. Purchase a Model
VEDV900 or VEDV1200 Exterior Blower and mount the 10" dis-
charge plate to the downdraft as follows:
1.
Place the downdraft on its back on a table of flat work surface.
2. Remove the 4 nuts and 2 clamp channels.
3. Remove 2 screws and the gear motor cover.
4. Carefully position the10" discharge plate under the bottom
flange of the downdraft.
5. Connect motor plug.
6. Replace the gear motor cover and 2 sheet metal screws.
7. Replace the 2 clamp channels and start the 4 nuts, do not
tighten.
8. Slide blower left of right to desired position. Use cover plate
(supplied) to close up any open space.
9. Tighten 4 nuts to secure top of blower. Use additional screws
(supplied) through bottom flange to secure bottom of discharge
plate.
NUTS
COVER
PLATE
CLAMP
CHANNELS
SCREWS
GEARMOTOR
COVER
MOTOR
PLUG
10" ROUND
DISCHARGE
PLATE
ADDITIONAL
SCREWS
BOTTOM
FLANGE
CUT COUNTERTOP OPENING
All Units
* Must use island trim. Rear countertop trim (supplied with island trim) will be used in this installation.
1. Measure and cut the countertop opening for your width of
cooktop and downdraft.
Cooktop Width & Model 30" VECU 36" VECU VGSU102 VGSU162 30" VGRT * 36" VGRT * 48" VGRT *
For use with Downdraft Models VIPR102SS VIPR162SS VIPR102SS VIPR162SS VIPR102RSS VIPR162RSS VIPR182RSS
VIPR102RSS VIPR162RSS VIPR102RSS VIPR162RSS
Cutout Dimensions A 28-3/4" 34-3/4" 28-1/16" 34-1/4" 30" 36" 48"
B 20-1/4" 20-1/4" 18-3/4" 18-3/4" 24" 24" 24"
C 27" 33" 27" 33" 27" 33" 45"
D 2-1/4" 2-1/4" 3" 3" 2-3/4" 2-3/4" 2-3/4"
E 7/8" 7/8" --- --- 1-1/2" 1-1/2" 1-1/2"
F 7/8" 7/8" 1-1/16" 1-1/4" 1-1/2" 1-1/2" 1-1/2"
A
C
B
D
F
E
A
C
B
D
F
VGSU102 & VGSU162
Cooktops ONLY.
