8

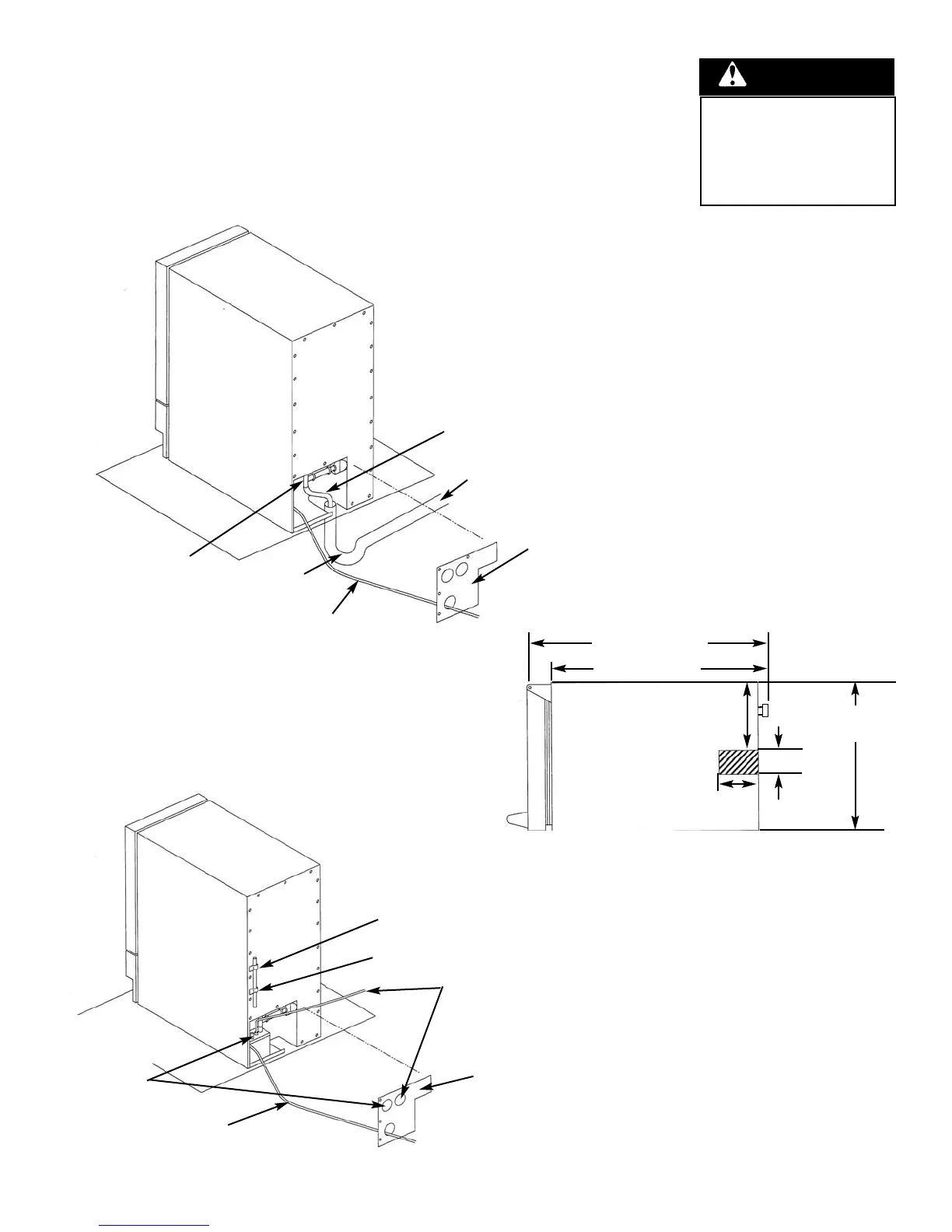

GRAVITY DRAIN
DRAIN PUMP
Model Number - VUIM-DP
((ssoolldd sseeppaarraatteellyy))
GRAVITY DRAIN LOCATION
5/8” (.63 cm) ID
drain tubing and
hose clamp
1 1/2” (3.8 cm)
drain pipe
Drain trap
(“p” trap)
Drain from
ice machine
Access
panel
Access
panel
ice machine power cord
Tubing clamps
Vent tube
Discharge tube
goes through this opening in the
access panel (See installation
instructions supplied with drain pump.)
Drain pump power cord
Vent tube -
goes through
this opening
in the access
panel
TToopp ooff
UUnniitt
FFrroonntt ooff
UUnniitt
22” (55.9 cm)
24 5/8” (62.6 cm)
2 3/8” (6.0 cm)
4 1/16”
(10.3 cm)
14 3/4”
(37.5 cm)
6 3/4”
(17.1 cm)
DRAIN PLUMBING
Your ice machine uses a gravity drain that requires 5/8” (.63 cm) ID tubing from the back of the
ice maker to a plumbed connection to a sanitary sewer (see Gravity Drain drawing below).
Remove the access panel, with a 5/16” (0.8 cm) wrench to plumb in drain connection. Gravity
drain location for built-in units can be within the area shown in illustration below. An optional
drain pump can be purchased for your ice machine if a gravity drain is not accessible.
Observe and follow all local codes when installing an ice machine.
FFaaiilluurree ttoo uussee aaddeeqquuaattee
ddrraaiinnaaggee ssyysstteemm wwiillll rreessuulltt
iinn ssuurrrroouunnddiinngg wwaatteerr
ddaammaaggee aanndd//oorr ppoooorr iiccee
pprrood
duuccttiioonn..
WARNING
