Specifications and Installation
Nominal Power: 12 Watts
Impedance: 8 Ohms
Dimensions: 127mm (5”) diameter
Shipping Weight: .68 kg (1.5 lbs)
Environmental: 5% to 95% non-condens-
ing humidity
Frequency Response: 600 Hz to 7000 Hz
Installation: The 25AE paging horn is de-
signed to be surface mounted to any rigid
surface.

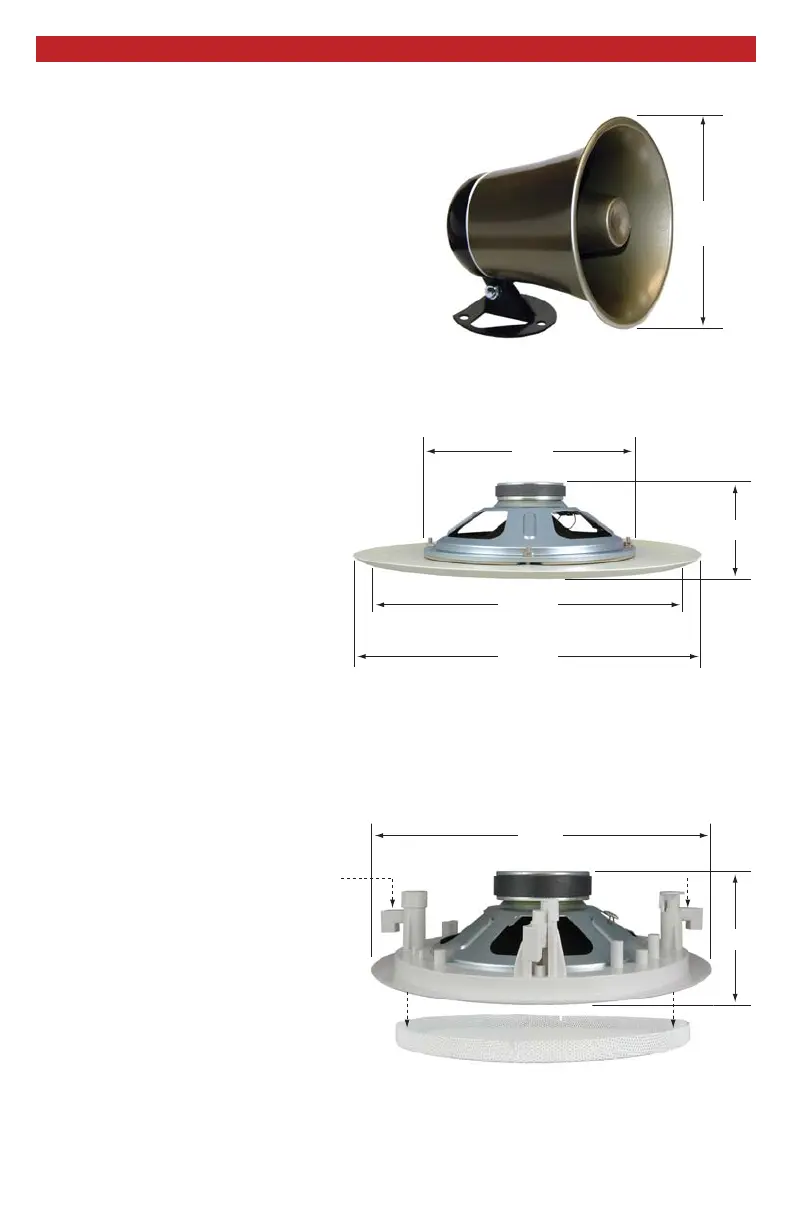

A. 25AE Paging Horn
Nominal Power: 6 Watts
Impedance: 8 Ohms
Dimensions: 324mm x 95mm
(12.75” x 3.75”)
Shipping Weight: 1.36 kg (3 lbs)
Environmental: 5% to 95% non-
condensing humidity
Frequency Response: 85 Hz to
15,000 Hz
Installation: Mounting hardware for
the 30AE and 35AE ceiling speakers
is included for easy installation in
drop ceilings or speaker enclosures.
Flush mount into an 8.25” to 10.0” di-
ameter hole.
B. 30AE/35AE Ceiling Speaker
12.75"
overall diameter
11.25"
between mounting holes
8.1"
speaker diameter
2.75"
Nominal Power: 15 Watts
Impedance: 8 Ohms
Dimensions: 270mm x
90mm (10.6” x 3.6”)
Shipping Weight: 1.36 kg
(3 lbs)
Environmental: 5% to 95%
non-condensing humidity
Frequency Response: 85
Hz to 15,000 Hz
B. 40AE Ceiling Speaker
10.6"
overall diameter
3.6"
Push
Installation: The 40AE has an integral
mounting system that requires only a
phillips screw driver to quickly flush mount
the speaker into a 9.5” to 10” diameter hole.
Before mounting the 40AE speaker, push the four mounting brackets to pop off the grill as shown in
the diagram.
