REFRIGERATION
Quiet Cool™ Built-In 48”W. Side-By-Side
Refrigerator/Freezer
Door
Wall
1-13/16”
(
4.6 cm)
space if 24” standard
cabinet depth is used
3/4”
(1.9 cm)
full end panel
24”
(61.0 cm)
standard
cabinet
depth
2-1/2”
(6.4 cm) offset
5/16”
(0.8 cm)
1-13/16”
(
4.6 cm)
s
pace if 24” standard
c
abinet depth is used
Door
2
4”
(61.0 cm)
standard cabinet depth
W
all
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
C
ountertop
o
verhang

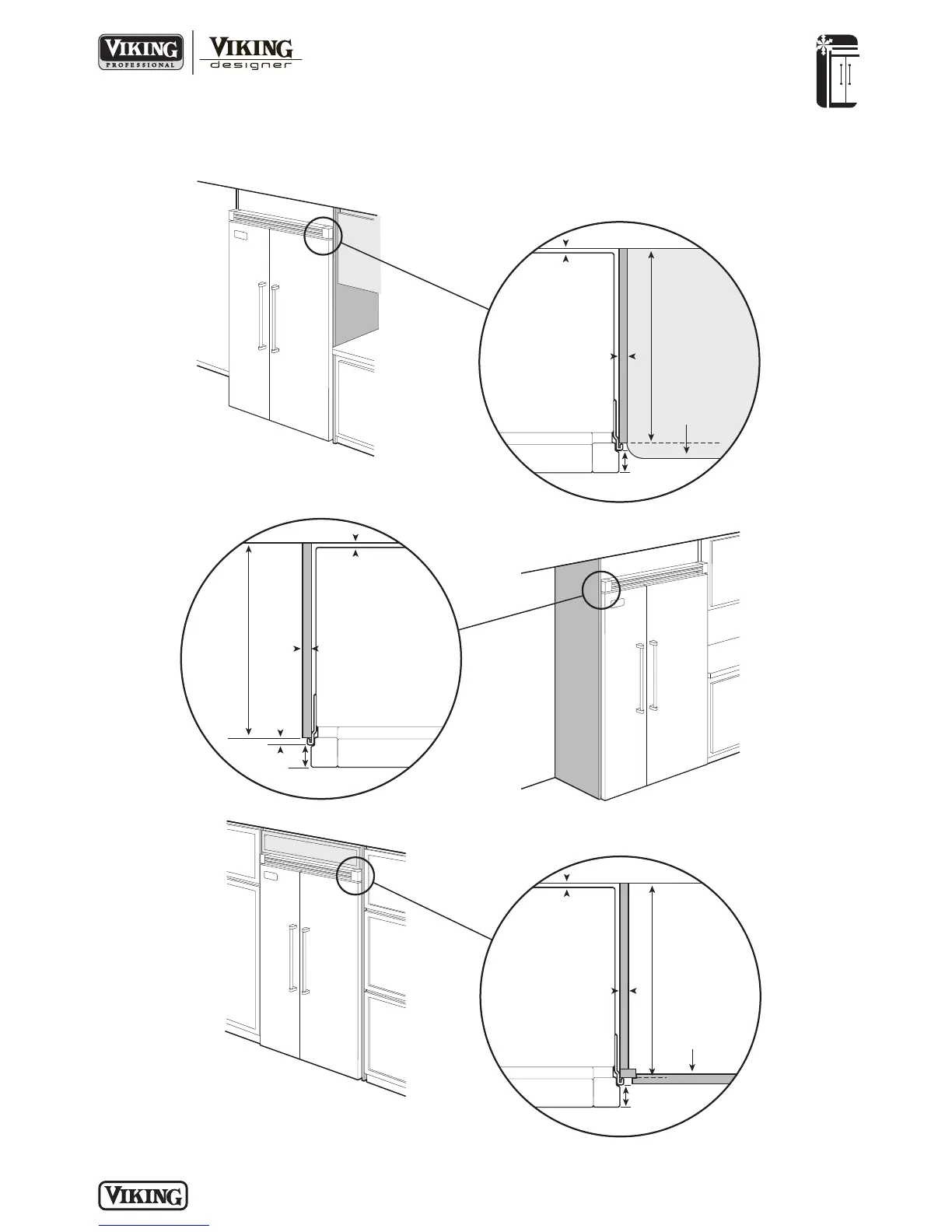

Dimensions & Specifications
CLEARANCE DIMENSIONS —PROFESSIONAL
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Partial overlay
cabinet door
TOP VIEW
TOP VIEW
TOP VIEW
