8

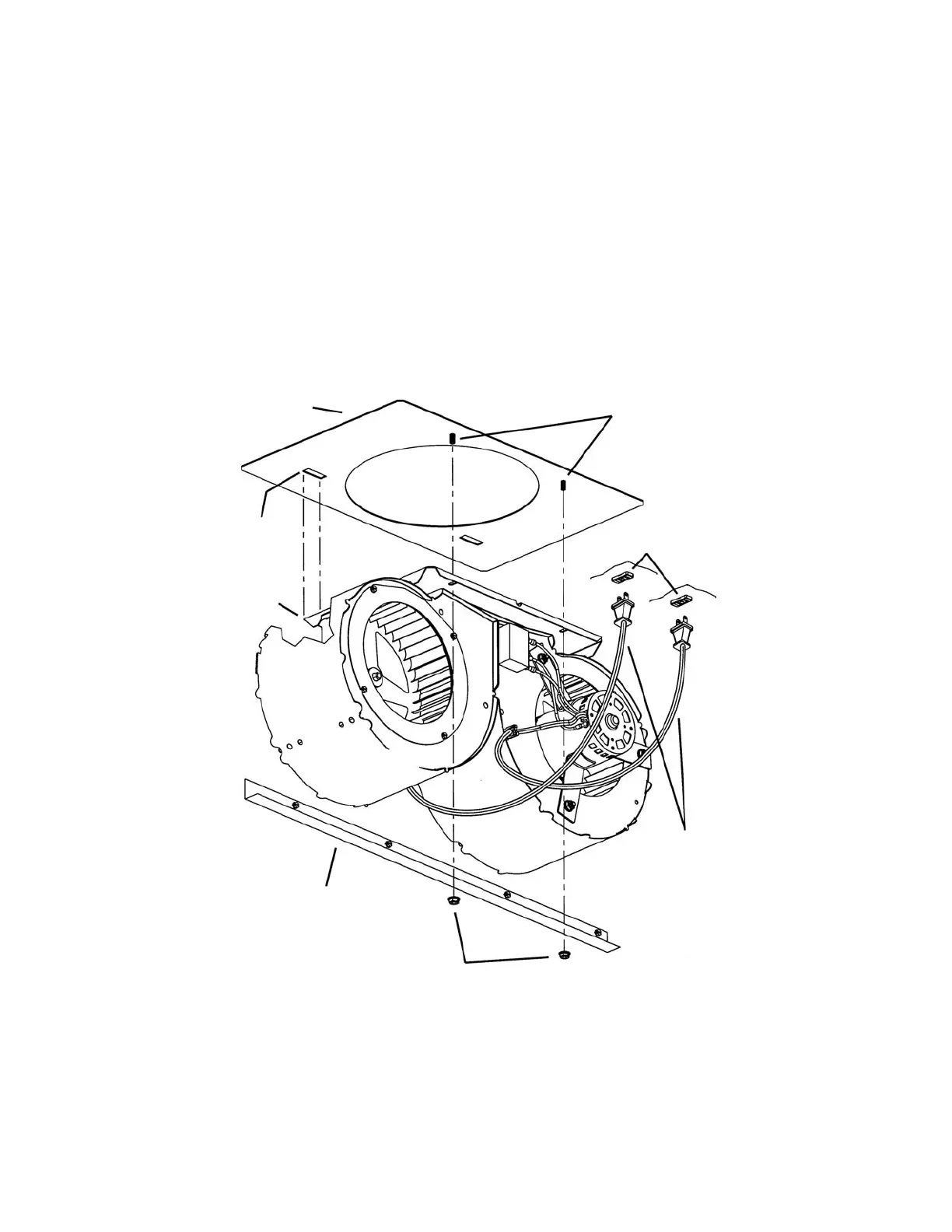

VENTILATOR KIT INSTALLATION
DIV1200
(ALSO SEE INSTRUCTIONS SUPPLIED WITH VENTILATOR KIT)
1. Remove REAR FILTER RAIL from hood.
2. Lift VENTILATOR into position inside the hood.
3. Engage two (2) TABS on ventilator into two (2) SLOTS in TOP OF HOOD. Secure ventilator to THREADED STUDS with
two (2) HEX NUTS (provided).
4. Plug ventilator's POWER CORDS into RECEPTACLES inside the hood.
5. Replace rear filter rail.
6. Fasten the provided plate with #10 x 1/2” sheet metal screws to cover electrical box opening.
TThhrreeaaddeedd
SSttuuddss
TToopp ooff
HHoooodd
RReecceeppttaacclleess
PPoowweerr CCoorrddss
VVeennttiillaattoorr
HHeexx nnuuttss
SSlloott
TTaabb
