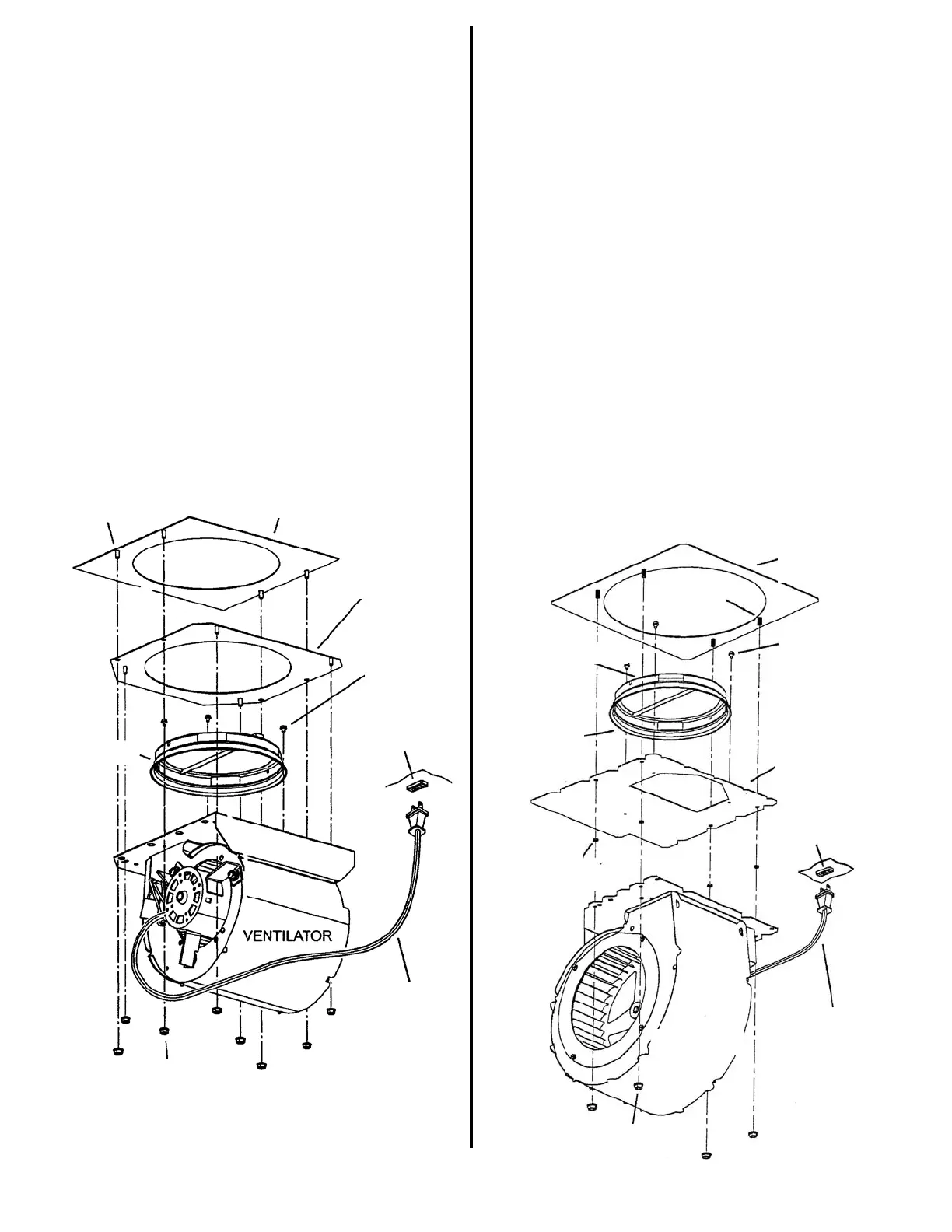

VENTILATOR KIT INSTALLATION
DIV600
(Also see instructions supplied with ventilator kit)
1. Choose the correct VENTILATOR MOUNTING PLATE
for your hood series.
2. Attach DAMPER to VENTILATOR, as shown, using three (3)
HEX SCREWS (provided). NOTE: Damper flange to be
captured by screw heads.
3. Slide mounting plate/damper assembly into hood and onto
four (4) THREADED STUDS, as shown. Slide four (4)
NEOPRENE WASHERS onto threaded studs to temporaily
hold plate to hood.
4. Rotate ventilator 90 degrees and lift ventilator into position
inside the hood.
5. Rotate ventilator back to orientation shown.
6. Fasten ventilator to four (4) THREADED STUDS, using four
(4) HEX NUTS (provided).
7. Plug ventilator's POWER CORD into RECEPTACLE inside
the hood.
VENTILATOR KIT INSTALLATION
DIV300
(Also see instructions supplied with ventilator kit)
1. Attach DAMPER to VENTILATOR, as shown, using
three (3) HEX SCREWS (provided). NOTE: Damper
flange to be captured by screw heads.
2. Attach VENTILATOR to (4) THREADED STUDS on
MOUNTING PLATE using (4) HEX NUTS (provided).
3. Lift ventilator into position inside the hood.
4. Fasten ventilator to four (4) THREADED STUDS<
using four (4) HEX NUTS (provided).
5. Plug ventilator’s POWER CORD into RECEPTACLE
inside the hood.
