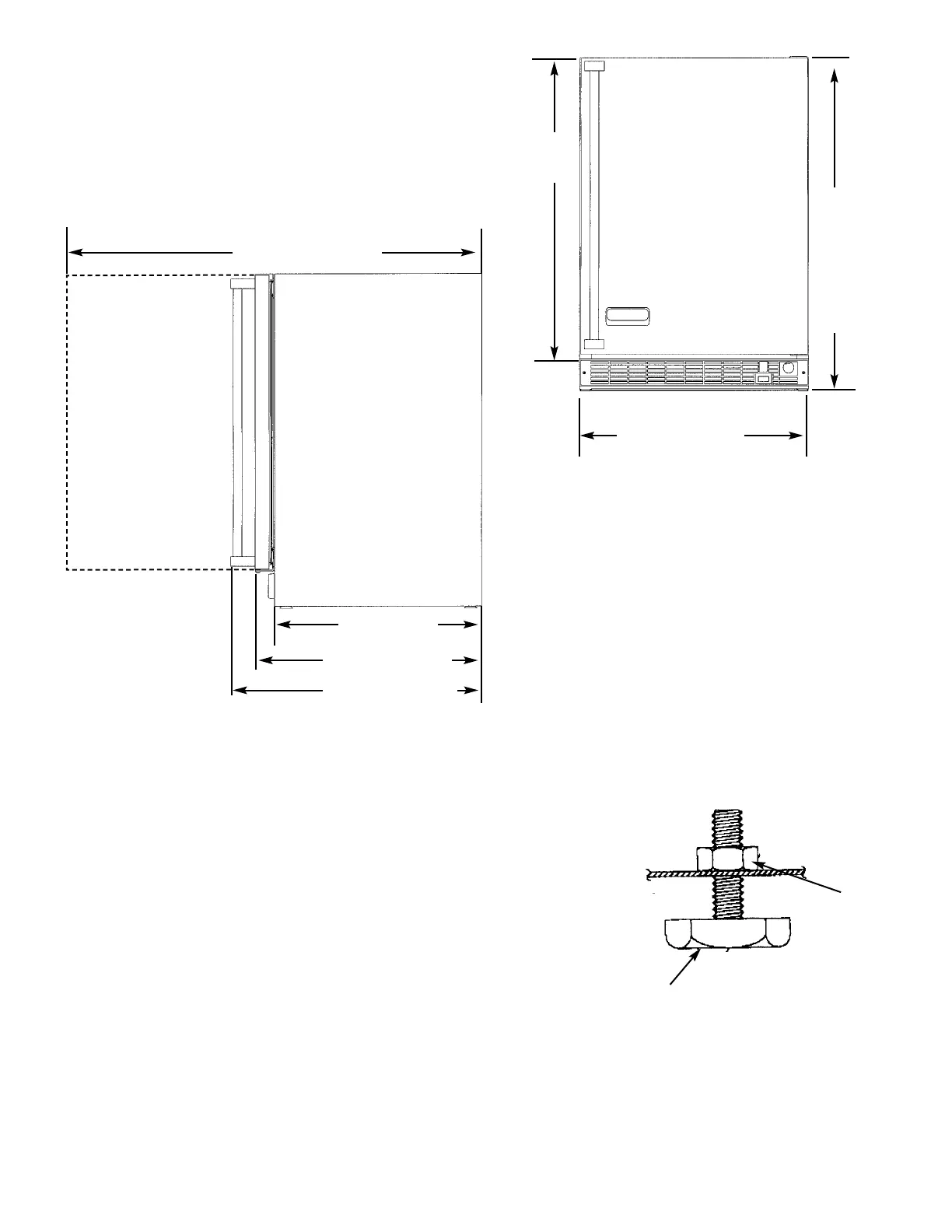

SPECIFICATIONS/DIMENSIONS
BBaassiicc EElleeccttrriicc DDaattaa
•115 VAC/60 Hz
•Maximum amps - 3.3
•Approximate Shipping Weight - 140 lbs. (63.2 kg)
Min. 34”
(86.4 cm)
Max 35”
(88.9 cm)
with
leveling
legs fully
extended
30 3/4”
(78.1 cm)
23 7/8” (60.6 cm)
47 1/4” (120.0 cm)
22” (55.9 cm)
24 3/8” 61.9 cm)
26 7/8” (68.3 cm)
LEG LEVELER INSTALLATION
RReeaadd BBeeffoorree IInnssttaalllliinngg LLeegg LLeevveelleerrss
WWAARRNNIINNGG::
Do not lay unit on top, side, back, or front. If unit is accidentally laid
in any position other than right side up, then the unit must remain in the right side
up position for at least 24 hours before plugging the unit in.
1. Tip unit backwards so there is one foot of clearance on front of the unit. Have
someone to assist you in tilting the unit to prevent it from falling on you while
installing the leg levelers.
2. Screw front two (2) leg levelers into the weldnuts. Leg levelers should be
screwed in until snug.
3. Repeat steps 1 & 2 with the exception of tipping the unit forwards to screw in
the back two leg levelers.
4. The leg levelers are now installed.
5. The unit should be level from front to back and side to side. If floor conditions
do not allow the unit to sit level, adjust the leg leveler by turning the required
leg leveler counter-clockwise to increase the height and clockwise to reduce
the height.
LLeegg LLeevveelleerr
((44)) ppeerr uunniitt
WWeellddnnuutt
((EEaacchh bboottttoomm
ccoorrnneerr ooff uunniitt))
