10

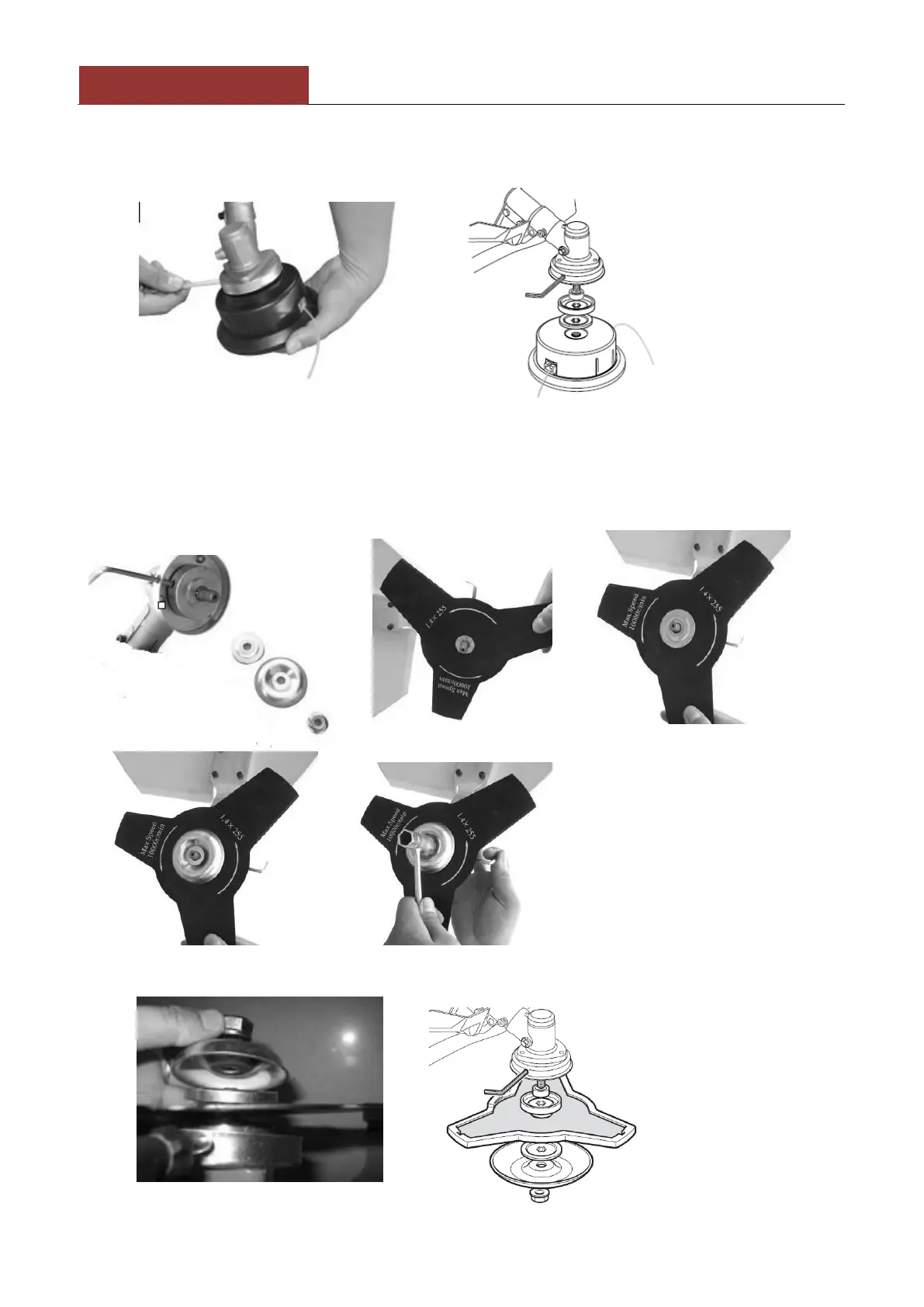

Release the Nylon cutting head. Use screw driver to hold flange and then rotate the Nylon
cutting head clockwise, it will be replaced.
4.3 Fit the blade. Take the outer flange off after release the nut, then put the blade, outer flange,
shield and nut according to priority as below picture. Note the blade rotation direction needs be
same as below picture. Use screw driver to hold flange and tighten nut counter-clockwise, ensure
the nut is tightened enough.
Release blade. Use screw driver to hold flange and release nut, the blade can be took off.
