29
41002 - 41005
Notes:
• The procedure will affect all the indoor stations and not just the one used for the definition of the association, and it
also includes any reception switchboards (for a total of 204 devices). If the entrance panel is installed on a horizontal
Bus, the procedure will affect all the indoor stations in the window (first ID - last ID) managed by the entrance panel
itself.
• The procedure for the association of the lock with the secondary outdoor station described above can be repeated for
a maximum of 8 main external units. Once this limit has been reached, the attempt at defining another association will
fail and a tone will signal the error. Nevertheless, deleting the programming is possible, as described above.
• The outdoor station does not exit the configuration and does not go into busy mode if in the meantime the bus is used
by a communication which has priority for the same outdoor unit; the red LEDs signal that the bus is not available and
configuration continues.

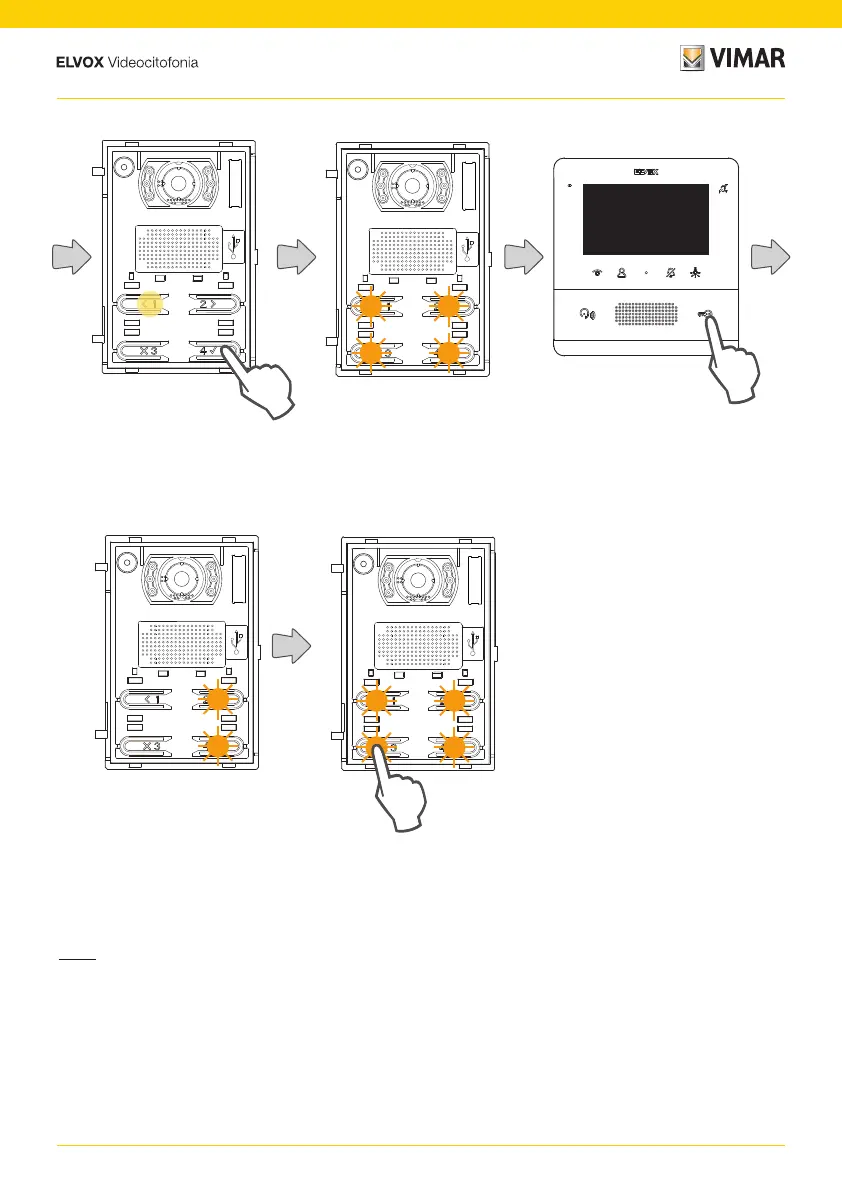

< 3m
Press to start the common
lock assignment procedure
Press the lock button on any
indoor station called previously.
beep
During configuration, the
push button LEDs flash
The saving of the main external
unit on the secondary one, i.e. the
association of the two locks, is
confirmed by a (brief) confirmation
tone.
If the configuration has already
been acquired, the outdoor station
emits a different (long) tone.
beep
Press to exit. Alternatively,
the outdoor station
completes the procedure
with a 3 minute timeout.
