Description of Keypad and Terminal Board:
+ positive power supply (11V DC provided by power supply 6582)
- negative power supply
C1 power relay contact input (output 1)
A1 power relay contact output (output 1)
OC open collector output to pilot possible external relay (output 2)
green Led (lit to confirm code)
red Led (lit to indicate code error)
0-9: Keys for entry of codes
R: Key to cancel operation
C: Key to confirm code
Programming
Output activation CODE programming procedure:
1. Press R and key 5 at the same time until the green and red leds illumi-
nate alternately
2. Enter the Password (123 by default) within 10 seconds.
3. Press “C”, with intermittent and simultaneous activation of the green
and red leds.
4. Enter the number of the output to be activated (1 = output 1; 2 = output
2; 3 = output 1 and 2)
5. Press “C”
6. Enter the code to be programmed
7. Press “C”
To program other codes, repeat the operation from point 1.
The maximum time for the phases from 4 to 7 is 60 seconds.
PASSWORD ( max 8 digits) programming procedure:
1. Press R and key 1 at the same time until the green and red leds illumi-
nate alternately
2. Enter the previous password within 10 seconds.
3. Press “C”, with intermittent and simultaneous activation of the green
and red leds.
4. Enter the new password within 10 seconds.
5. Press “C”
OUTPUT 1 activation TIME programming procedure:
1. Press R and key 3 at the same time until the green and red leds illumi-
nate alternately
2. Enter the Password (123 by default) within 10 seconds.
3. Press “C”, with intermittent and simultaneous activation of the green
and red leds.
4. Enter the activation time in seconds (max 9999 seconds)
5. Press “C”
The maximum time for the phases from 4 to 5 is 60 seconds.
OUTPUT 2 activation TIME programming procedure:
1. Press R and key 4 at the same time until the green and red leds illumi-
nate alternately
2. Enter the Password (123 by default) within 10 seconds.
3. Press “C”, with intermittent and simultaneous activation of the green
and red leds.
4. Enter the activation time in seconds (max 9999 seconds)
5. Press “C”
The maximum time for the phases from 4 to 5 is 60 seconds.
Programming procedure for the “DEVICE OPERATION”
1 Press R and push-button 6 at the same time.
2 Dial the Password (default value: 123) within 10 seconds
3 Press “C”
4 Dial the number according to table 1
5 Press push-button “C”
Table 1. Operation programming (* default value).
Relay output 1 Relay output 2 Number to be program-
med
Timed Timed 1*
Timed On/Off 2
On / Off Timed 3
On / Off On / Off 4
The maximum time for phases 4 and 5 is of 60 seconds.
Procedure for DELETING 1 code:
1. Press R and key 2 at the same time until the green and red leds illumi-
nate alternately
2. Enter the Password (123 by default) within 10 seconds.
3. Press “C”, with intermittent and simultaneous activation of the green
and red leds.
4. Enter the code to be deleted
5. Press “C”
To program other codes, repeat the operation from point 1. The maximum
time for the phases from 4 to 5 is 60 seconds.
Procedure for DELETING ALL codes:
1. Press R and key 2 at the same time until the green and red leds illumi-
nate alternately
2. Enter the Password (123 by default) within 10 seconds.
3. Press “C”, with intermittent and simultaneous activation of the green
and red leds.
4. Press and hold R + 2 for 10 seconds (the keypad flashes)
The maximum time for phase 4 is 60 seconds.
Enter Programming mode WITHOUT PASSWORD:
1. Wire in a jumper on the two PIN_P contacts at the back of the terminal
board (Fig. 2)
2. Pres R and key 7 (simultaneously until the red led starts flashing)
3. Press the key combination for programming as described in step 1 of
the above procedures
(e.g. R + 5 to program an output)
4. Press C without entering the password
5. Follow the above-described procedures from step 4 onwards.
6. Remove the jumper from the two PIN_P contacts at the end of pro-
gramming.

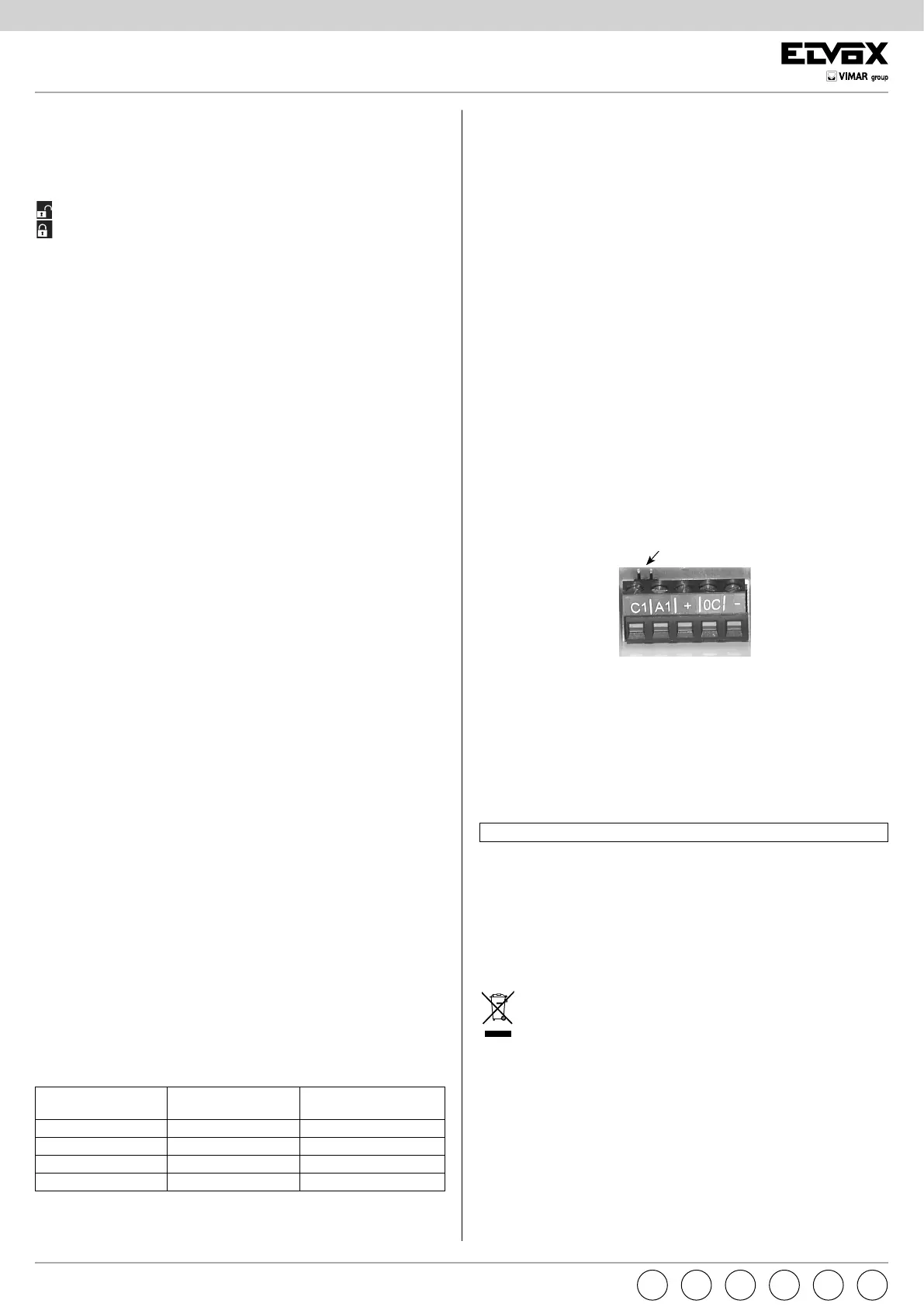

Fig. 2
Pin_P
Example: programming of activation of output 1 with number 11223344 for
six seconds
Press R and key 5 at the same time, enter the password and press C, press
key 1 and then C, enter the number 11223344 and then press C. Press R
and key 3 at the same time, enter the password and press C, press key 6
and then C.
INFORMATION FOR USERS UNDER DIRECTIVE 2002/96
(WEEE)
In order to avoid damage to the environment and human health as
well as any administrative sanctions, any appliance marked with
this symbol must be disposed of separately from municipal waste, that is it
must be reconsigned to the dealer upon purchase of a new one. Applianc-
es marked with the crossed out wheelie bin symbol must be collected in
accordance with the instructions issued by the local authorities responsible
for waste disposal.
INSTALLATION RULES.
Installation should be carried out observing current installation regulations
for electrical systems in the Country where the products are installed.
CONFORMITY.
EMC directive
Standards EN 61000-6-1, EN 61000-6-3.
The instruction manual is downloadable from the site www.vimar.com
