Page #9 background imageLoading...
Page #9 background image
PRI
-+U+I
PRI
B22
1
B1
21
B2
B1
CA+
CA-
S-
S+
E-
E+
41005UP
41019UP
41018UP
41030UP
NC
C
NO
CA-
CA+
NC
C
NO
OUT2 OUT1
Video entryphone/entryphone riser
Mains
Mains
F
6922.1
F1
6923
P
L
X
D
Note: If the distance between the additional power supply unit 6923 and the power supply is more than 3m, use the lter code 41021 installed
near the audio/video module and inside the box”.
Caution: observe the correct polarity when connecting.
D - Audio-video entrance panel with display and keyboard 40404
F - System power supply unit 6922.1
F1 - Additional power supply unit 6923
P - Electric lock
L - Additional lock control button
X - Twisted cable 732H.E, 732I.E
9
EN
PIXEL UP: 40404 - 40424

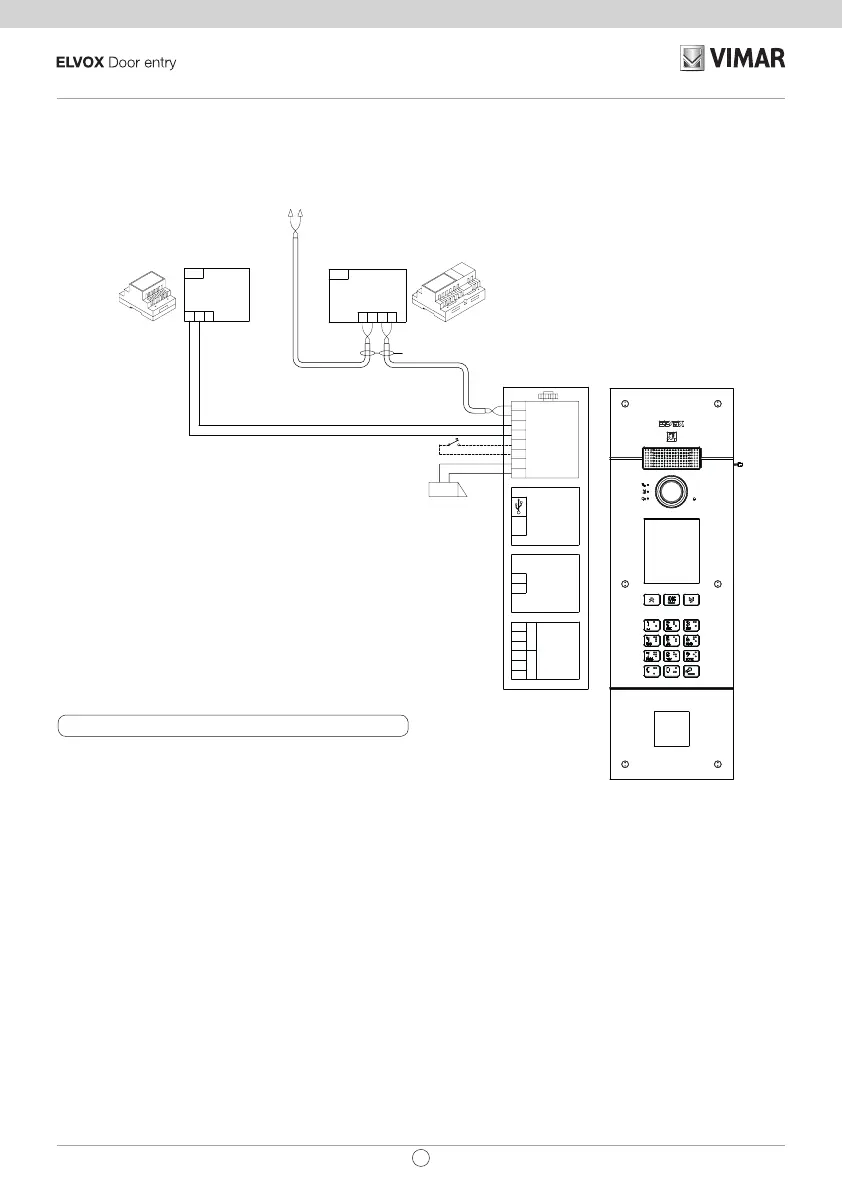

1.4.1 Version of wiring additional power supply with power supply unit 6923
