14. AUDIO OUTPUTS:
analogue audio signal outputs
Either one of the RCA connector pairs or the XLR
sockets are connected to the relevant input of the
amplifier, preamplifier etc. It is not necessary to
also connect one of the digital signal outputs (15).
15. DIGITAL OUTPUT COAXIAL
If the amplifier, receiver or preamplifier is equip-
ped with a coaxial digital input connector, the
relevant CD player signal output may be connec-
ted to this. It is not necessary to connect an ana-
logue (14) and a digital signal output (15) at the
same time.
16. FUSE: Fuse holder
This small plastic housing holds the fuse. Refer to
the security precautions.
17. AC: Power Connector
To establish the power supply, connect the plugs
of the power cable to the device and to a suitab-
le wall outlet.

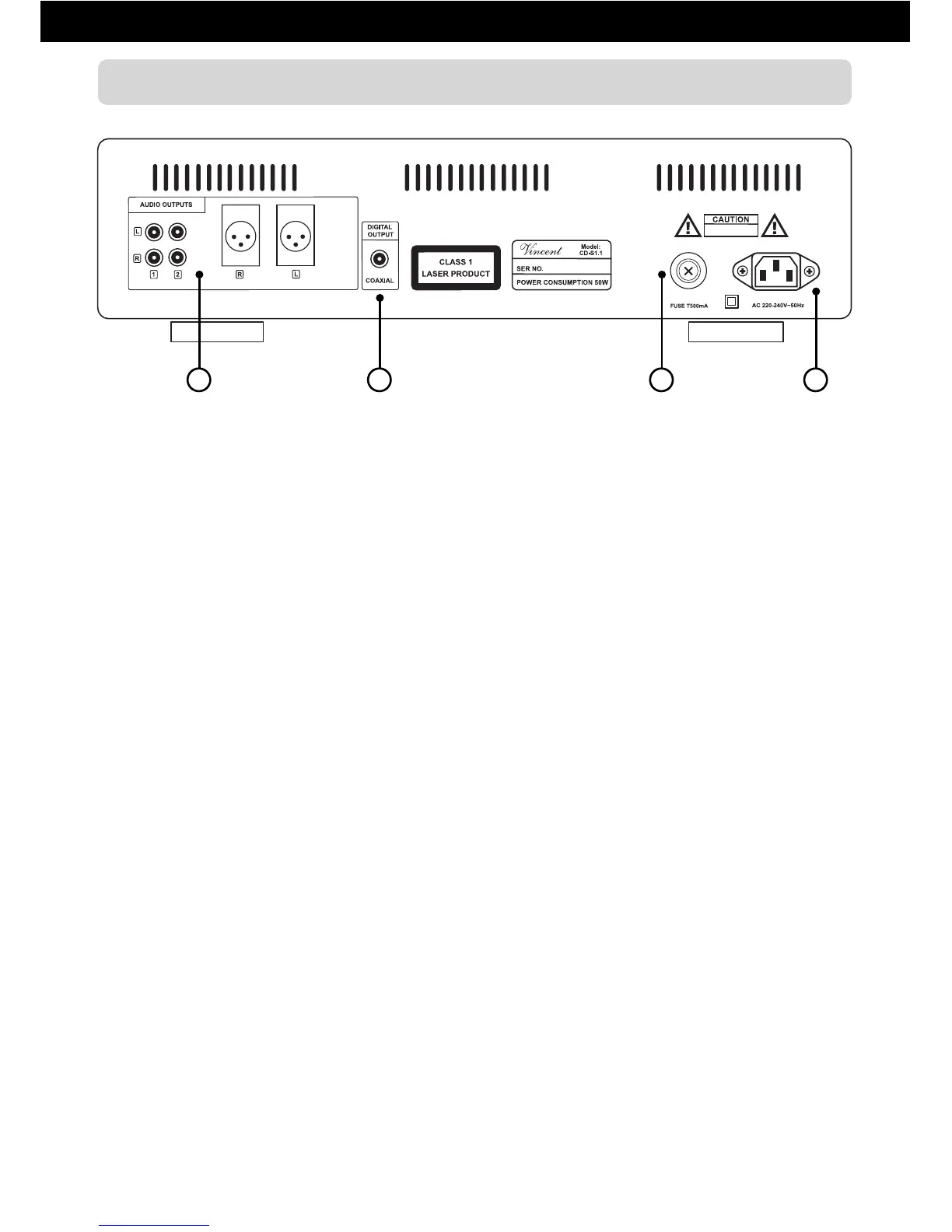

REAR VIEW
14 15 1716
