28
Vincent
14. AUDIO OUTPUTS:
analogue audio signal outputs
Either the RCA or the XLR sockets are connected
to the relevant input of the amplifier, preamplifier
etc. It is not necessary to also connect the digital
signal output (16).
15. DIGITAL OUT COAXIAL:
digital audio signal output
If the amplifier, receiver or preamplifier is equip-
ped with a digital coaxial input connector, the
relevant CD player signal output may be connec-
ted to this. It is not necessary to connect an ana-
logue (15) and a digital signal output (16) at the
same time.
16. LAMP: Dimmer for the tube illumination
The setting of this switch affects the brightness of
the illumination of the tube display window (2).
17. POWER CONTROL (12V): ON/OFF control
These jack connectors (3.5 mm) receive and for-
ward the signal for the standby control (12V
Trigger).
18. AC: Power Connector
To establish the power supply, connect the plugs
of the power cable to the device and to a suitab-
le wall outlet.
This small plastic housing holds the fuse. Refer to
the security precautions.

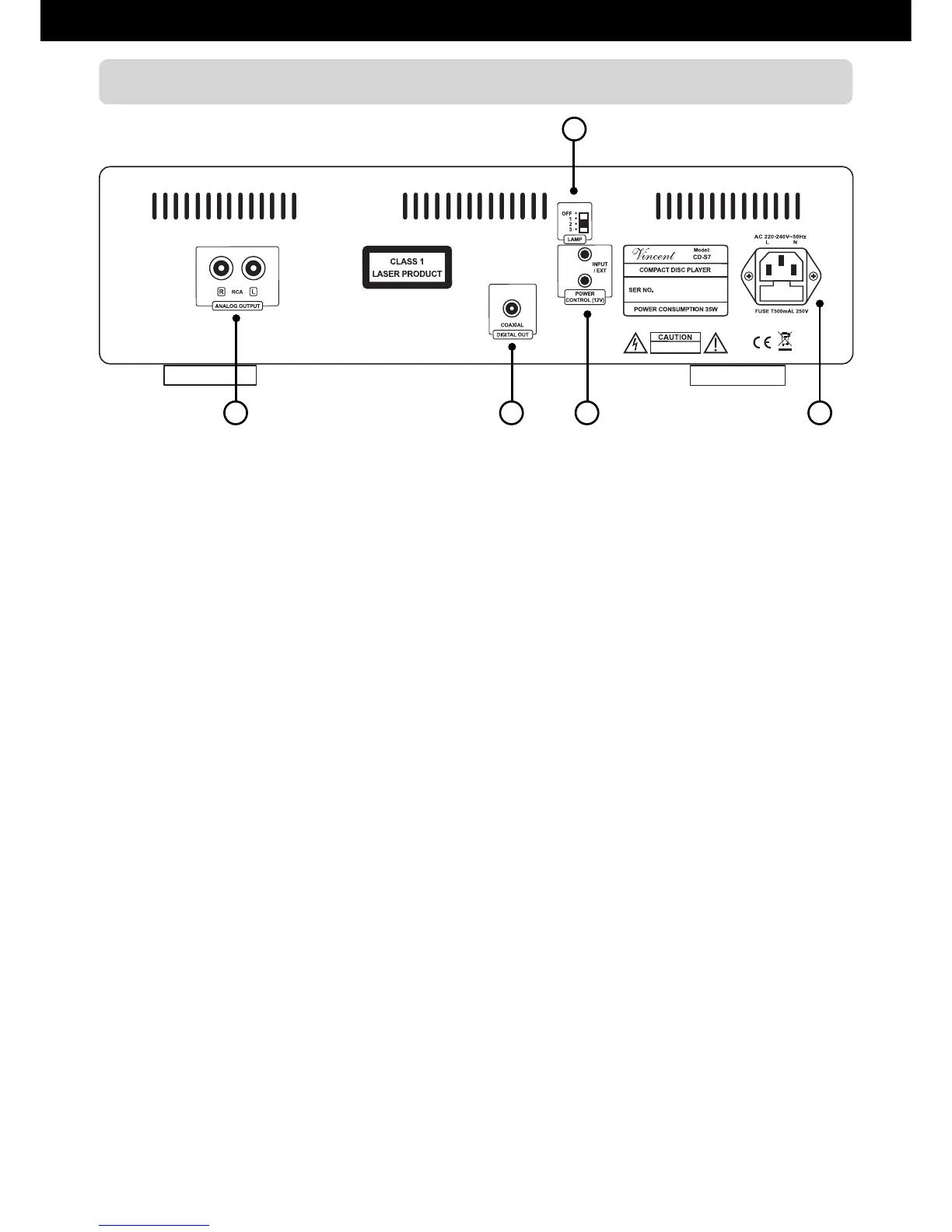

REAR VIEW
14
17
15 18
16
