ASSEBMLY STEPS
13
STEP 6
G
G
G
H
H
H
H
Gx4
Hx4
H
G
3x16mm

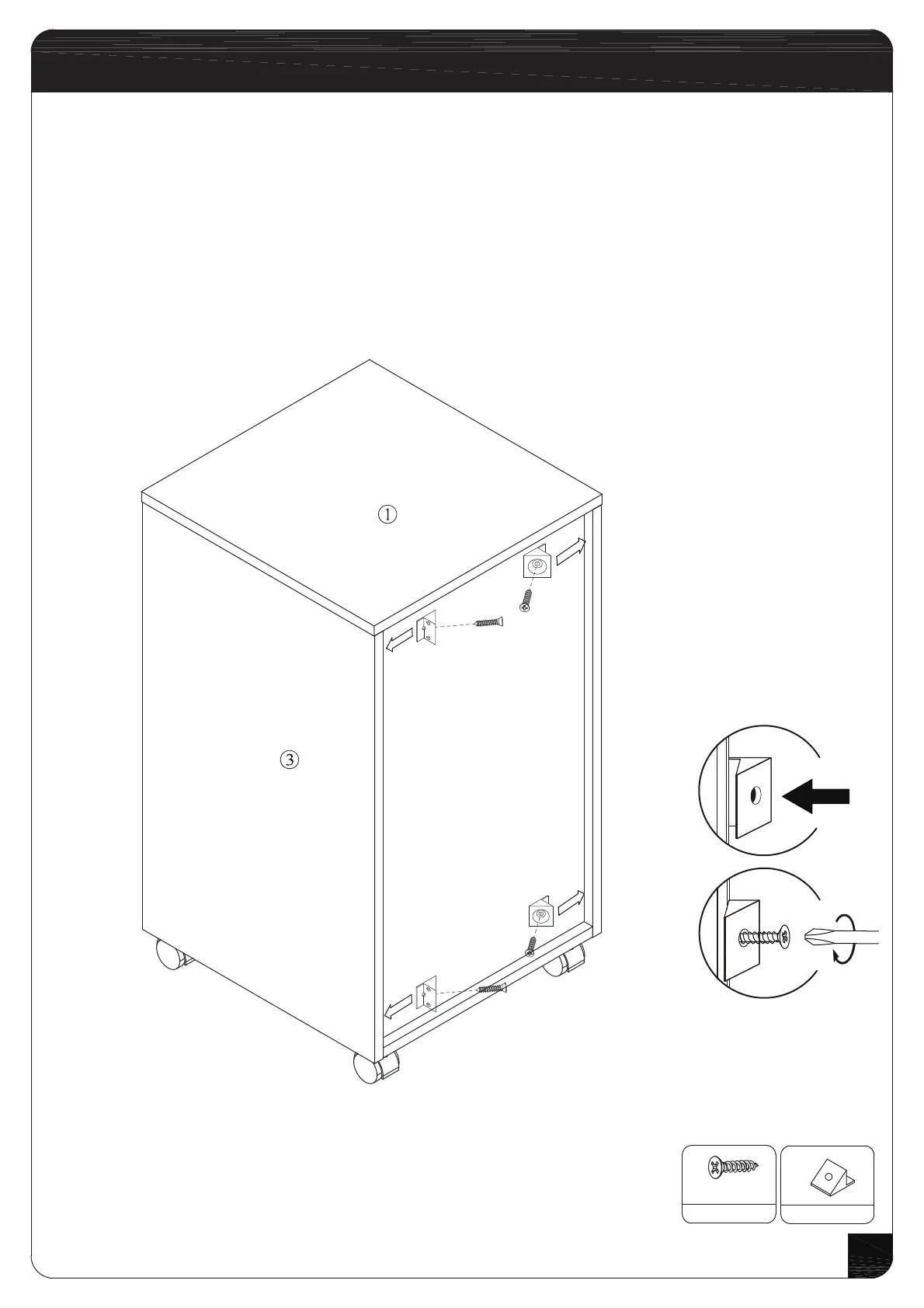

Fix the Mending Wedge(H) with Screw(G) as picture shows for
more stability
