9

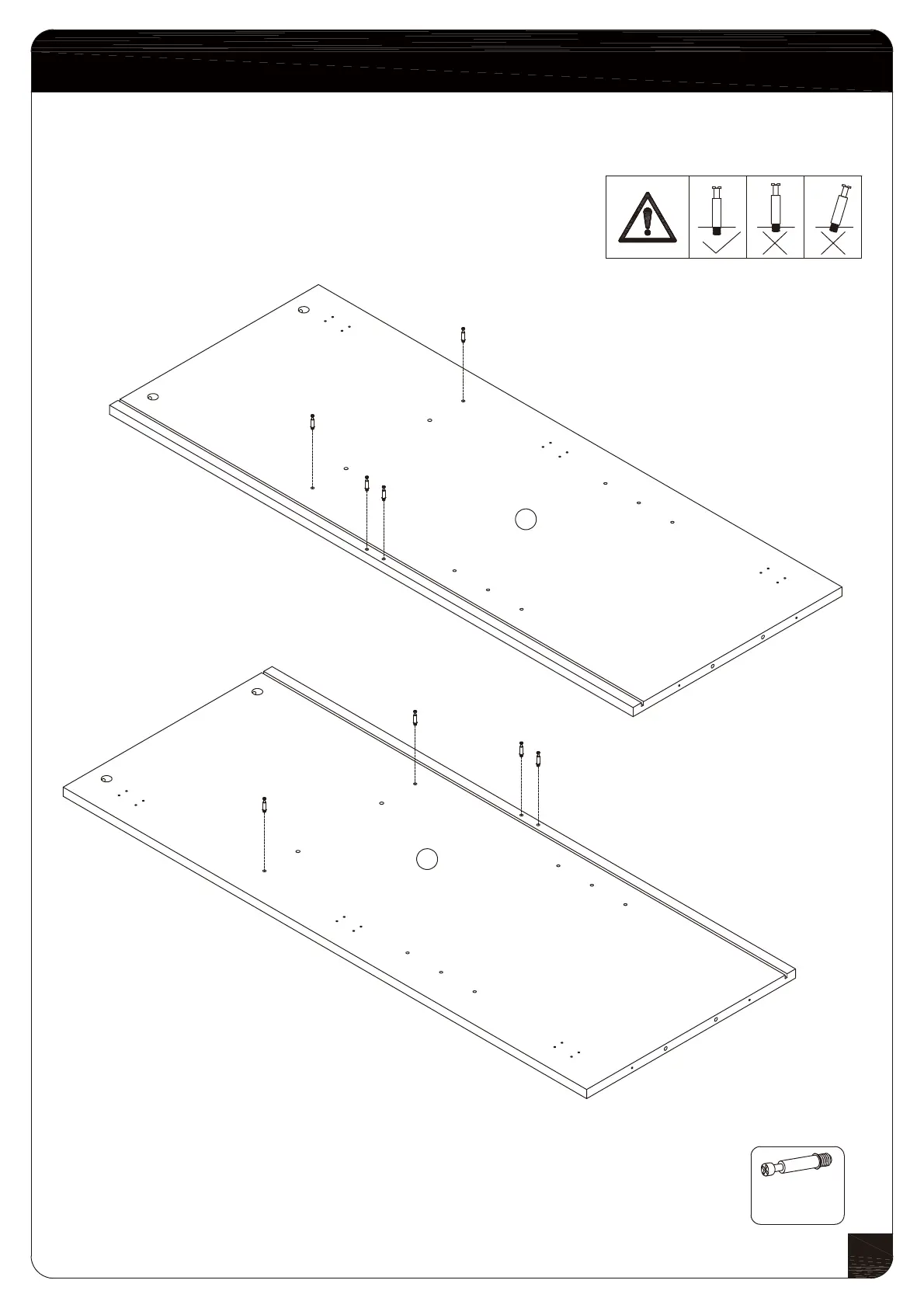

ASSEMBLY STEPS
STEP 2
4
5
A
A
A
A
A
A
A
A
Ax8
6x35mm
Screw the cam bolt (A) onto the panels # 4 and # 5
