ASSEMBLY STEPS
STEP 9
16
11
12
Hx6
J-1
Jx2
3.5x12mm
J-1
J-1
H
H
H
H
H
H
A
A
A
A
Ax4
6x35mm

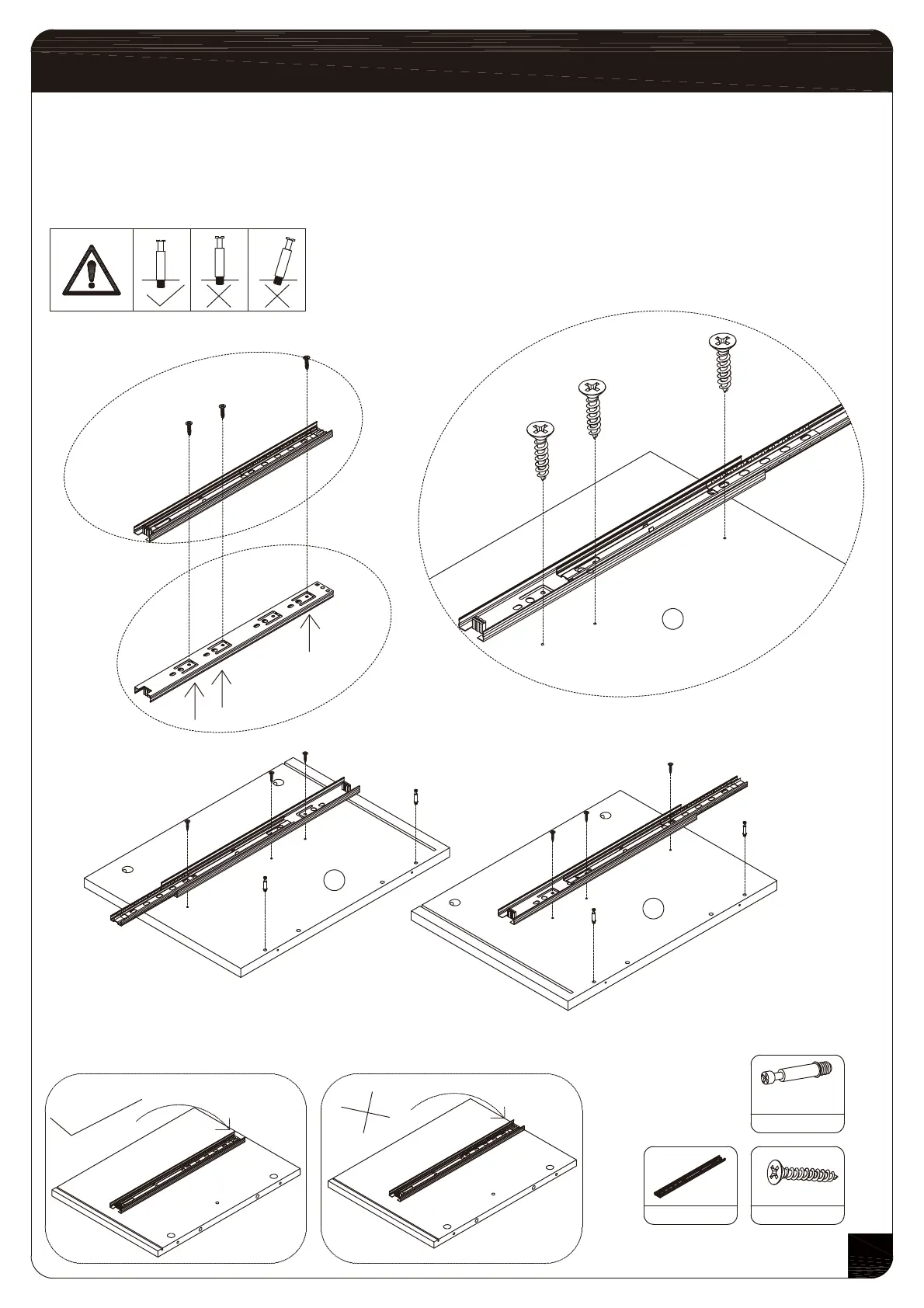

Attach the drawer slides to Panel #11 #12 with Screw(H)
Kind Tips: The pre-drilled holes for locating the drawer slides are
relatively small, look carefully. Please don't worry, they are there
Screw the Cam Bolt (A) onto Panel #11 #12
J-1
H
H
H
Front View
Back View
J-1
J-1
H
H
H
12
