Assembly Instruction

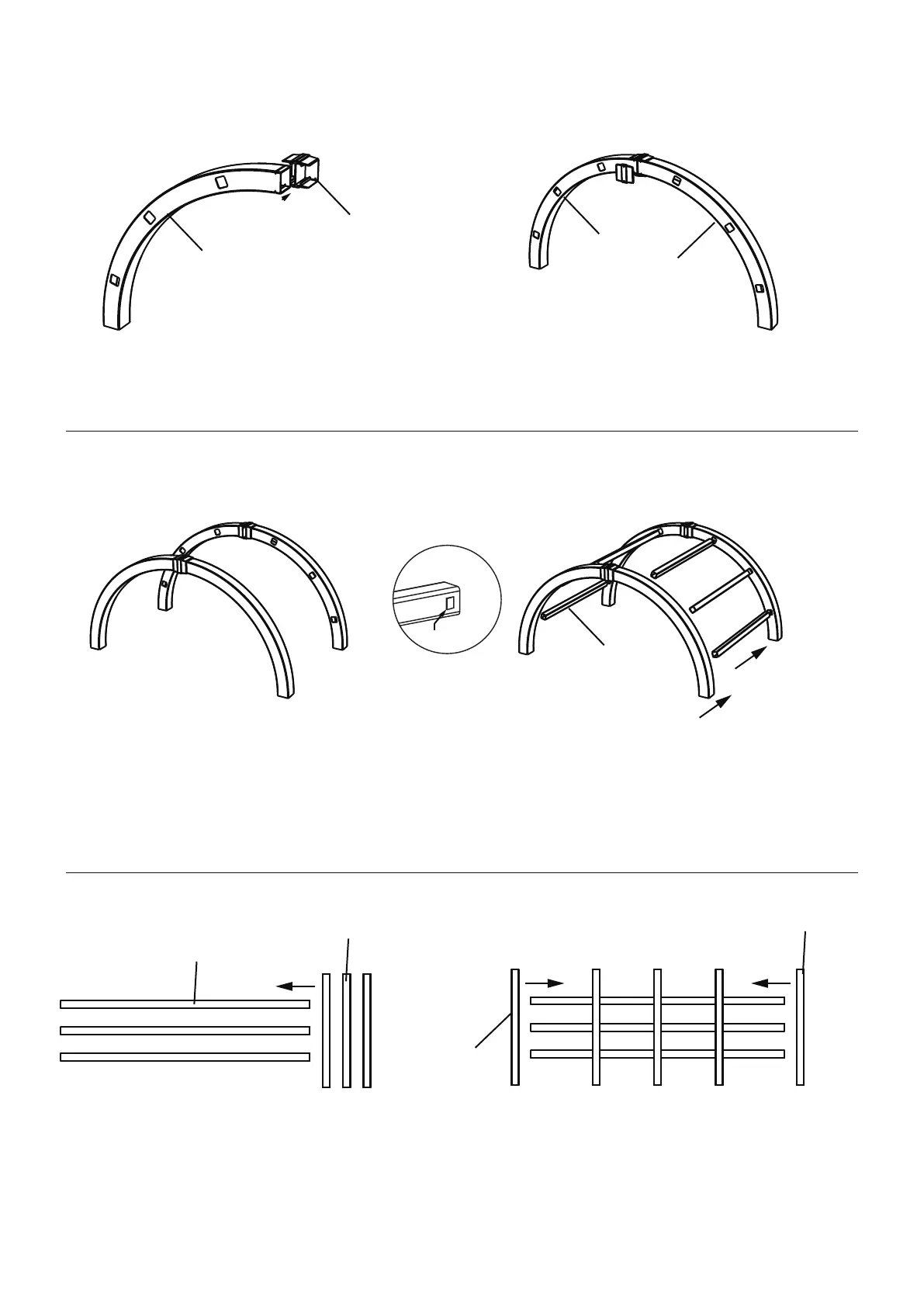

Step 1
Slide one of the Arch sections into the
Top Connection
Step 2
Step 3
Step 5 Step 6
Step 4
Slide second Arch section into the Top
Connection then put the Connection
cover. Use screw,to fix the Connection.
Repeat this process for the second arch. They
should look as shown above.
Insert (3) 1 1/2”x2/5“ Picket into (3) 1
1/2” x7/8”Corss Member (With double
side holes)
Insert (3) 1 1/2”x2/5“ Picket into (2) 1
1/2” x7/8”Corss Member (With single
side holes)
Insert (6) 1 1/2” x7/8”Corss Member
into one of the assembled Arches.
Place the second Arch assembley against
the opposite end of the Cross Bars and
install them one at a time until both Arch
halves are fully together.
Notch
A
C
B
A
H
E
J
I
I
To Next Page
