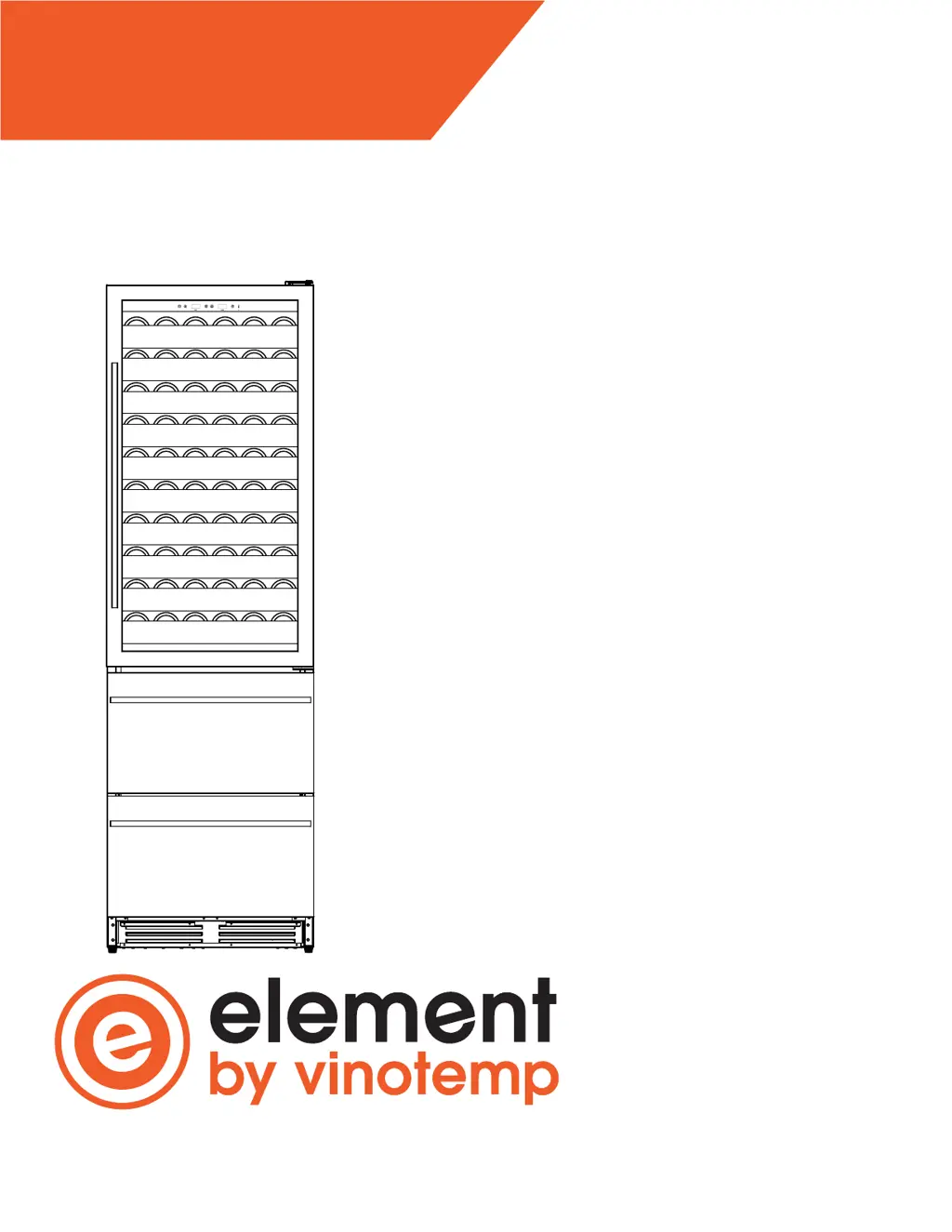

OWNER’S MANUAL
A PROUD HERITAGE OF EXPERIENCE & QUALITY
EL-BWC108-SS
STAINLESS STEEL
WINE & BEVERAGE COOLER
732 South Racetrack Road, Henderson, NV 89015 | 1.800.777.8466 | info@vinotemp.com | www.vinotemp.com

Questions and Answers

Overview

This document is an owner's manual for the EL-BWC108-SS Stainless Steel Wine & Beverage Cooler by Element by Vinotemp.

Function Description

The EL-BWC108-SS is a dual-zone wine and beverage cooler designed for both storage and service. It features a glass door and soft interior lighting, allowing for display of its contents. The unit is capable of storing both wine bottles and beverage cans at their optimal temperatures.

Important Technical Specifications

  • Model: EL-BWC108-SS
  • Voltage: 115V
  • Frequency: 60Hz
  • Control Temperature Range (2 Zones):
    • Upper Zone: 5-22°C (41-72°F)
    • Lower Drawer: 1-8°C (34-46°F)
  • Refrigerant: R600a/1.83Oz
  • Input Power: 160W
  • Power Consumption: 0.65 kWh/24h
  • Volume: 510L (18.0 cu.ft.)
  • Net Weight: 272 lbs (123.4 kg)
  • Gross Weight: 309 lbs (140.2 kg)
  • Dimensions (W x D x H): 23 3/4 x 28 5/8 x 77 in.
  • Packaged Dimensions (W x D x H): 26 3/8 x 30 3/4 x 83 3/8 in.
  • Capacity: Approximately 110 traditional Bordeaux 750ml wine bottles and 100 beverage cans. Note that storing larger or oddly shaped bottles (including champagne and sparkling wine bottles) will decrease the capacity.
  • Shelves: 10 shelves in the upper zone, each capable of holding up to 11 bottles and supporting a maximum capacity of 20 kgs. Two drawers in the lower zone for beverage cans.
  • Installation: Designed for both built-in (fully-recessed) and freestanding installation.

Usage Features

  • Dual Zone Temperature Control: Allows for separate temperature settings for the upper wine zone and the lower beverage drawer, catering to different storage needs.
  • Temperature Setting: Users can adjust the desired temperature for each zone using "Temperature up" and "Temperature down" buttons. The LED readout displays the set temperature.
  • Temperature Display Toggle: A °C/°F toggle button allows switching between Celsius and Fahrenheit display for temperature.
  • Interior Light: A dedicated "Light" button controls the internal illumination, useful for displaying contents.
  • Optimal Serving Temperatures: The manual provides charts with recommended serving temperatures for various wine styles (e.g., Armagnac, Full Bodied Red Wines, Light Bodied White Wines, Vintage Sparkling) and beverage styles (e.g., Water, Black Ale, Juice, Sour Beers, Coca-Cola, Dairy).
  • Wine Storage Recommendation: Wines should generally be stored at approximately 55°F (13°C) for preservation.
  • Beverage Storage Recommendation: Beverages should generally be stored at approximately 39°F (4°C) for preservation.
  • Racking Configuration: The unit features smooth glide-out shelves with rollers. These shelves are adjustable in 1 1/4" increments to accommodate different bottle sizes. Shelves can be removed to create space for larger diameter bottles.
  • Handle Installation: The unit includes a stainless steel handle that can be installed by pulling away the door gasket, securing it with screws, lock washers, and flat washers, then replacing the gasket.
  • Power Interruption Memory: In case of a power interruption, previous temperature settings are automatically saved and restored when power returns.
  • Compressor Protection: A built-in compressor protection feature requires a 3-5 minute delay before restarting the unit after being unplugged, losing power, or being turned off.

Maintenance Features

  • Cleaning:
    • Always unplug the unit before cleaning.
    • Interior surfaces should be washed with a warm water and baking soda solution (2 tablespoons of baking soda to a quart of water).
    • Shelves should be washed with a mild detergent solution.
    • Control panels and electrical parts should be cleaned with a wrung-out sponge or cloth.
    • The exterior cabinet should be cleaned with warm water and mild liquid detergent, then wiped dry with a soft cloth.
    • Do not use harsh cleansers, scouring pads, or flammable fluids.
  • Defrosting: The unit features automatic defrosting. Condensate collects in a drainage channel and evaporates from a drip tray near the compressor.
  • Power Failure Protection: In case of extended power outages, steps should be taken to protect the contents.
  • Inactivity:
    • For inactivity periods less than three weeks, leave the cooler operating.
    • For several months of inactivity, remove all items, turn off the unit, clean and dry the interior thoroughly, and leave the door slightly open to prevent moisture build-up.
  • Moving the Unit:
    • Remove all items from the cooler.
    • Securely tape down loose items and shelves.
    • Turn adjustable legs up to the base to prevent damage.
    • Tape the door shut.
    • Ensure the unit remains upright during transport and protect the exterior with a blanket.
    • Do not slide the unit into place; do not incline it more than 45 degrees.
  • Energy Saving Tips:
    • Locate the unit in the coolest area of the room, away from heat sources and direct sunlight.
    • Ensure proper ventilation clearances around the unit and never cover air vents.
    • Minimize door openings to maintain internal temperature.
