SYSTEM OPERATION ADVANCED QT
QT Cooling System
• The rear of the unit should be placed about 2” from the wall.
• There should be about 6” of clearance above the top of the unit and
12” of free space on each side. This will assure proper dissipation of
heat and sustained cooling of your wines.

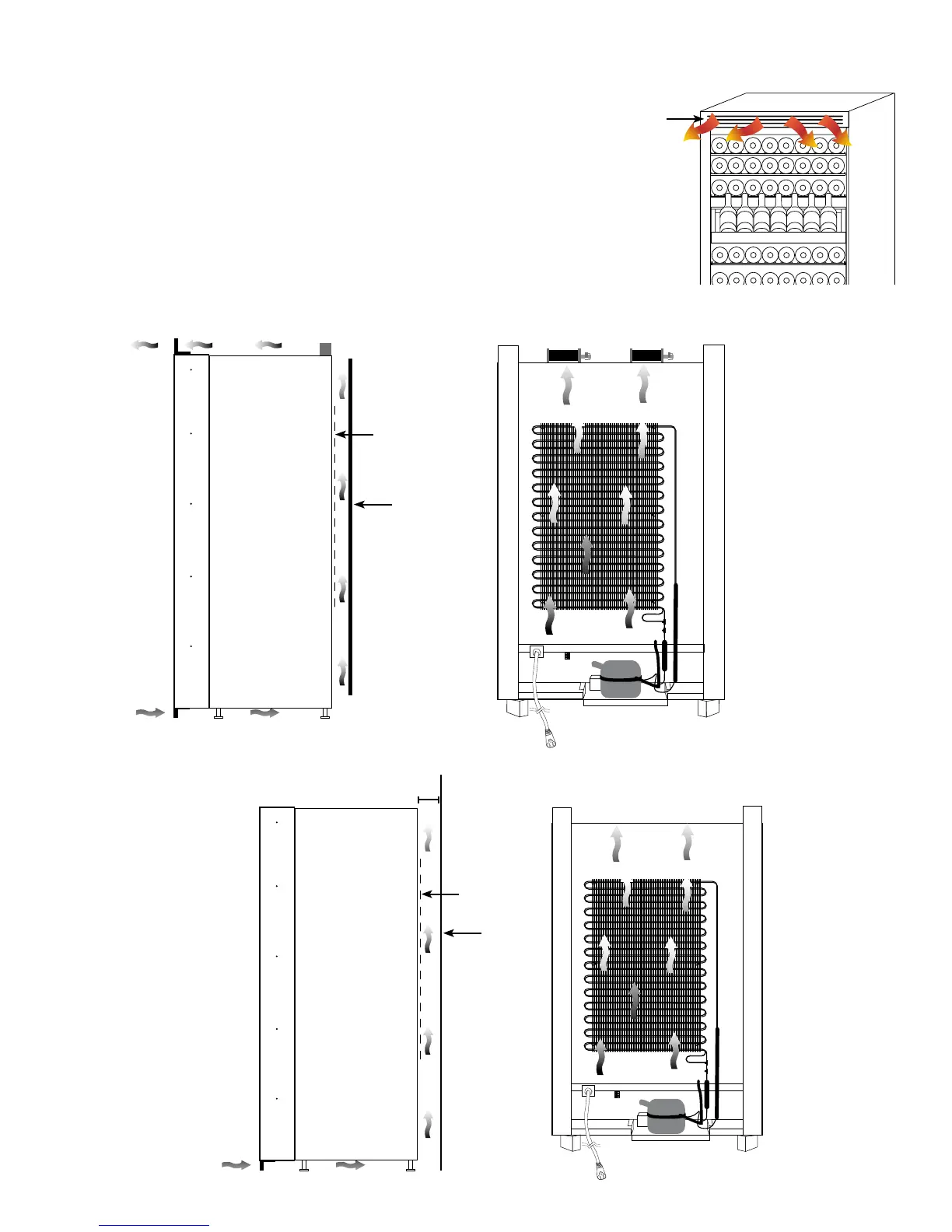

Side View
Front Venting
Cabinet
Side View Rear View
Rear View
with Protective Panel Removed
2” from Wall
FRONT VENTING
BACK VENTING
Wall
Coils
Coils
Front of
Cabinet
Protective Panel
