-6-

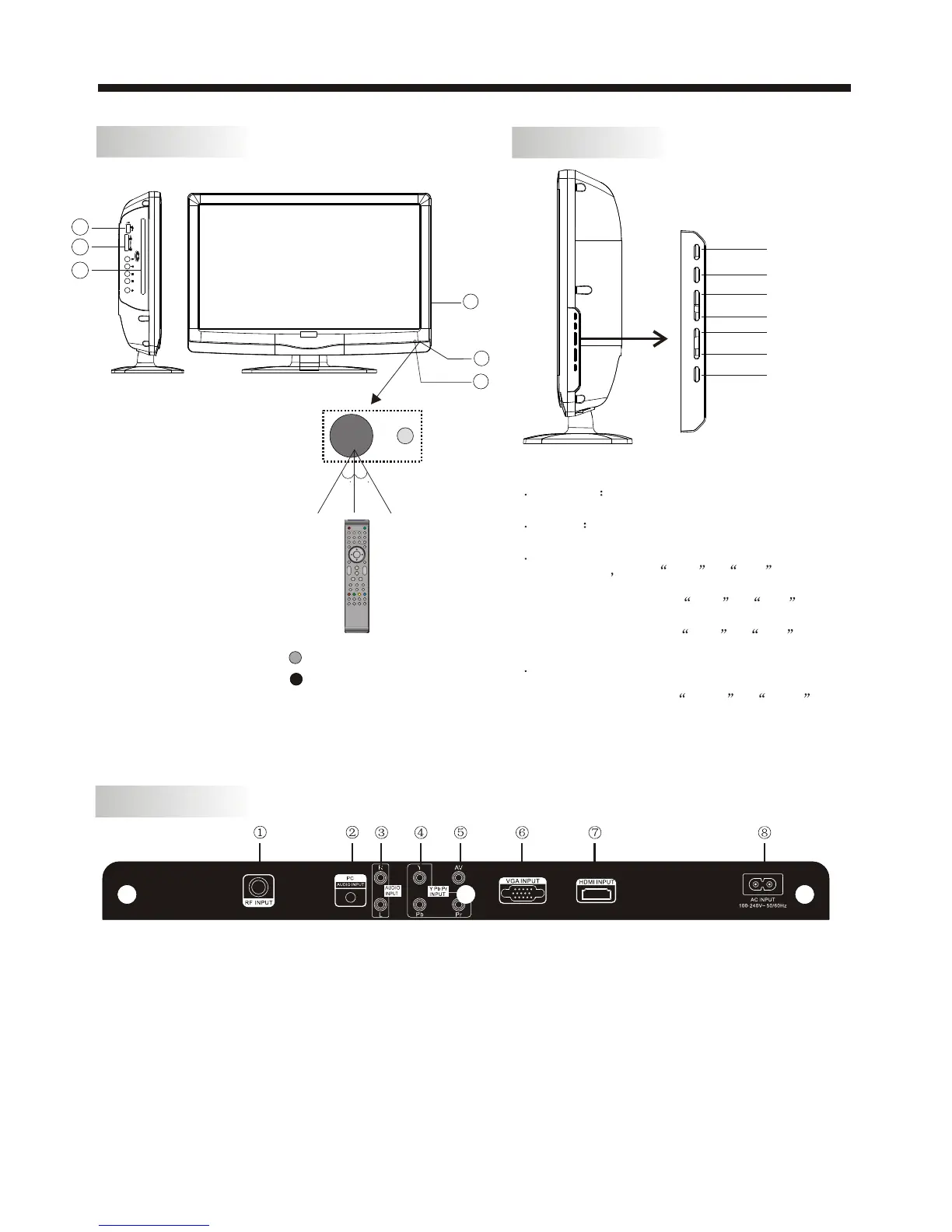

INSTALLATION
REAR AV Connection
1 SOURCE
Display the input source menu.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CH- to change
the channel up and down.
In MENU mode, press CH+ or CH- to select
items .
In standby mode, press CH+ or CH- to turn
on the TV.
4 VOL+/VOL-
Adjust sound level.
In MENU mode, press VOL+ or VOL- to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
Front panel
KEYBOARD
1: Remote control sensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Key board
4: USB Port
5: 3-in-1 Card Slot (SD, MS, MMC)
6: DVD Disc loading Slot
SOURCE
MENU
CH+
CH-
VOL+
VOL-
ST ANDBY
1 2 3
4 5 6
7 8 9 0
+
CH
_
+
_
VOL
30 30
1
2
3
1.Antenna Socket
2.PC Audio Input
3.Audio Input
4.Component Video (YPbPr) Input
5.Composite Video Input
6.VGA Port (PC Input)
7.HDMI Input
8.AC Power Socket
Note: 1.Composite video input and component video input share the audio input.
2.When "DVI to HDMI cable" is used, the audio output for DVI needs to be connected to the
PC Audio Input (above 7).
4
5
6
