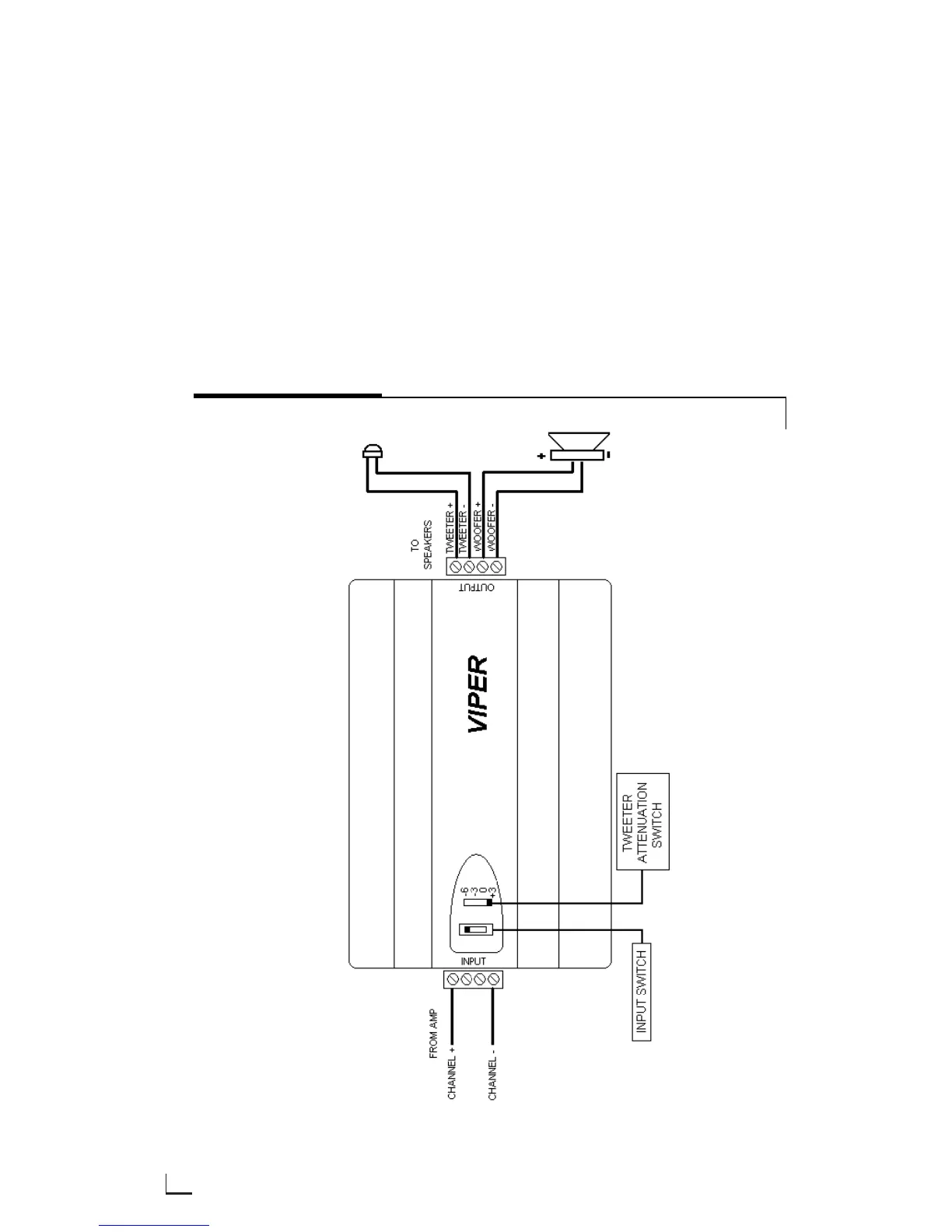

FIGURE 5—SINGLE AMPLIFIER
Connection/Adjustment
Single Amplifier
1. Connect the amplifier channel
output to the crossover input
connector as shown, carefully
observing amplifier output polarity.
2. Connect the tweeter and woofer
wires to the output connector as
shown, carefully observing speaker
polarity.
3. Set the amplifier input switch to the
single channel input setting as
shown.
