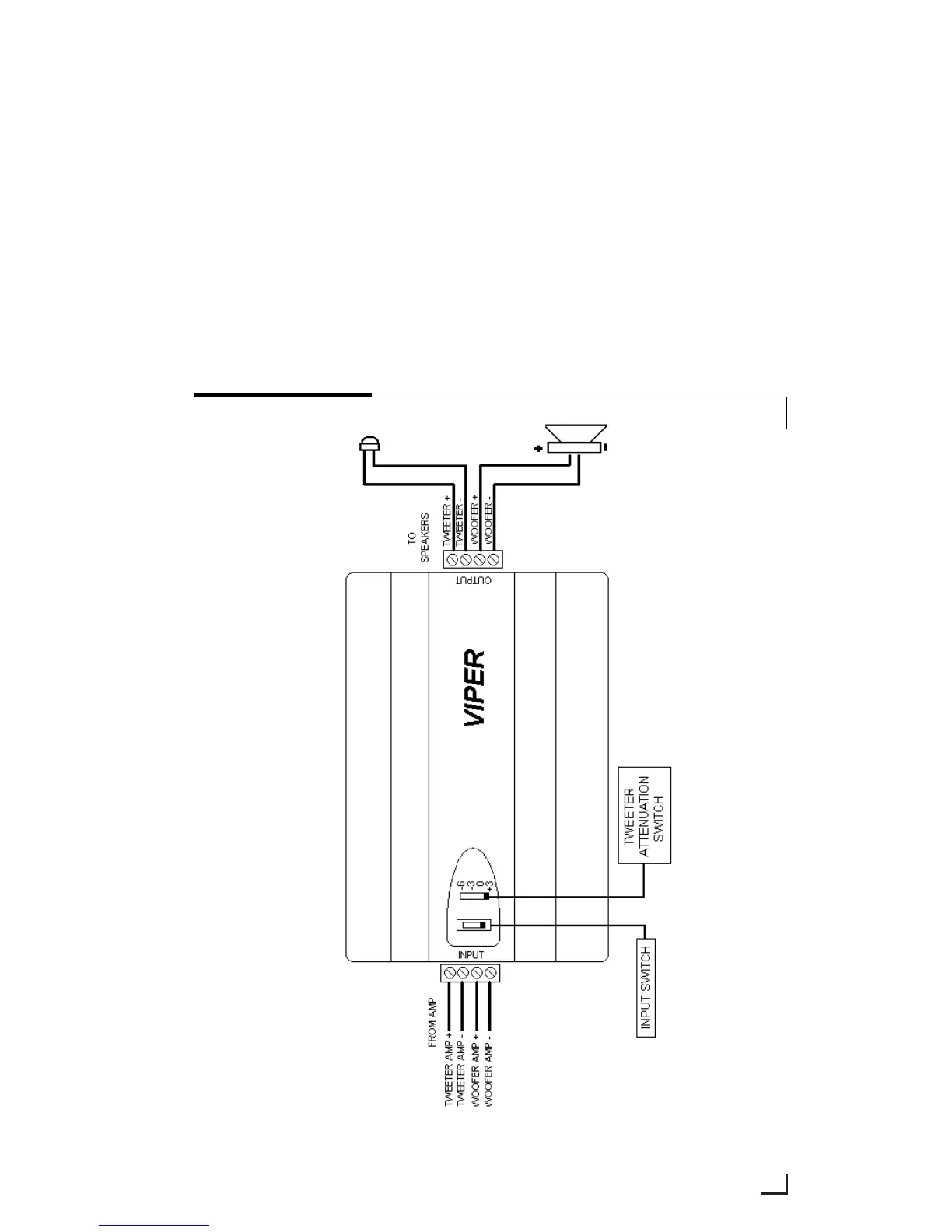

FIGURE 6—DUAL AMPLIFIER
Connection/Adjustment
Dual Amplifier
1. Connect the amplifier tweeter and
woofer channel outputs to the
crossover input connector as shown,
carefully observing amplifier output
polarity.
2. Connect the tweeter and woofer
wires to the output connector as
shown, carefully observing speaker
polarity.
3. Set the amplifier input switch to the
dual amplifier setting as shown.
