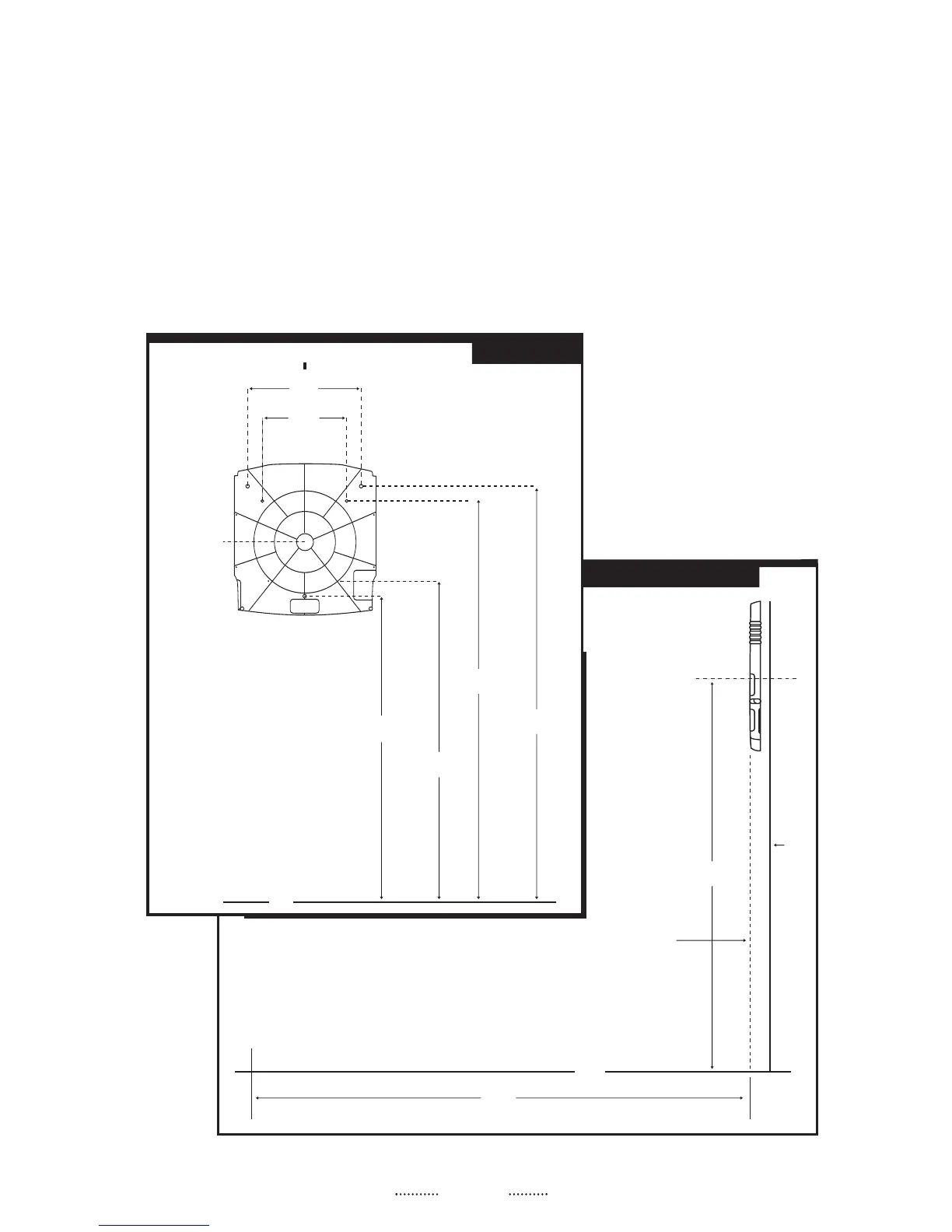

Viper Eclipse 42-1003 - Installation Details and Safety; Protective Film Removal; Mounting and Throwing Distance Diagrams

96"
(244 cm)
68"
(173 cm)
Wall
Center of Board
Plumb Line from Face
of Board to Floor
Throwing
or Toe Line
Floor
Throwing Distance
16"
(40.64 cm)
60"
(156.28 cm)
61.75"
(157.125 cm)
74.25"
(188.875 cm)
76"
(193.32 cm)
12.5"
(31.75 cm)
68"
(172.72 cm)
Floor
W
all Stud Marking for Mounting Screws
Protective Film
This electronic dartboard has a clear protective film over the entire display area and button
area to prevent scratching during shipping. It is recommended that you remove this film for
easier reading of the display. To remove, simply lift edge, peel off and discard.
Warning
Not for use by children without adult supervision.
Please read instructions carefully.
Mounting
3
