7/2014 D - 3 56091136 - 3-Speed Air Mover
PARTS LIST
3-SPEED AIR MOVER
Item Ref. No. Qty Description
1 XP600-001 1 Knob, On / Off
2 XP600-002 1 Switch Plate
3 XP600-003 1 Switch Assembly
4 XP600-004 1 Capacitor
5 XP600-005 1 Male, Lead (Switch)
6 XP600-006 1 Control Switch Clip
7 XP600-007 1 Capacitor Clip
8 XP600-008 4 Screw, 3.5 X 12, Pan Head
9 XP600-009 1 Female End Lead (Switch)
10 XP600-010 1 Vent, Front Outlet
11 XP600-011 1 Screw, M5 X 6, Pan Head
12 XP600-066 1 Screw, Self-Tapping St5 X 12
13 XP600-013 1 Lockwasher, Countersink
14 XP600-068 1 Rubber Foot-Left and Right
15 XP600-069 1 Kick Stand Assembly Kit
16 XP600-065 1 Vent, Cover (Fan Side)
17 XP600-064 21 Screw, Self-Tapping, St4 X 16
18 XP600-018 8 Screw, Self-Tapping, M5 X 20
19 XP600-019 1 Nylon Tie
20 XP600-020 1 Lead Wire, Switch
21 XP600-021 1 Lead Wire, Circuit Breaker
22 XP600-022 1 Ground Wire (Gfci)
23 XP600-023 1 Circuit Breaker, 12a
24 XP600-024 2 Screw, Self-Tapping, M3 X 6
Item Ref. No. Qty Description
25 XP600-025 1 Receptical, Gfci
26 XP600-026 1 Vent, Cover (Motor Side)
27 XP600-027 4 Nut, M5
28 XP600-028 5 Spring Washer, M5
29 XP600-029 12 Washer, Flat
30 XP600-030 4 Washer, Heat Insulation
31 XP600-031 1 Housing, Left
32 XP600-032 4 Cable Clip, #2
33 XP600-033 8 Screw, Self-Tapping, St4 X 12
34 XP600-034 1 Plate, Heat Insulation
35 XP600-035 1 Rubber Feet (Set Of 6 Pcs)
36 XP600-067 1 Motor Assembly Kit
37 XP600-037 1 Washer, D-Shaped
38 XP600-038 1 Bushing
39 XP600-039 1 Fan Wheel
40 XP600-040 1 Cord Strain Relief
41 XP600-041 2 Closed-End Terminal (C4)
42 XP600-042 3 Closed-End Terminal (C5)
43 XP600-043 1 Power Cord
44 XP600-070 4 Handle Assembly Kit
45 XP600-051 4 Screw, Pan Head, M6 X 20
46 XP600-054 4 Washer, Flat, 6.4
47 XP600-071 1 Washer and Screw-Fan Assembly
48 XP600-061 1 Housing, Right
49 XP600-062 2 Hole Plug #2
50 XP600-063 2 Hole Plug #1

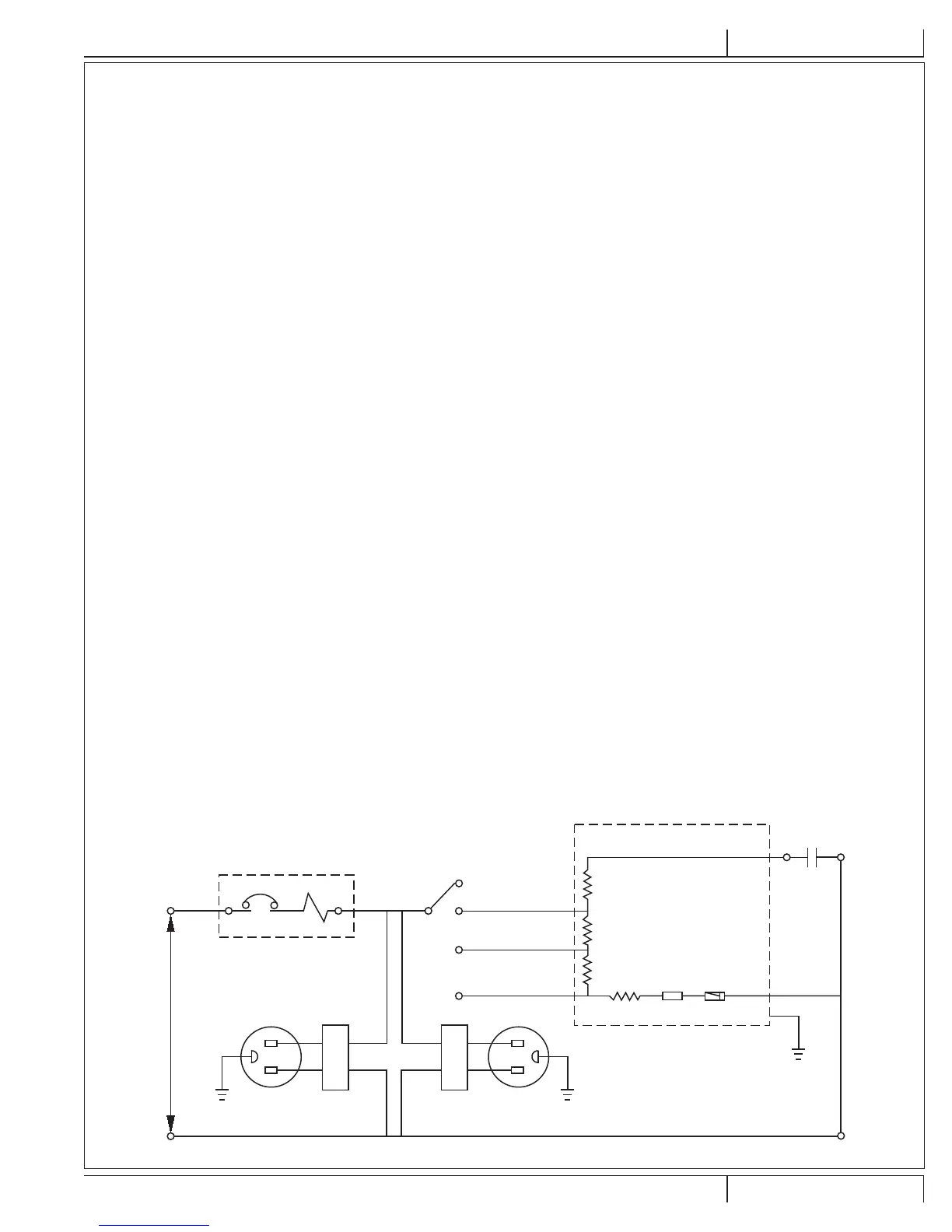

Rotary
Switch
Circuit-Breaker
(Overcurrent Protector)
1-BROWN
(Low Speed)
OFF
2-YELLOW
(Mid Speed)
3-BLACK
(High Speed)
115V 60HZ
L
N
GFCI
GFCI
RED (Aux.)
Aux.
Main
Fuse
Auto Reset
Protector
Blue
(Main)
White
WIRING DIAGRAM
