VirtuFit CTR 1.1 Crosstrainer
7

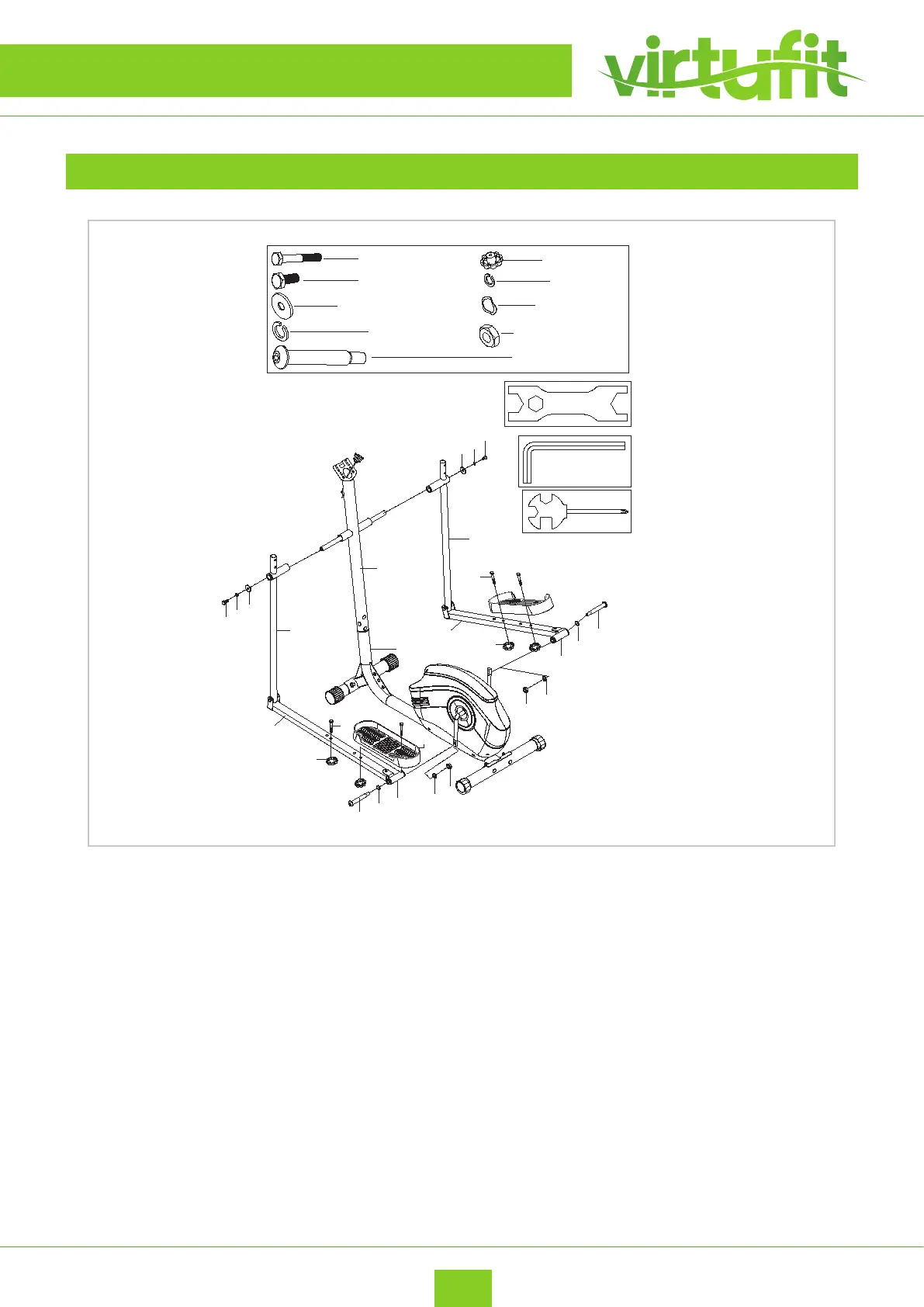

STEP 3
ASSEMBLY INSTRUCTIONS
• Fix the Lower Handle Bar ( 25 L / R ) to the Upright Post (15) with Bolt (18), Washer (9), D Washer (19).
• Fix the Pedal Tubel ( 42 L / R ) with the Pedal Crank by Pedal Hinge Bolt (46 L / R) Curved Washer (50),
and Nylon Nut ( 51 L / R ). Install the Pedal (44) on the Pedal Tube (42 L / R) with Hex Head Bolt (43),
Knob (27).





/


/
/

/

/




