Pass the previously prepared strip through the intake guide B
(Fig. 8). Adjust the height of the edge with knob C (Fig. 8) to
the feeder roller E (Fig. 8). Adjust the edge press B (Fig. 10) to
the corresponding thickness, turning knob B (Fig. 10) and finally
adjust the exit for the edges B (Fig. 9) with knob C (Fig. 9).
Now slowly turn the glue flow control knob A (Fig. 15) anti-
clockwise to open the passage for the glue, completing ap-
proximately half a turn towards “+”. Move the edge forward
so that it is caught by the feeder roller E (Fig. 8) and check
when it comes out that the edge is properly and uniformly
glued. If not, readjust the amount of glue using the control
knob A (Fig. 15). In general, this adjustment will only need to
be completed once.
The control knob (Fig. 15) should not be moved once
the machine has cooled down. The control knob A
(Fig. 15) can only be moved: PEB250- After hearing
the Beep-Beep noise, and in the PEB200- When LED
C comes on (Fig. 16-1).
With a full glue tank you can glue approximately 35 m of
edge with a height of 25 mm, or 15 m of edge with a height
of 62 mm.
9.2 Controlling the gluing speed. (ONLY PEB250)
With a simple turn of the control, you can regulate the speed
while you continue banding. No need to stop.
To change the speed, you should turn handle A (Fig. 14) until
index C (Fig. 14) is set to the speed you require. Index C shows
the speed in m/min, (2-4-5-6).
The maximum speed is recommended for straight jobs and with
a low edge. The minimum speed is recommended for rounded
shapes with small internal radii and also for tall edges.

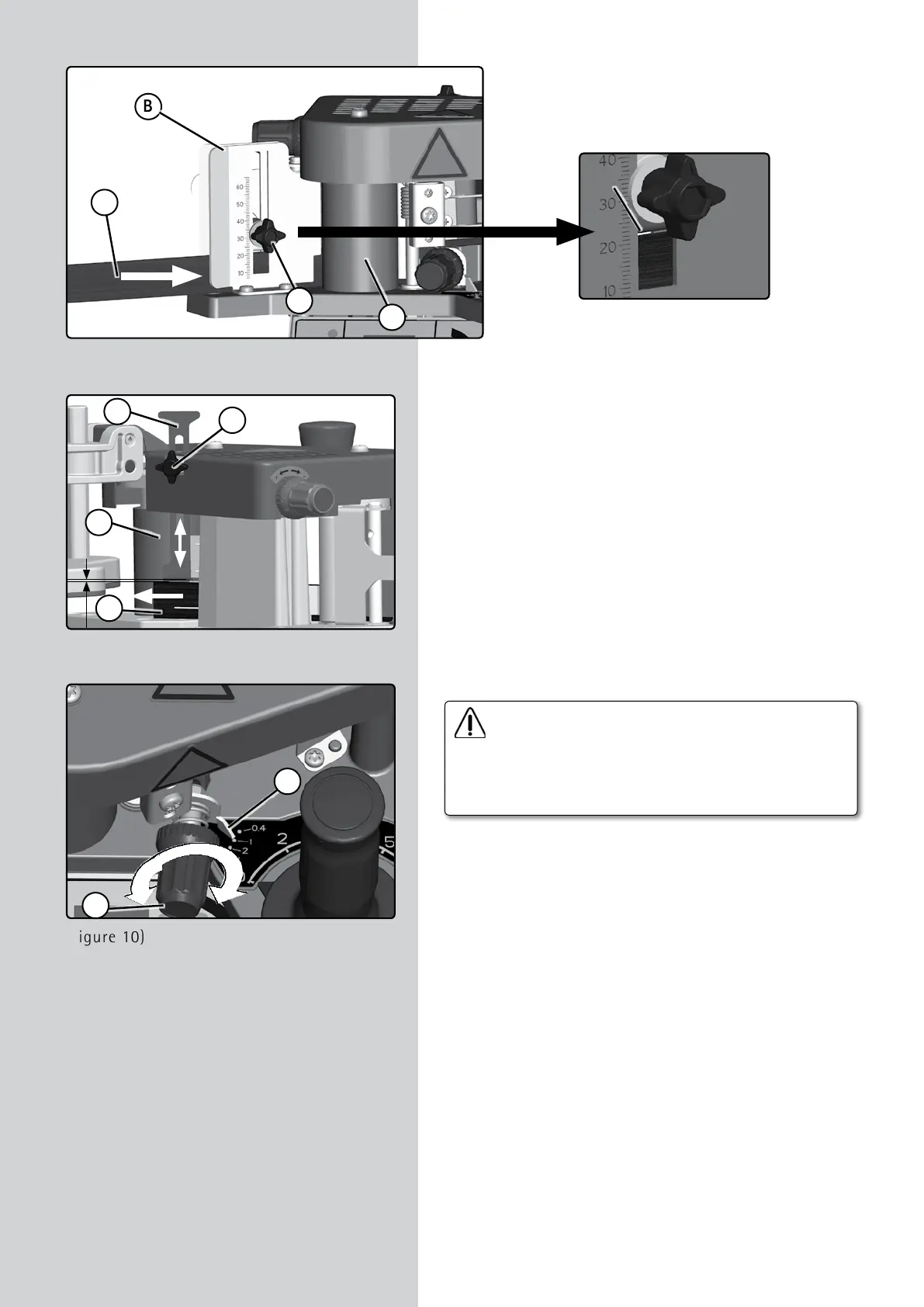

(Figure 8)
B
A
C
E
(Figure 9)
C
B
(Figure 10)
D
A
0,5 mm
A
B
PEB200-PEB250 / Operating instructions - 29
