Ensure that all the adjustments in points 8 and 9

below have been performed before continuing.

Next, place the guide plate A (Fig. 27) over the piece to be

edged B (Fig. 27) and move the pressure roller C (Fig. 27) close

to the piece but without touching it.

Hold the machine over the piece with your right hand and move

the edge with your left hand through the guides E (Fig. 27), to

the advance roller F (Fig. 27). The edge will be automatically

fed through to pressure roller C (Fig. 27).

When the edge appears between the panel and the pressure

roller C (Fig. 27), allow around 2 cm of edge to pass with res-

pect to the panel and press roller C against the edge and the

panel (Fig. 26). The edge will stick and the turning movement

of the pressure roller will move the machine forward (Fig. 26)

continuously and consistently, at a speed of between 2 and

6 metres/minute according to the difficulty of the piece, and

this can be selected using handle A (Fig. 14). The selected speed

will be shown by the corresponding yellow LED D (Fig. 14).

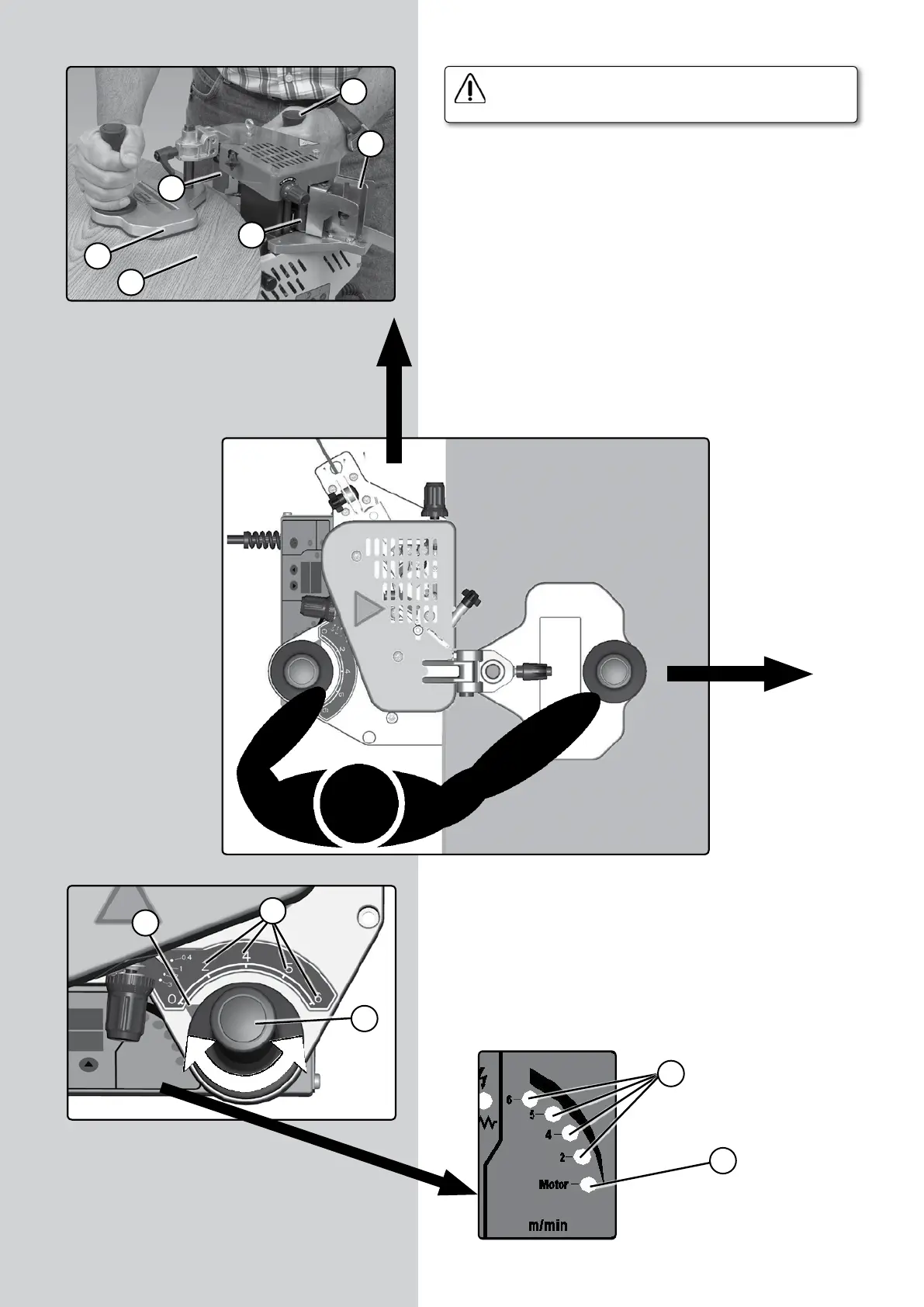

(Figure 26)

(Figure 14)

(Figure 27)

PEB200-PEB250 / Operating instructions - 33
