VT3000 INSTALLATION GUIDE
8

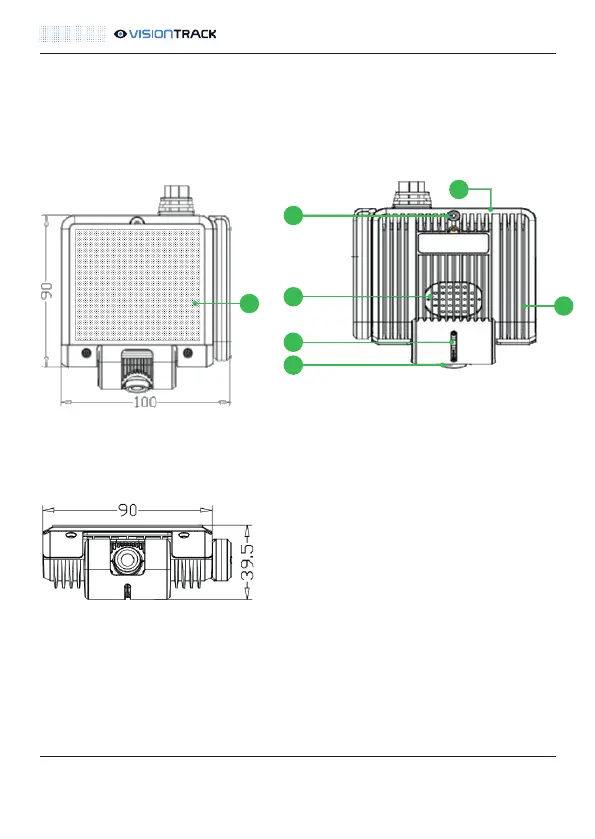

VT3000 Dimensions LxHxW:
t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com
7
5
6
1
2
3
4
Items Definition
MIC
1.
Fixing screw of cover
2.
Speaker
3.
Camera Adjustment Screw
4.
VT3000 lens (towards outside)
5.
SIM / SD Card / USB Cover Screw
6.
Adhesive Pad
7.
Dimensions
90x39.5x100LxHxW
