VISION X

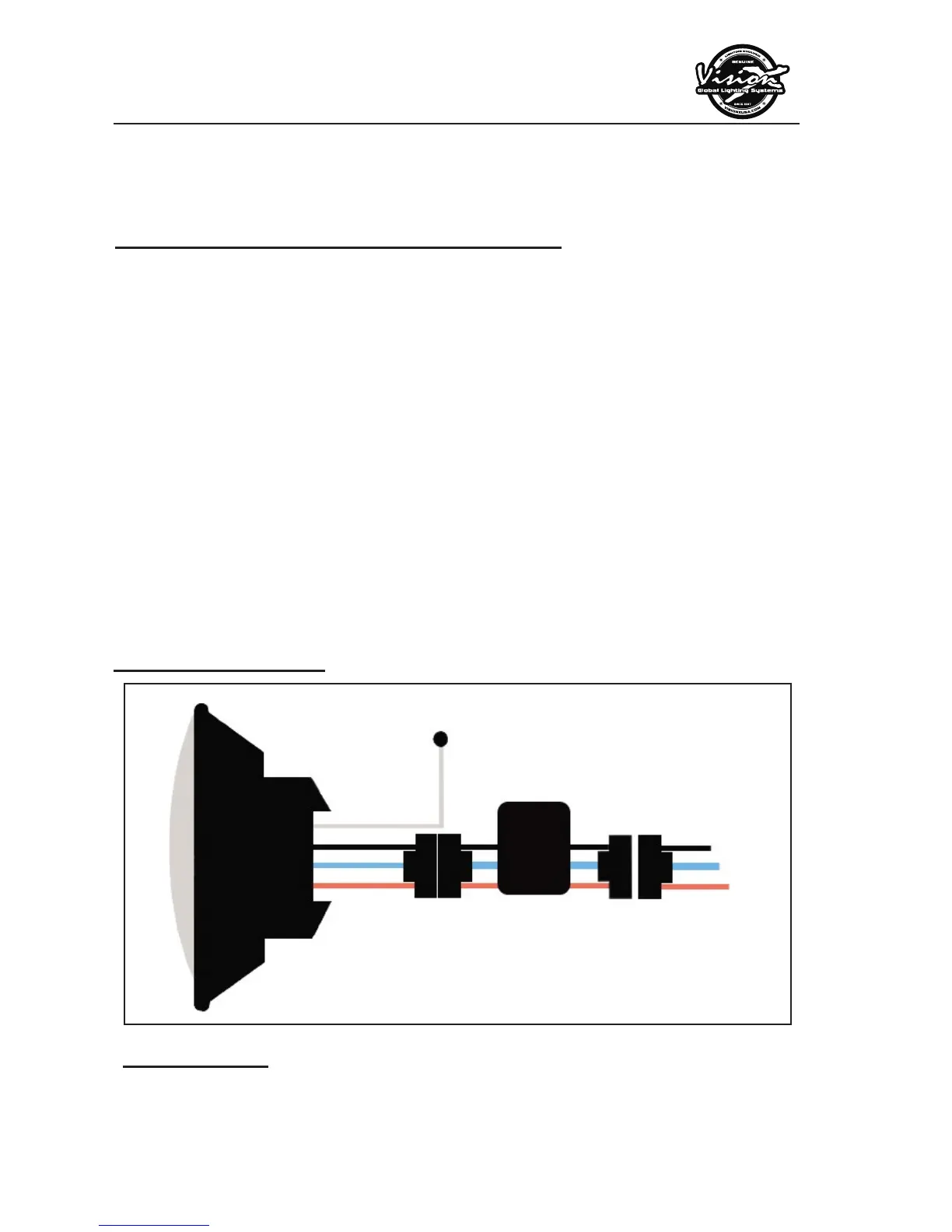

WIRING DIAGRAM
Red = High Beam [ + ]
Blue = Low Beam [ + ]
Black = Ground [ - ]
White = Halo [ + ]
WIRING KEY
1. Disconnect vehicle battery prior to installation
2. Review your vehicle manual for detailed instructions for
removing existing factory head light housing.
3. Remove Gore-Tex Valve Cover, prior to installation see
[Figure 1]
4. Attach VX Series LED Headlight to Optional JEEP JK HI-4
Module (P–HLHI4H13), then to the existing factory plug and
re-install according to your vehicles manual. See [Figure 3]
5. To wire the LED Halo Daytime Running light, locate the
white wire on the back of the light. Power the white wire by
attaching it to the accessory power of the vehicle. If there
isn’t accessory power available ax it to the blue wire of the
light or its own Aux switch.
white
black
blue
red
H13
Plug
OPTIONAL
P-HLHI4H13
WIRING INSTRUCTIONS XIL-7RDKITJK
SEE VEHICLE OWNERS MANUAL FOR HELP REPLACING HEADLIGHT
ADDITIONAL WIRING HARNESS ADAPTER MAY BE NEEDED CONSULT
YOUR DEALER TO DETERMINE IF ONE IS NEEDED
Figure 3
