Vislink HDX-1100 User Manual

7

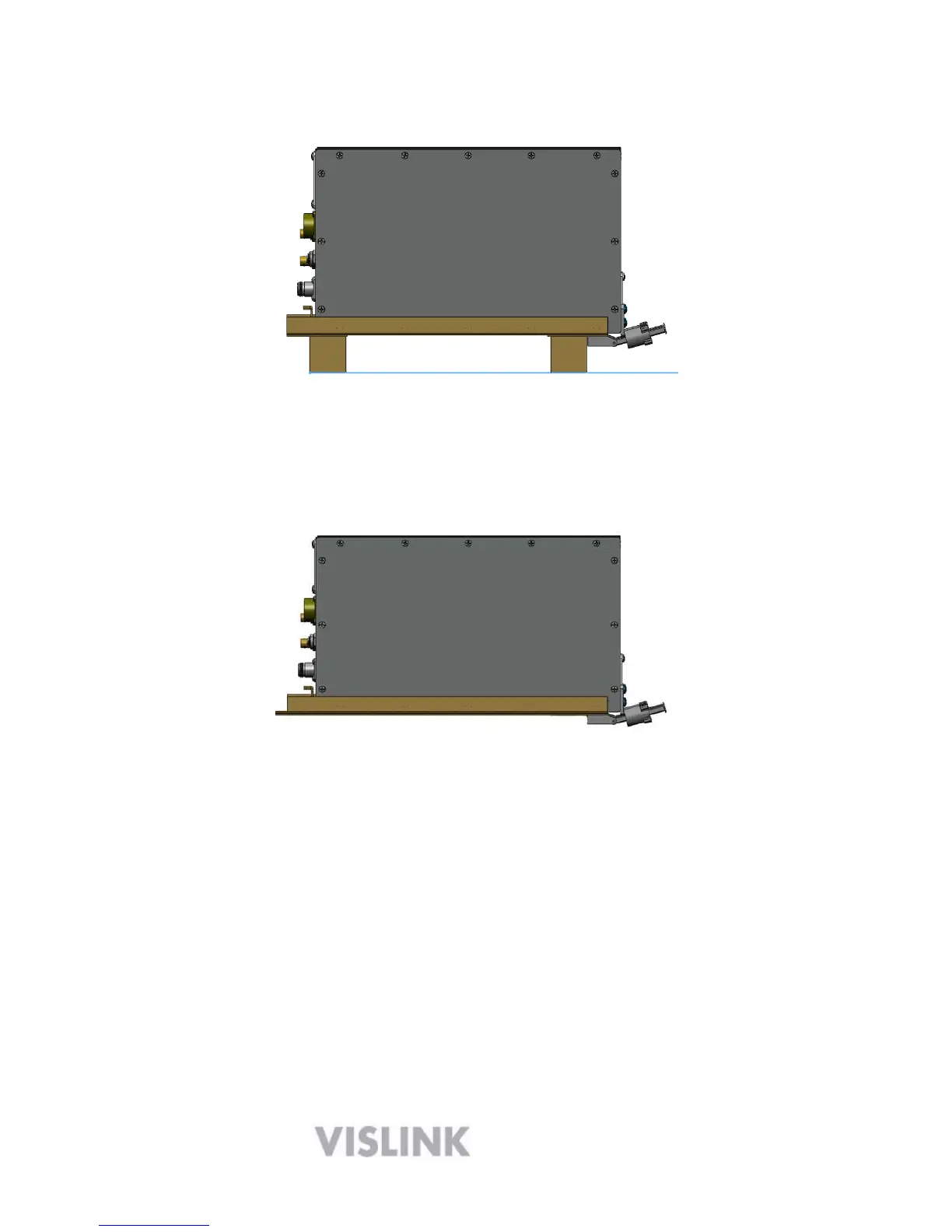

HDX-1100 installed in optional 3/8 ATR mounting tray with spacers
The optional 9000372 3/8 ATR mount includes a set of spacers that may be installed if
clearance is not sufficient to allow the clamps to disengage. The spacers would not be needed
if the mounting plate is attached to a shelf within the airframe, as shown below.
HDX-1100 in optional 3/8 ATR tray installed on existing shelf without spacers

Vislink HDX-1100 Specifications

General

Brand	Vislink
Model	HDX-1100
Category	Transmitter
Language	English
