NOTE: There is a 10 AMP DC circuit breaker on rear panel of HDX-1100. If the power to this
breaker is fed from another circuit breaker in the aircraft, the HDX-1100 breaker should be left in
the on position. To operate the breaker: push in = ON, pull out = OFF, a manual reset is required
after the breaker trips.

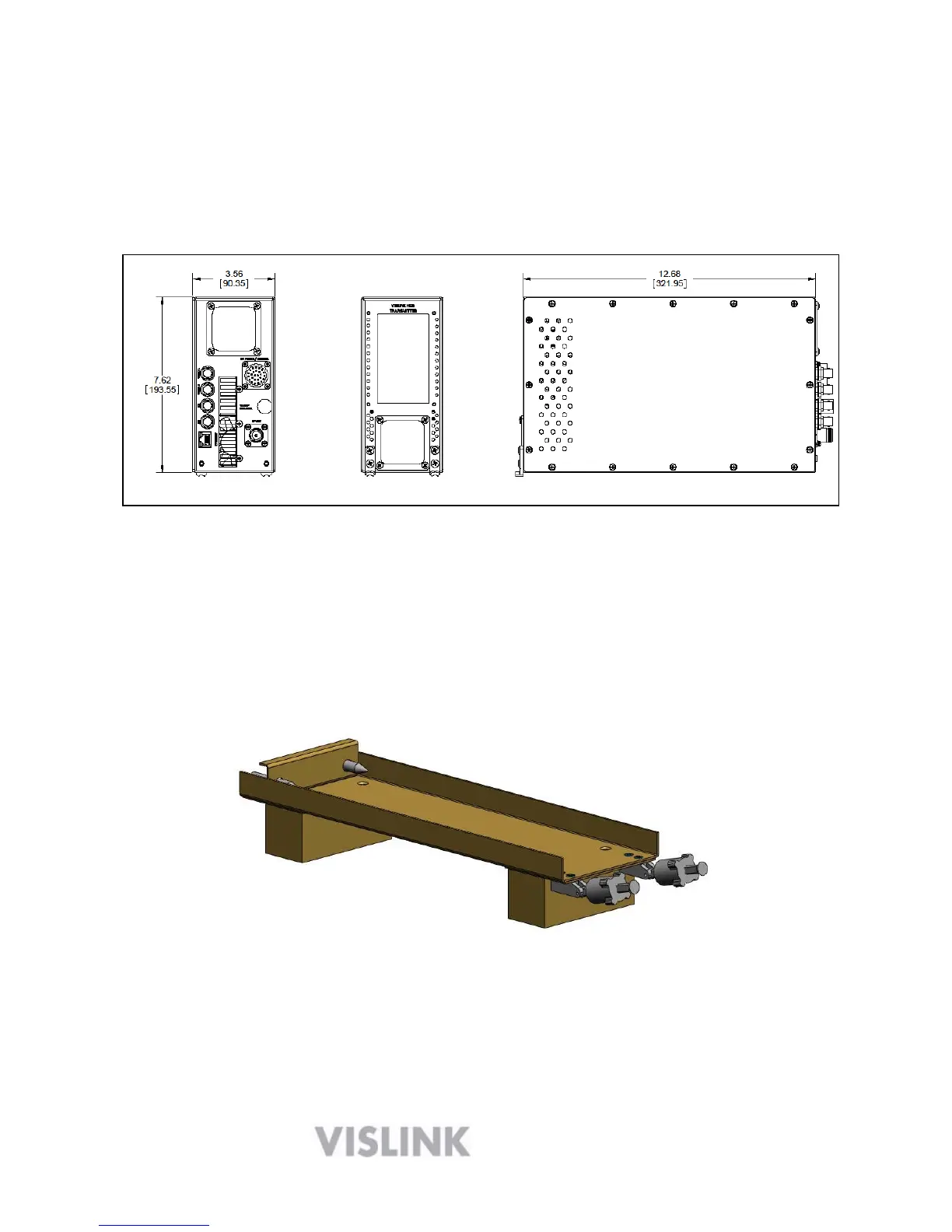

HDX-1100 MECHANICAL OUTLINE
An optional aircraft mounting kit (part # 9000372) may be ordered. The kit includes an ARINC
compliant low profile tray with quick release clamps, and removable spacers. This kit should
provide an installer with enough flexibility to satisfy most situations.
Please contact the factory if alternative mounting hardware is required.
Optional 9000372 3/8 ATR mounting kit with removable spacers
