3. INSTALLATION, TESTING AND ENROLLING
3.1 Installation
Optional step only:
Hang back unit with a screw on mounting
surface to make the next step (drilling
marking) easier.
3
Mark for driling
4
For
tamper
1
Open screw
plastic cover
Using Philips screw-
driver, remove screw
and remove cover.
2
Drill 5 holes
5 6
Fasten with 5 screws
BA
Release catch (A) and open battery cover (B)
7
Optional second battery
location and its connector
Self-test button
Connect battery / optional battery and
9VAC power to the proper connectors and
set the optional jumpers as desired
8
220/110 VAC
9VAC
9VAC connector
Siren rear side
LED KEEP ALIVE
Enable (ON)/ Disable
(OFF) jumper
AC CONFiguration Enable
(ON) / Disable (OFF)
jumper
Note: When external power is
used, set the AC CONF jumper
to ON position (see step 8)
Note: There is siren model that is supplied
with battery only (MCS-730) and siren
model that is supplied with 9VAC adaptor
and backup battery (MCS-730 AC).
PM+ / Others
configuration
jumper

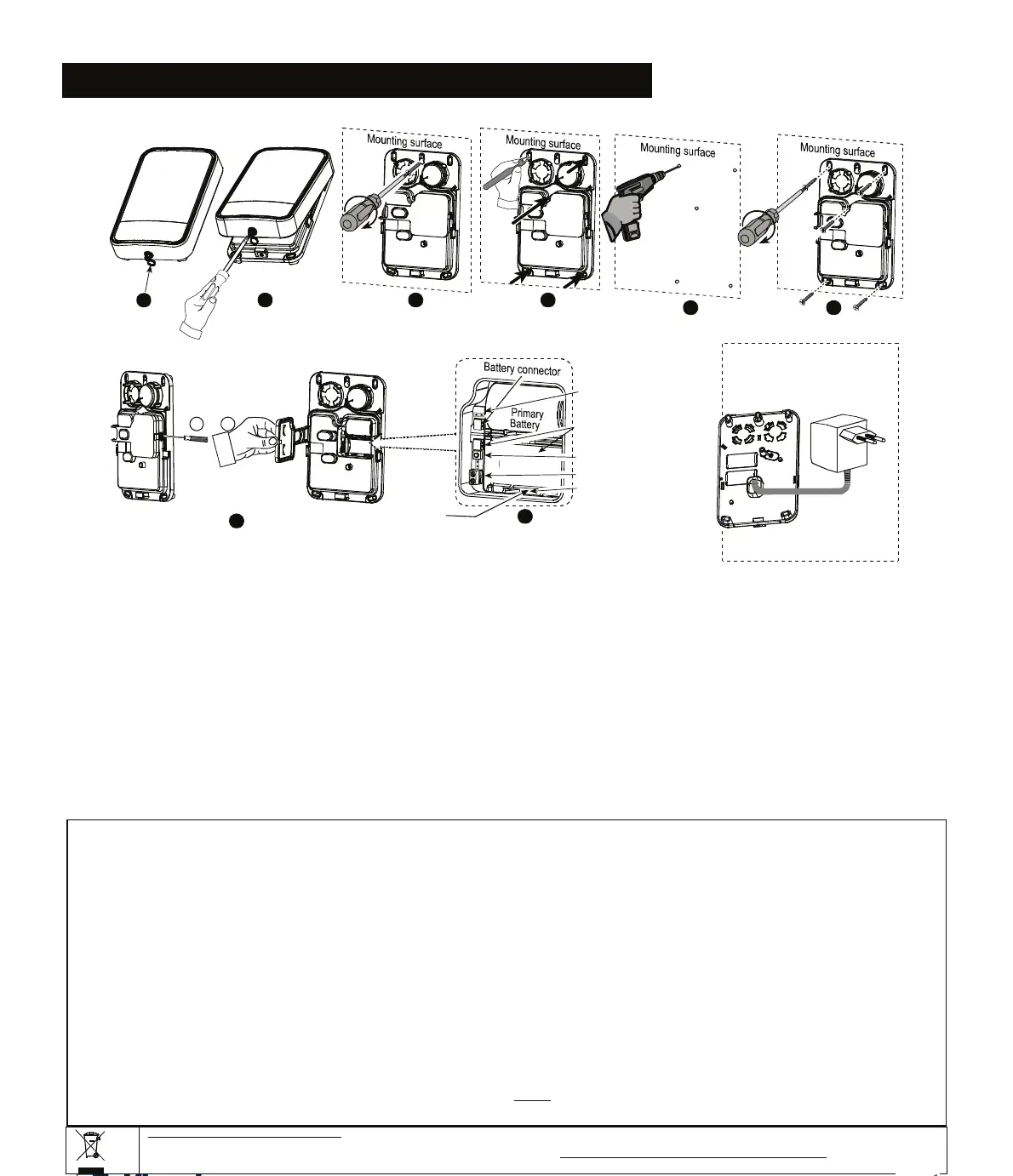

Figure 3 – Installation
3.2 Self-Test
Press the self test button (see figure 3 step 8). Low level piezo
sounds and flash lights indicate that the siren is fully operational.
3.3 Configuration (see figure 3, step 8)
LED Keep Alive Jumper Setup:
When it is desired that the Keep Alive LED should blink (every 5
sec.); LED configuration must be set to ON position.
PowerMax+ / Other Jumper Setup (MCS-730 AC only):
When enrolling to the PowerMax+, the internal jumper must be set to
the "PM+" position. When enrolling to other PowerMax control panels
the internal jumper must be set to "others" position.
AC CONF ON/OFF Jumper setup (MCS-730 AC only):
When it is desired to use AC power supply (optional); AC CONF jumper
must be set to ON position.
3.4 Enrolling
Important Note: The siren is ready to operate 30 seconds after the
enrolling. Pre-enrolled sirens are ready to operate 30 seconds after
power up.
The alarm system must recognize the siren's unique identification code
for command delivery and supervision. To enroll the siren into the alarm
system memory, refer to the ENROLLING section of the alarm system
installation instructions, and momentarily press the Self-Test button (see
figure 3 step 8) when you are instructed.
After the enrolling, close the siren's cover and perform diagnostic test,
as described in the alarm system installer guide, DIAGNOSTIC
section.
Enrolling cancellation, if required, is also described in the alarm
system Installer Guide, ENROLLING section.
