2 DE2256
E. Insert the 3 volt Lithium battery (Panasonic CR-2 or
equivalent) into the battery holder, so that the (+) and (–)
markings on the battery coincide with the markings on the
printed circuit board (close to each battery clip).
F. Gently press one pushbutton switch and verify that the LED
lights, indicating good battery condition.
3.2 Setting the Mode Selectors
Two DIP switches on the unit’s printed circuit board allow you to
choose between operating modes, as portrayed in Figure 4.

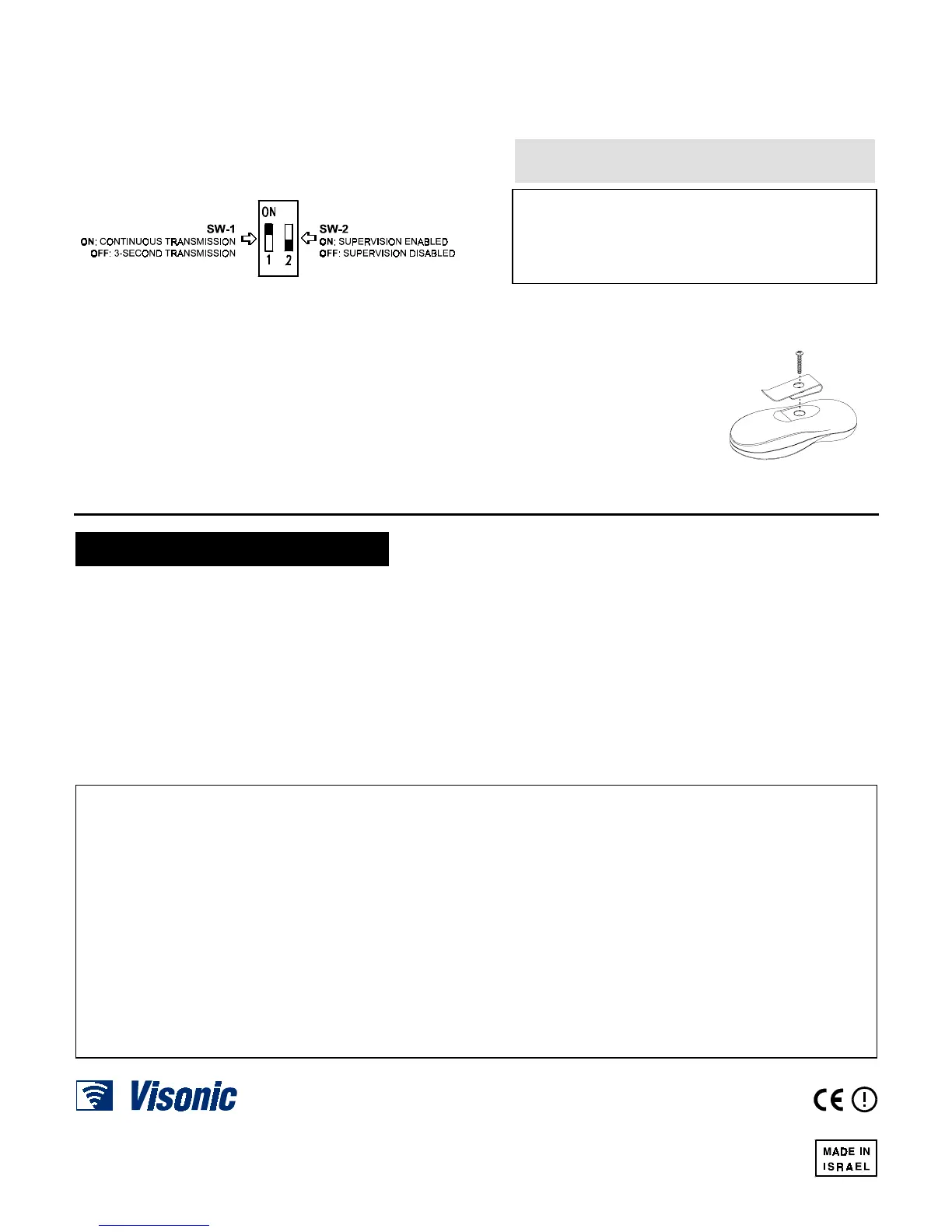

Figure 4. Mode Switch Tasks and Positions
The factory default settings are as shown in Figure 4. To change
modes, shift the proper switch to the opposite position.
IMPORTANT! Due to a 6-second mode-update delay, wait 6
seconds before testing a newly selected mode.
3.3 Closing the Case
A. Carefully engage the ridge at the top of the base with the dent
at the top of the cover. Press the bottom ends of both halves
of the case together until they click shut.
B. Re-insert and tighten the screw at the back of the unit.
Note: If the user needs the belt clip (included), position the
belt clip as shown in Figure 5 and insert the screw through
the hole in the clip.
3.4 Learning and Testing
A. Refer to the target receiver's installation instructions, and let
the receiver "learn" the ID codes associated with each
pushbutton of the transmitter. You may test the unit’s effect on
the system in which it works only after having conducted the
learning session.
Since the supervision message is always sent with the
first button's ID, it is mandatory to learn the first button's
ID. Failure to do so will disable the supervision function.
ATTENTION! Because each pushbutton acts as an
independent transmitter with an individual ID, make sure that
all IDs are learned by the receiver.
With the target receiver in the LEARN mode, an alarm
transmission from each pushbutton will enroll the button's ID
in the receiver’s memory.
B. Stand 3 m (10 ft) away from the receiver and operate the
transmitter.
C. Verify that the transmitter LED lights, indicating good battery
condition. Also verify that the system responds to your trans-
mission by performing the
desired function.
D. Operate the transmitter from
various locations within the
area covered by the receiver
to determine "dead" locations,
where transmission is
obstructed by walls and large
objects, or affected by
structural materials.
Figure 5. Belt Clip
Installation
4
44
4. PRODUCT LIMITATIONS
. PRODUCT LIMITATIONS. PRODUCT LIMITATIONS
. PRODUCT LIMITATIONS
Important Notes: Visonic Ltd.’s wireless systems are very
reliable and are tested to high standards. However, due to their
low transmitting power (required by FCC and other regulatory
authorities) there are some limitations to be considered:
A. Receivers may be blocked by radio signals on or near their
operating frequencies, regardless of the code selected.
B. A receiver can only respond to one transmitted signal at a time.
C. Wireless equipment should be tested regularly (at least once
a week) to determine whether there are sources of
interference and to protect against faults.
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Frequency Allocations for Wireless Devices in
European (EU) Countries
• 433.92 MHz has no restriction in any EU member state.
• 315 MHz is not allowed in any EU member state
• 868.95 MHz (wide band) is allowed in all EU member state.
• 869.2625 MHz (narrow band) is not restricted in any EU
member state.
