Visonic POWERMASTER 10 User Manual

INTRODUCTION
D-303223 PowerMaster-10 / PowerMaster-30 User's Guide 5
PowerMaster-10 Panel Indicator and Controls
20
2 3
1
4 5
6
7
8
9
10
11
12
13
14
15
16
17 18
19

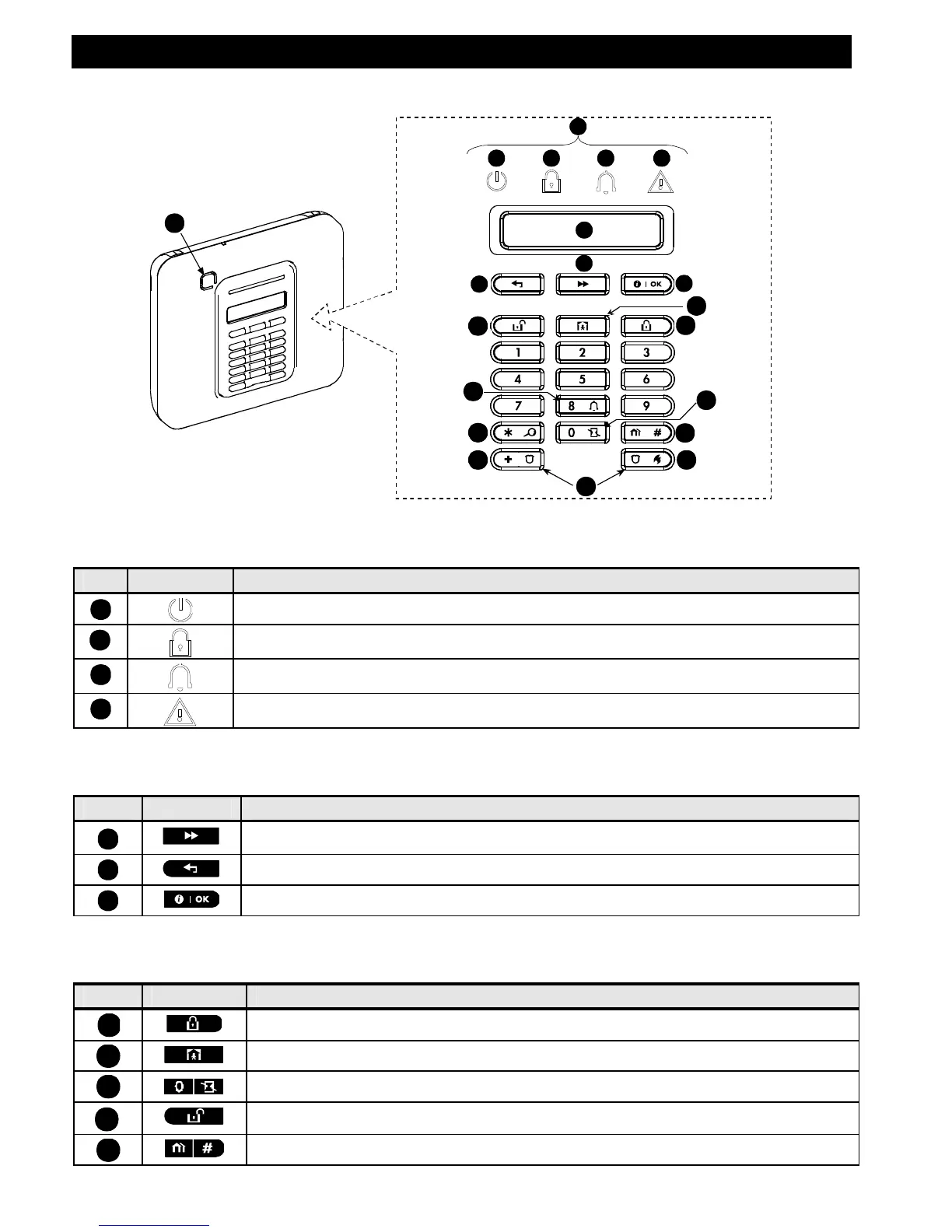

Figure 1a. PowerMaster-10 Controls and Indicators
LED Indicators
No. Indication Function
2
Power (Green): Indicates that your system is properly connected to the power outlet.
3
Arm (Red): Lights when the system is in the armed state.
4
Chime (Green): Chime zones will chime when disturbed (see Chapter 2).
5
Trouble (Orange): Lights when the system is in a state of trouble (see Chapter 3).
Control Keys
No. Indication Function
7
NEXT: Advance from item to item within a given menu.
8
BACK: Move one step back within a given menu.
9
OK: Review status messages one by one and also select a displayed option.
Arming Keys
No. Indication Function
12
AWAY: Arming when nobody is at home
10
HOME: Arming when people remain at home.
14
INSTANT: Canceling the entry delay upon arming (AWAY or HOME)
11
DISARM / OFF: Disarming the system and stopping alarms
16
PARTITION: Partition selection (for future use)

Visonic POWERMASTER 10 Specifications

General

Communication Protocols	PowerG
Frequency	433-434 MHz, 868-869 MHz
System Type	Wireless
Communication	GSM
Remote Control	Yes
Event Log	1000 events
Partitions	3
Humidity	85% non-condensing
User Codes	8
Backup Battery	Ni-MH battery pack
Operating Temperature	-10°C to +50°C
