VISSCHER CYPRESS - Page 21

F
2 1/2" #8 WASHER HEAD (#2 ROBERTSON)72X
TRIGGER CLAMP (X2)
Step 9
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN

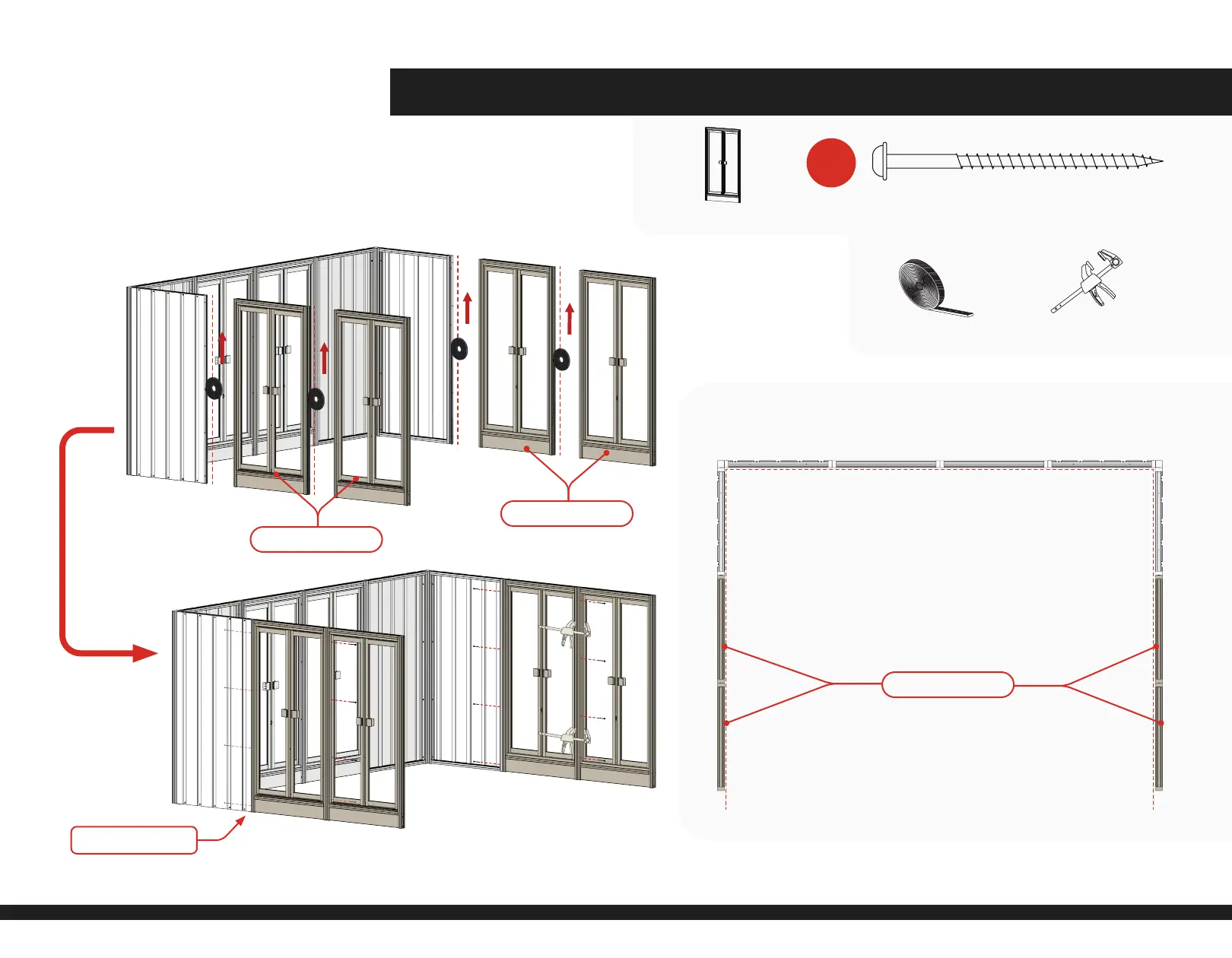

1) Use Foam Gasket (DC 1880) and adhere to Shear Panel edges (DC 3544 and DC 3505).
2) Fasten the Bifold Windows (DC 3505) to the structure. 

16X
Trigger clamp 1880 Foam Gasket
Top view
Fastened from inside
3505 Bifold Window
3505 Bifold Window
3505 Bifold Window
3505 Bifold Window
