3 1/8" X 5/16" RSS (T30 TORX)44X
Step 12
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN

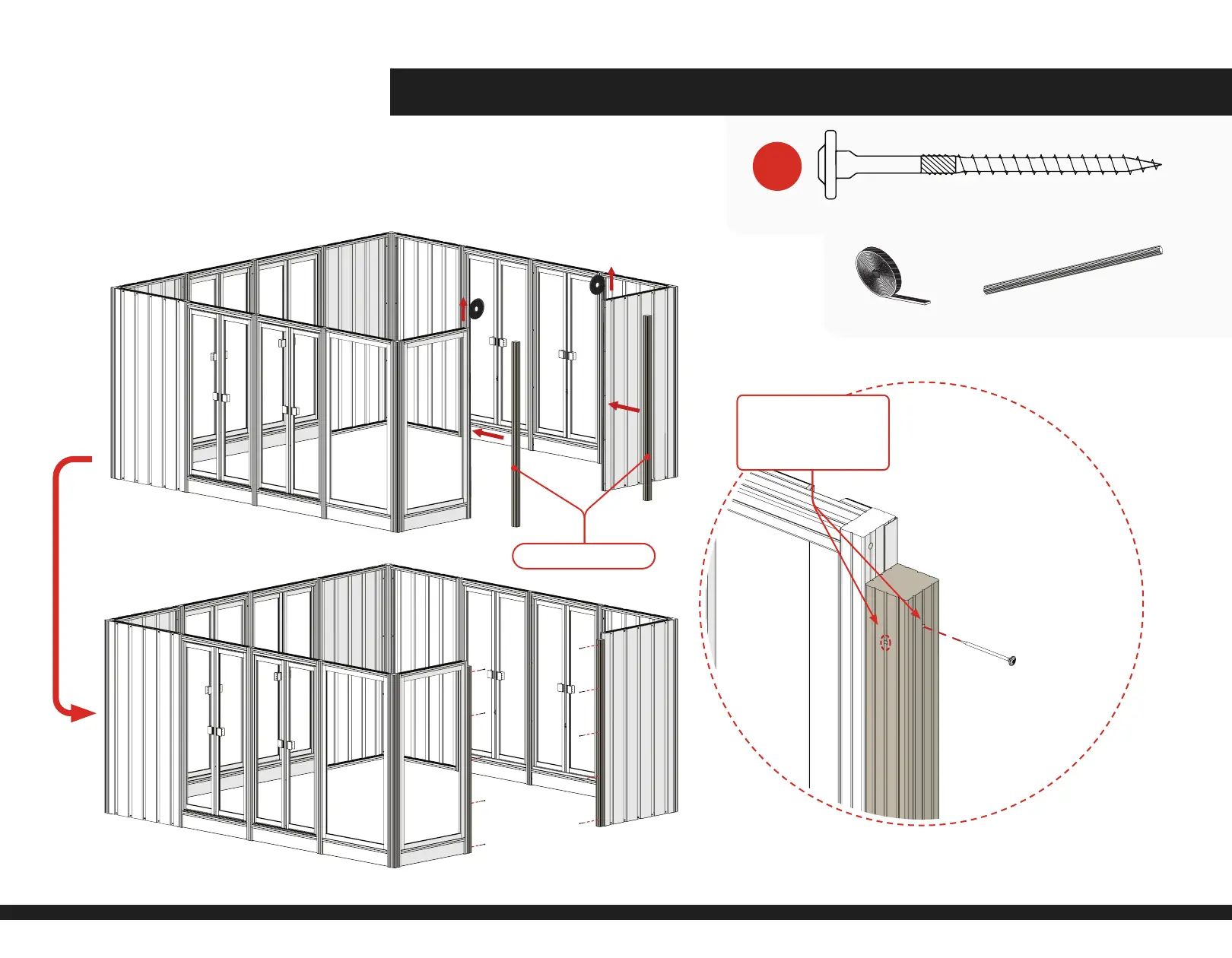

1) Use Foam Gasket (DC 1880) and adhere to Panel edges (DC 3544 and DC 3506).
2) Fit the two Posts (DC 4086) in the position shown on diagram.
3) Fasten the Posts to the Panels in the pre-drilled holes.
10X
4086 Post (Pre-drilled)
Post has 2 pre-drilled
sides. Use one side to
attach to Panel. The other
face to the inside.
1880 Foam Gasket
4086 Post (Pre-drilled)
To Next Page
