2 1/2" #8 FLAT HEAD (#2 ROBERTSON)264X
Step 26
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN

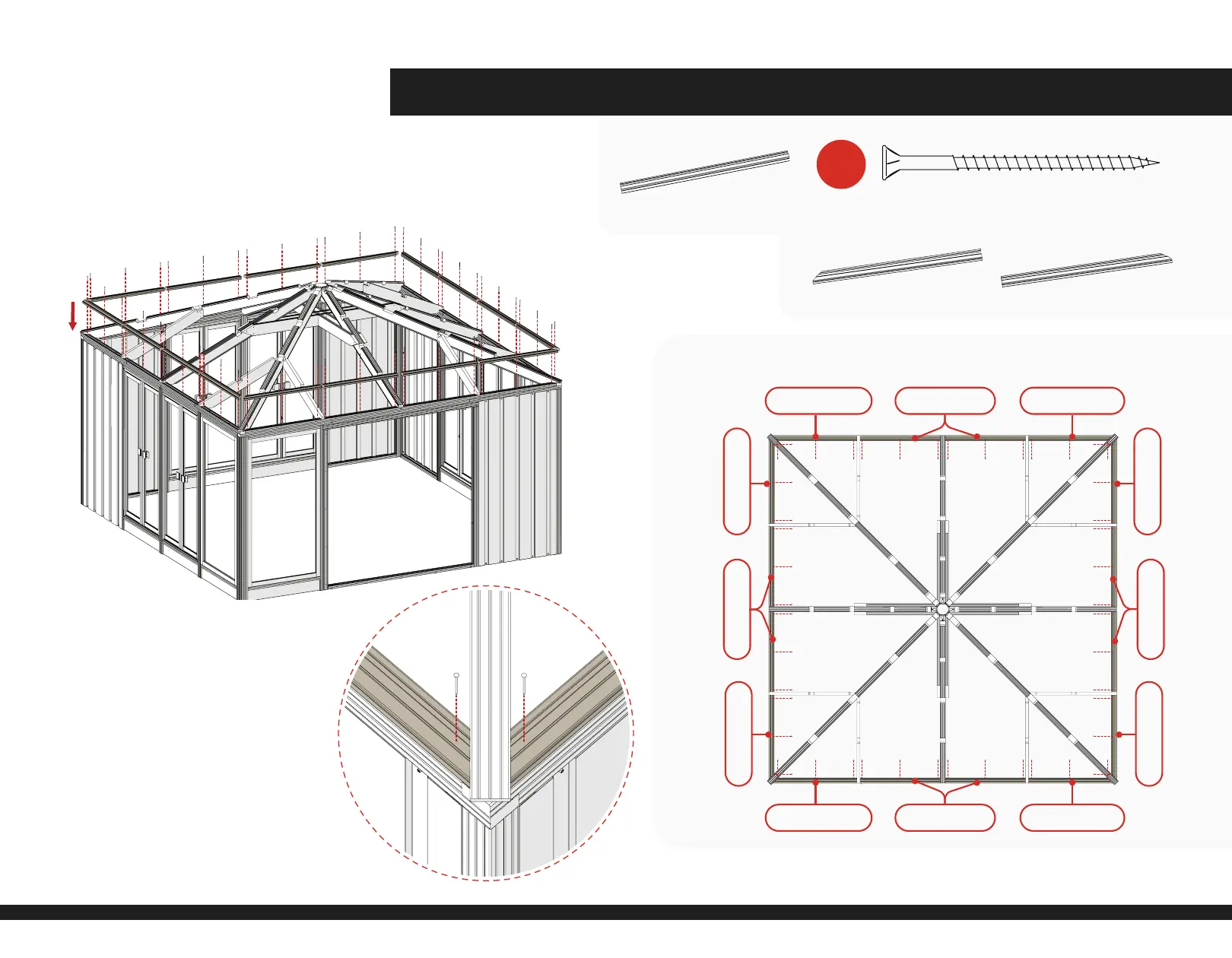

1) Fit the Panel Supports (DC 4137, DC 4138 and DC 4139) between Rafters as shown.
2) Fasten the Panel Supports to the Truss Frame.
48X
4137 PS Left
4137 PS Left
4137 PS Left
4137 PS Left
4139 PS Right
4139 PS Right
4138 PS Mid
4138 PS Mid
4138 PS Mid
4138 PS Mid
4139 PS Right
4139 PS Right
Top view
4137 Panel Support (Left)
4138 Panel Support (Mid)
4139 Panel Support (Right)
