VISSCHER CYPRESS - Page 46

A
1 1/2" #8 FLAT HEAD
(#2 ROBERTSON)
3X
Step 33
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN

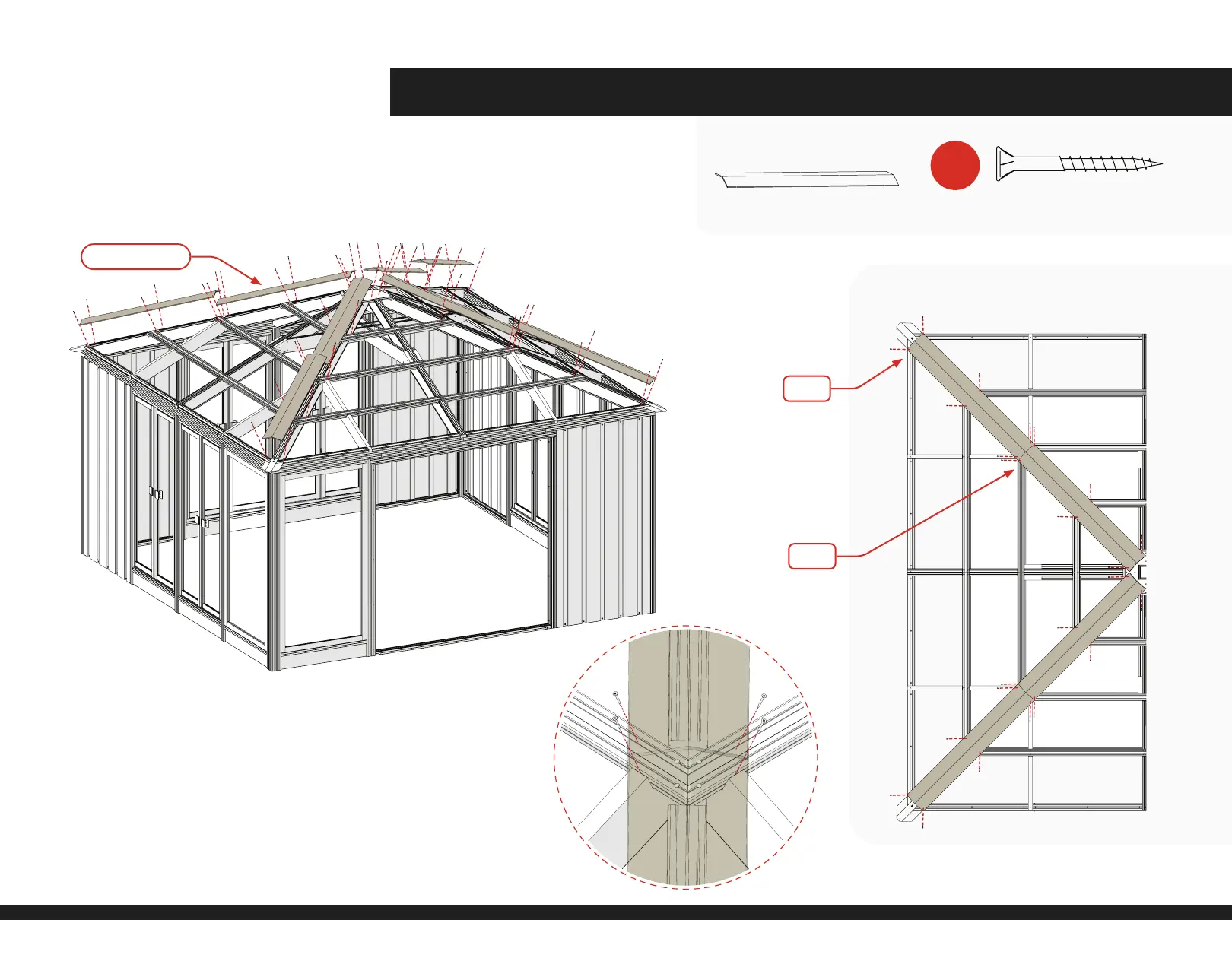

1) Align the Hip Covers (DC 2155) so it is centred on the Rafter and the bottom just
touches the outside of the Panel Support, as shown.
2) Fasten the Hip Covers to the Strappings and Panel Supports.
48X
2155 Hip Cover
2155 Hip Cover
Flush
Flush
Top view
