VISSCHER CYPRESS - Page 45

A
1 1/2" #8 FLAT HEAD
(#2 ROBERTSON)
3X
Step 32
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN

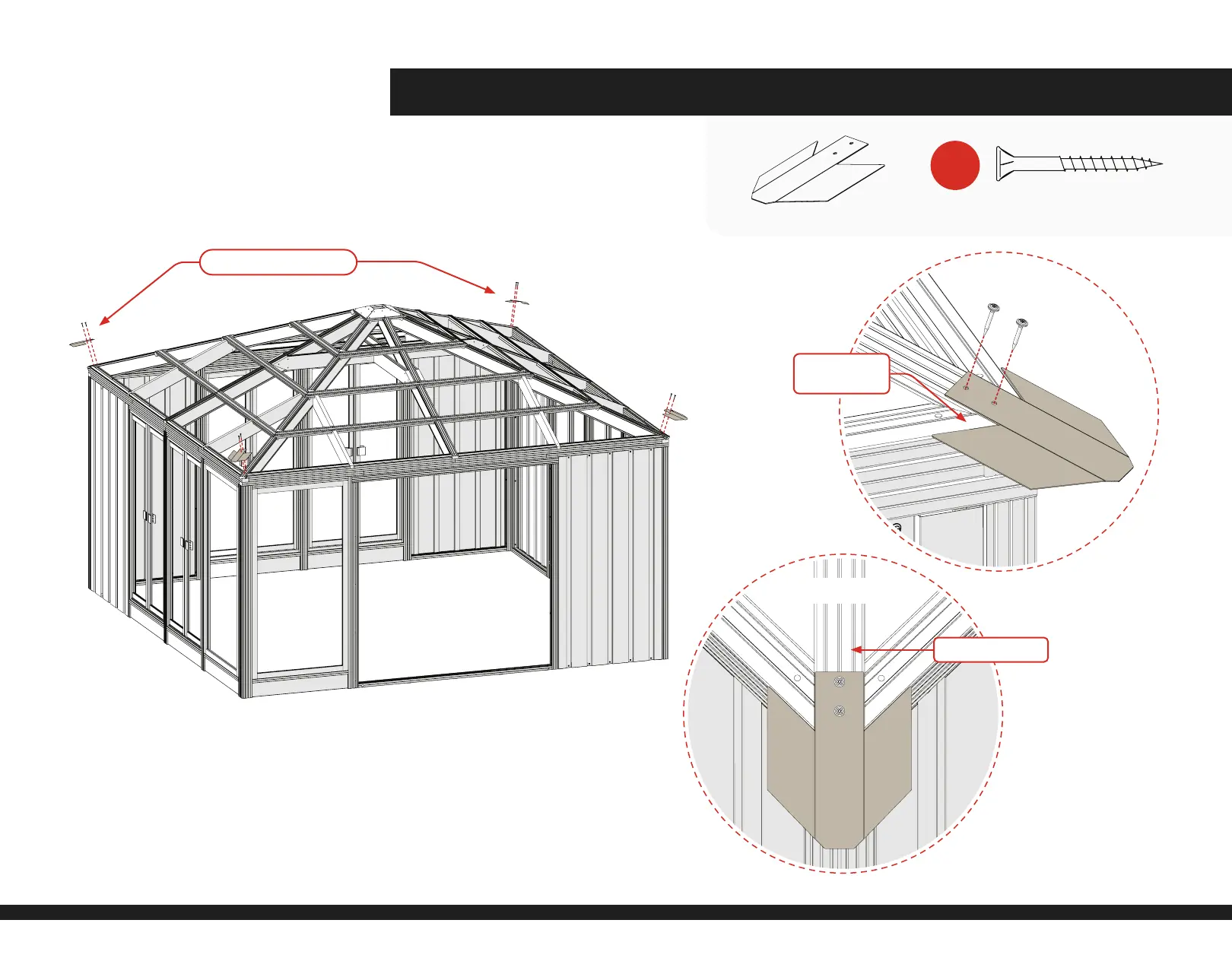

1) Attach the Metal Corner Cover (DC 4197) at the positions shown on diagram.
2) Fasten the screws in the pre-drilled holes to the Hip Rafters.

4197 Metal Corner Cover
8X
4197 Metal Corner Cover
Top view
Centered on Rafter
Align with end
of Rafter
