I
1" #9 HEX HEAD234X

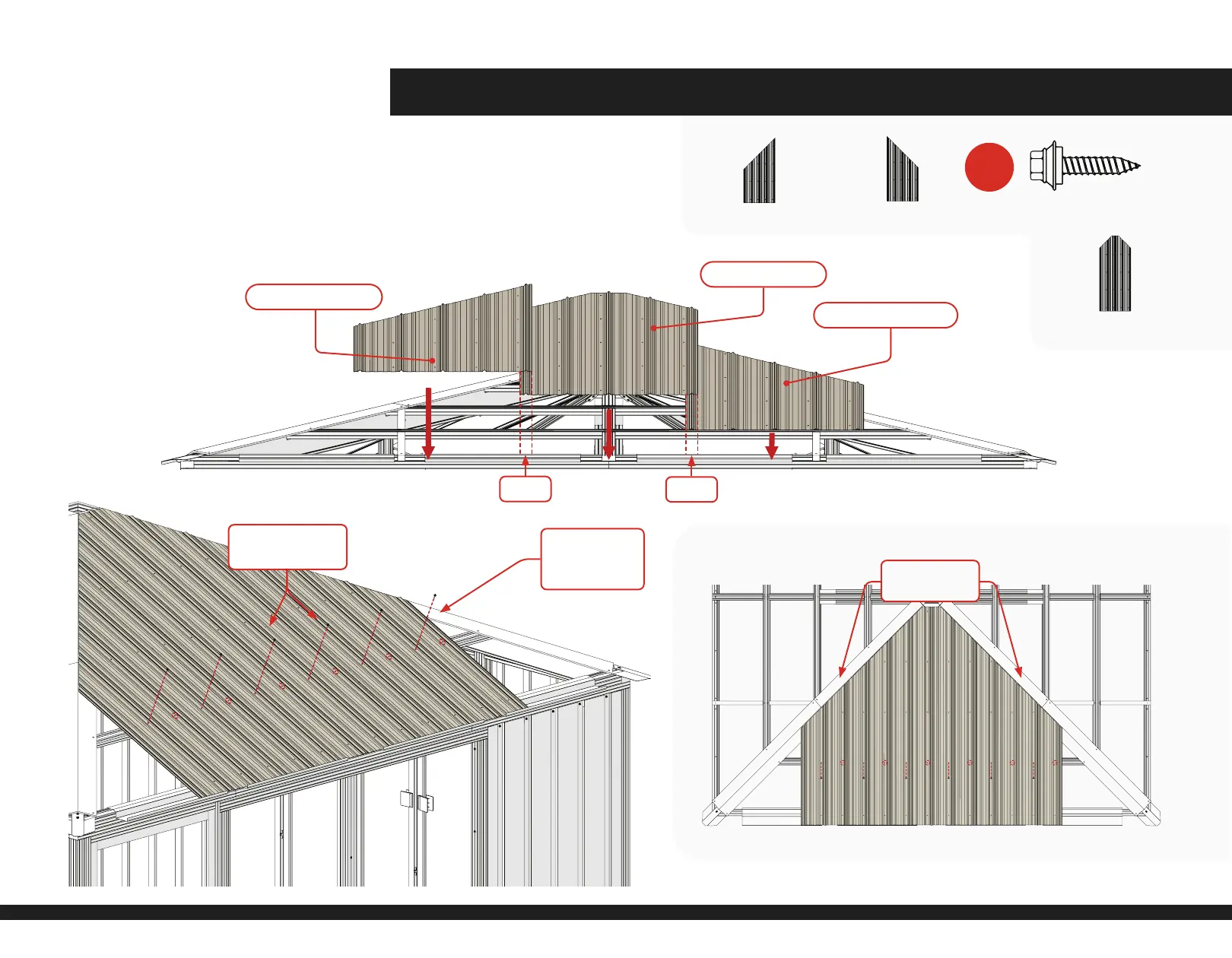

Step 36
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN
1) Place Roof Sheets (DC 7042, DC 7043 and DC 7044) using the Roof Installation Tools as base and evenly across
Hip Rafters.
2) Align top of sheet to the edge of the top strap.
3) Fasten two screws per Roof Sheet in the pre-drilled hole locations indicated on diagram. Only fasten the middle line
6X
7042 RS (Inside left)
7044 RS (Inside right)
Overlap
Overlap
Top view
Front view
7042 RS (Inside left)
7043 RS (Middle)
7044 RS (Inside right)
Resting evenly
on Hip Rafters
Only fasten the
middle line of
screws.
Fasten two screws
per Roof Sheet.
7043 RS (Middle)
To Next Page
