I
1" #9 HEX HEAD234X

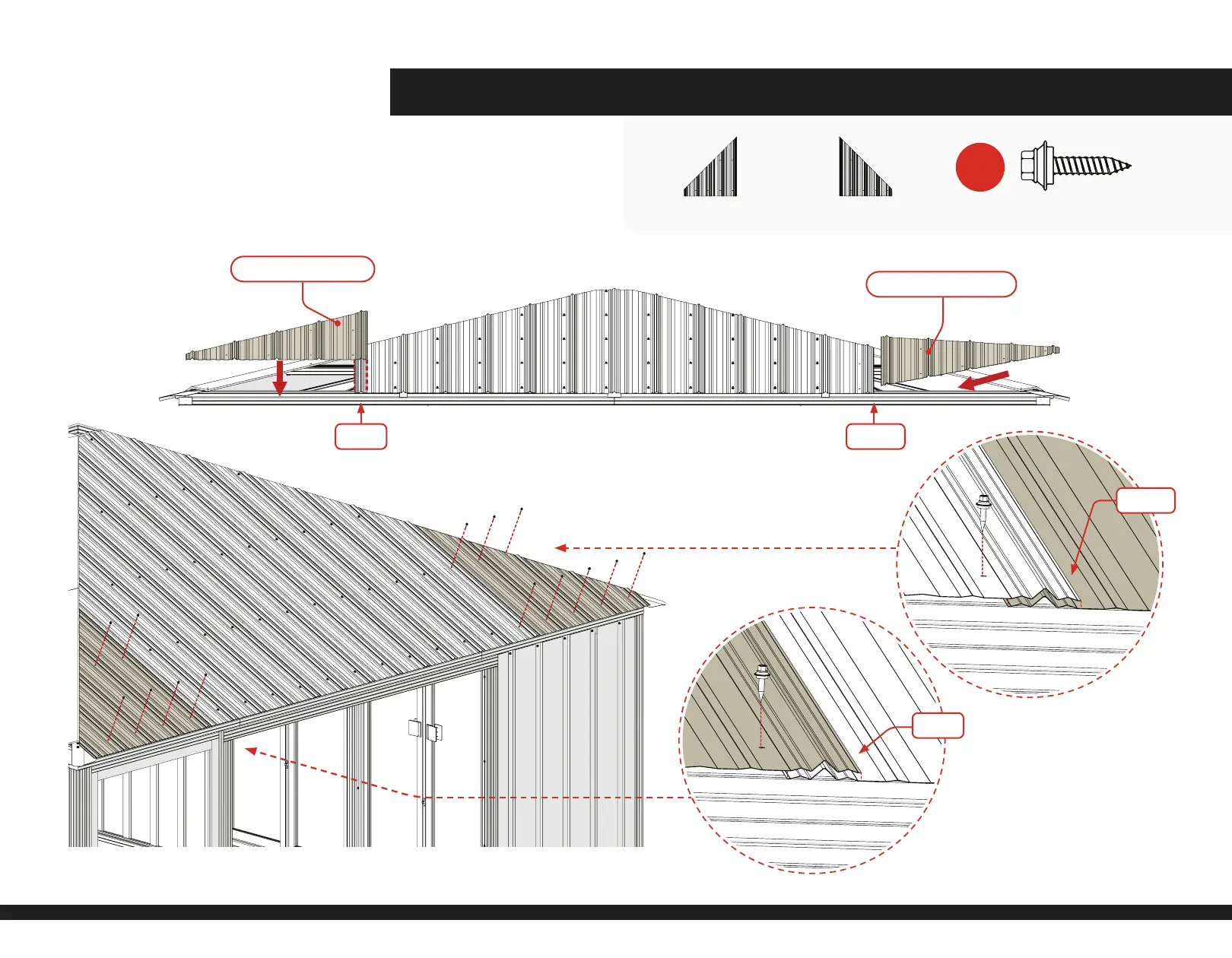

Step 38
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN
7041 RS (Outside left)
7045 RS (Outside right)
Front view
14X
1) Place Roof Sheet (Outside left) (DC 7041) on the Roof strapping, overlap one rib as shown.
2) Place Roof Sheet (Outside right) (DC 7045) on the Roof strapping, underlap one rib as shown.
3) Align Bottom of Sheets to previously installed Sheets.
4) Fasten remaining screws for this section.
Overlap
Underlap
Underlap
7041 RS (Outside left)
7045 RS (Outside right)
Overlap
