3/4" #14 HEX185X
Step 43
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN
Top view
Screws must be fastened
through the top ribs of the
Roong sheet only.

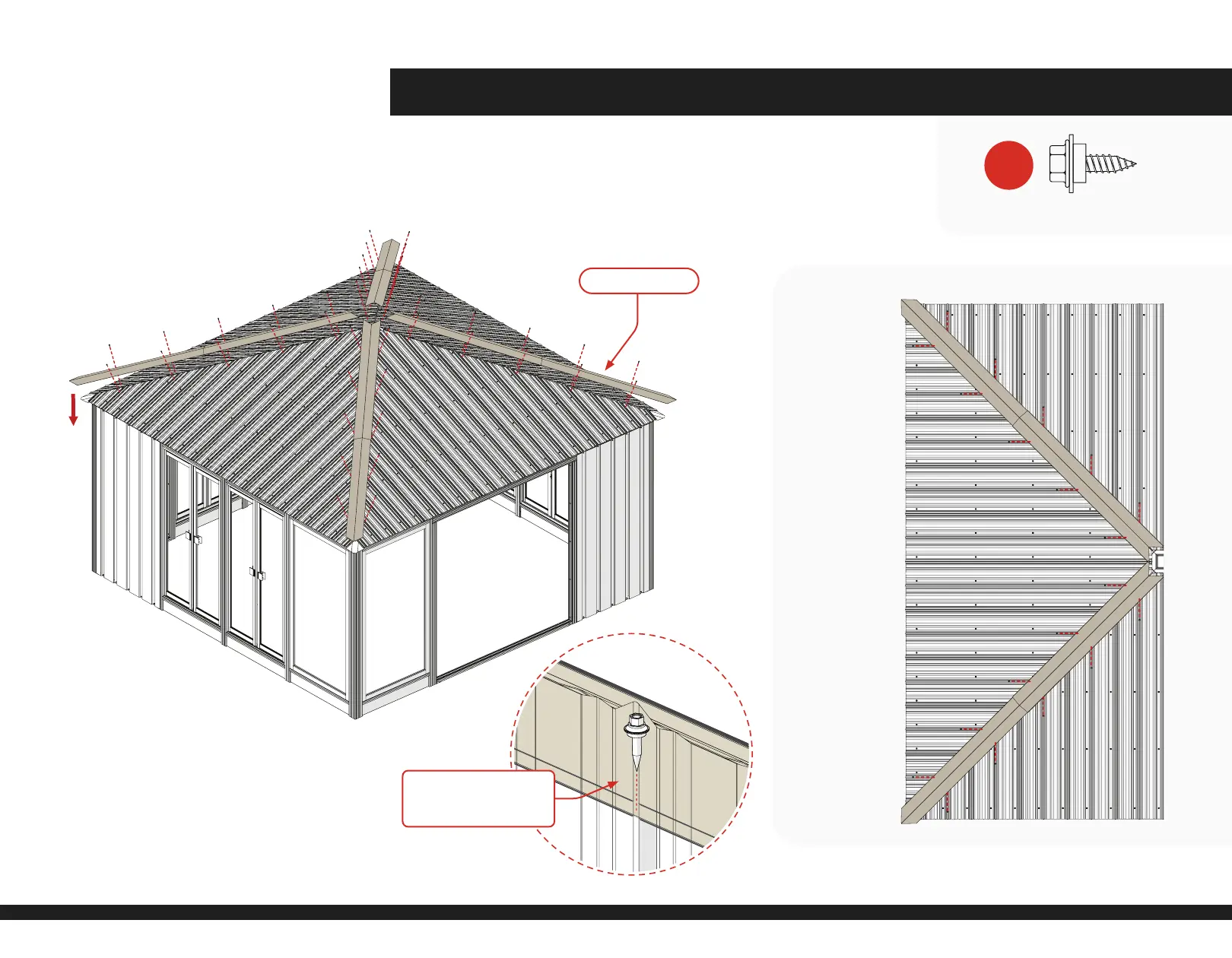

1) Align the Hip Cap Assemblies in the bottom and top so it is centered on the Hip joint.
2) Fasten through the Hip Caps into the Top Ribs of the Roong sheets only, as shown on Top View.
3) Repeat the process for all four sides.
40X
Hip Cap assembly
