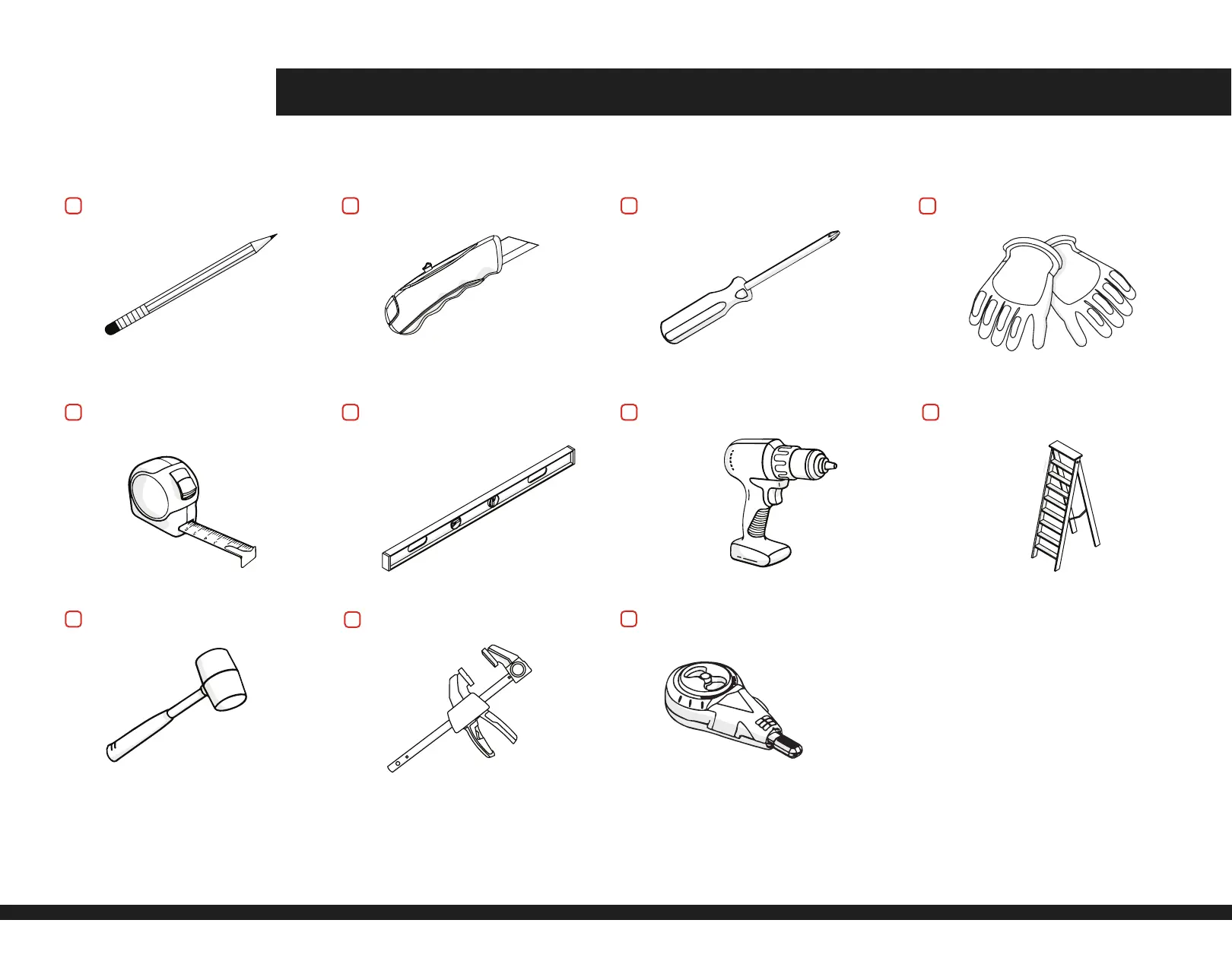

This document is an instruction manual for a Visscher gazebo, specifically the Hudson, Adela, and Minto 11x11 models. It provides detailed steps for assembly, a list of required tools and hardware, and information regarding optional accessories.

Function Description:

The Visscher gazebo is a fully enclosed outdoor structure designed to provide additional square footage and a stylish look to a property. It features a robust construction with various panel options, including shear panels, soft window panels, folding soft windows, and screens. The structure is designed for assembly on a firm, level surface and is intended for use as an outdoor enclosure. It includes a single door with a handle, latch, and deadbolt for security and access. The roofing system is designed to be sturdy and includes multiple layers of strapping and sheets for weather protection. Optional bay kits can be added to customize and expand the gazebo.

Important Technical Specifications:

Dimensions:

Gazebo Footprint: 11x11 feet (implied by "11x11" in the title and 120" measurements for the truss frame assembly).
Truss Frame Assembly: 120" x 120" (10 ft x 10 ft) with diagonals of 169 11/16".
Shear Panel (DC 3544): 30 5/8" wide (implied from the component list).
Soft Window Panel (DC 3507): 30 5/8" wide (implied from the component list).
Split Truss Frame Member (DC 4033): 62 9/16" long.
Split Truss Frame Sub-Assembly (DC 4031): 80" long.
Post (DC 5125): 78 9/16" long.
Strike Post (DC 4091): 78 9/16" long.
Hinged Post (DC 4092): 78 9/16" long.
Header (DC 4093): 40" long.
Threshold (DC 4093): 40" long.
Common Rafter (DC 4036): 65" long.
Hip Rafter (DC 4035): 88 3/8" long.
Lower Roof Strapping (DC 4037): 83 1/4" long.
Hip Cover (DC 2193): 83 1/2" long.
Hip Cap (DC 7220): 99" long.
Roof Installation Tool (DC 7063): 30" long.
Panel Support Left (DC 4044): 60 3/4" long.
Panel Support Right (DC 4045): 60 3/4" long.
Peak Support Block (DC 4125): 14 5/8" high (approximate, based on diagram).
Mid Roof Strapping (DC 4040): 40 3/4" long.
Upper Roof Strapping (DC 4042): 14 5/8" long.
Roof Sheets (DC 7029, 7030, 7031, 7032): 68" long with a 36 1/2" diagonal.
Metal Corner Cover (DC 4104): 10" long.
Bottom/Top Foam Closure (DC 2823, 2822): 32" long.

Hardware:

Robertson Bit: 1X
1/4" Hex Head Bit: 1X
3/8" Hex Head Bit: 1X
Torx T25 Bit: 1X
Torx T30 Bit: 1X
4" x 5/16" RSS (T30 Torx) (V): 4X
3 1/8" x 5/16" RSS (T30 Torx) (X): 8X
2 3/4" #10 RSS (T25 Torx) (U): 48X
1 1/2" #8 Flat Head (#2 Robertson) (A): 58X
2 1/2" #8 Washer Head (#2 Robertson) (F): 80X
2 1/2" #8 Flat Head (#2 Robertson) (B): 136X
3/4" #14 Hex (H): 32X
1" #9 Hex Head (I): 128X
Black Plastic Shim: 3X

Components:

Panels:
- Shear Panel (DC 3544): 4X
- Soft Window Panel (DC 3507): 7X
- Folding Soft Window (DC 4102): 7X
- Screen (with Soft Window) (DC 2006): 7X
Roofing Parts:
- Split Truss Frame Member (DC 4033): 4X
- Split Truss Frame Sub-Assembly (DC 4031): 8X
- Post (DC 5125): 4X
- Foam Gasket (DC 1880): 2X
- Strike Post (DC 4091): 1X
- Hinged Post (DC 4092): 1X
- Header (DC 4093): 1X
- Threshold (DC 4093): 1X
- Common Rafter (DC 4036): 4X
- Peak Cap (DC 7209): 1X
- Hip Rafter (DC 4035): 4X
- Roof Installation Tool (DC 7063): 2X
- Ridge Beam Bracket (DC 4097): 8X
- Lower Roof Strapping (DC 4037): 4X
- Panel Support Left (DC 4044): 4X
- Hip Cover (DC 2193): 4X
- Panel Support Right (DC 4045): 4X
- Peak Support Block (DC 4125): 1X
- Hip Cap (DC 7220): 4X
- Mid Roof Strapping (DC 4040): 4X
- Upper Roof Strapping (DC 4042): 4X
- Roof Sheet (Outside left) (DC 7029): 4X
- Roof Sheet (Inside left) (DC 7030): 4X
- Roof Sheet (Inside right) (DC 7031): 4X
- Roof Sheet (Outside right) (DC 7032): 4X
- Sealing Tape (DC 2033): 1X
- Metal Corner Cover (DC 4104): 4X
- Bottom Foam Closure (DC 2823): 20X
- Top Foam Closure (DC 2822): 4X
Single Door:
- Single Door (DC 4090): 1X
- Strike Plate (DC 4094): 1X
- Handle, Latch, Deadbolt (DC 2386): 1X set
- 3 Keys Set (DC 2569): 1X set

Usage Features:

Customizable Panel Location: Panel locations can be modified to fit individual needs, with the requirement that each side must have at least one Shear Panel.
Reversible Screen and Soft Window Position: The position of screens and soft windows can be easily reversed to user preference.
Reversible Door Direction: The single door's direction can be reversed during assembly.
Optional Bay Kits: The gazebo can be customized with up to four optional Bay Kits, which add square footage and enhance the aesthetic.
Optional Accessories: The gazebo can be upgraded with additional optional accessories like Cedar Panels.
Two-Person Project: Assembly is recommended as a two-person project due to the weight of the product.
Estimated Assembly Time: Approximately 8 hours.

Maintenance Features:

Protective Plastic on Shear Panels: Shear Panels come with a protective plastic film to prevent scratches and scuffs during shipping and handling. This film must be removed before assembly and is not meant to be left on, as it will be difficult to remove if exposed to the sun.
Foam Gasket Application: Foam gaskets are used to seal panel edges and prevent water ingress, contributing to the longevity of the structure.
Proper Fastening Techniques: Instructions emphasize proper screw insertion (e.g., "Do not over sink Panel Screws," "Screws should be in middle," "Screws at Hip Rafters must enter on an angle," "Do not over-tighten screws") to ensure structural integrity and prevent damage.
Roofing Installation Guidelines: Specific instructions for roof installation, such as stepping only on screw lines and avoiding ribs to prevent dents and deformation, are provided to maintain the roof's condition.
Warranty Information: Deviation from instructions may void the product's warranty, highlighting the importance of following the manual for proper maintenance and coverage.
Assistance and Replacement Parts: Contact information for Visscher Dealer and a toll-free number are provided for assistance and ordering replacement parts, ensuring ongoing support for maintenance. Serial number is required for quick service.

VISSCHER HUDSON - Page 4
