3) Push and start edging
Measure lens thickness
Rough edging
(Switched to the screen of beveling shape)
Delicate edging
When choose ( polishing)
When choose ( Chamfering)

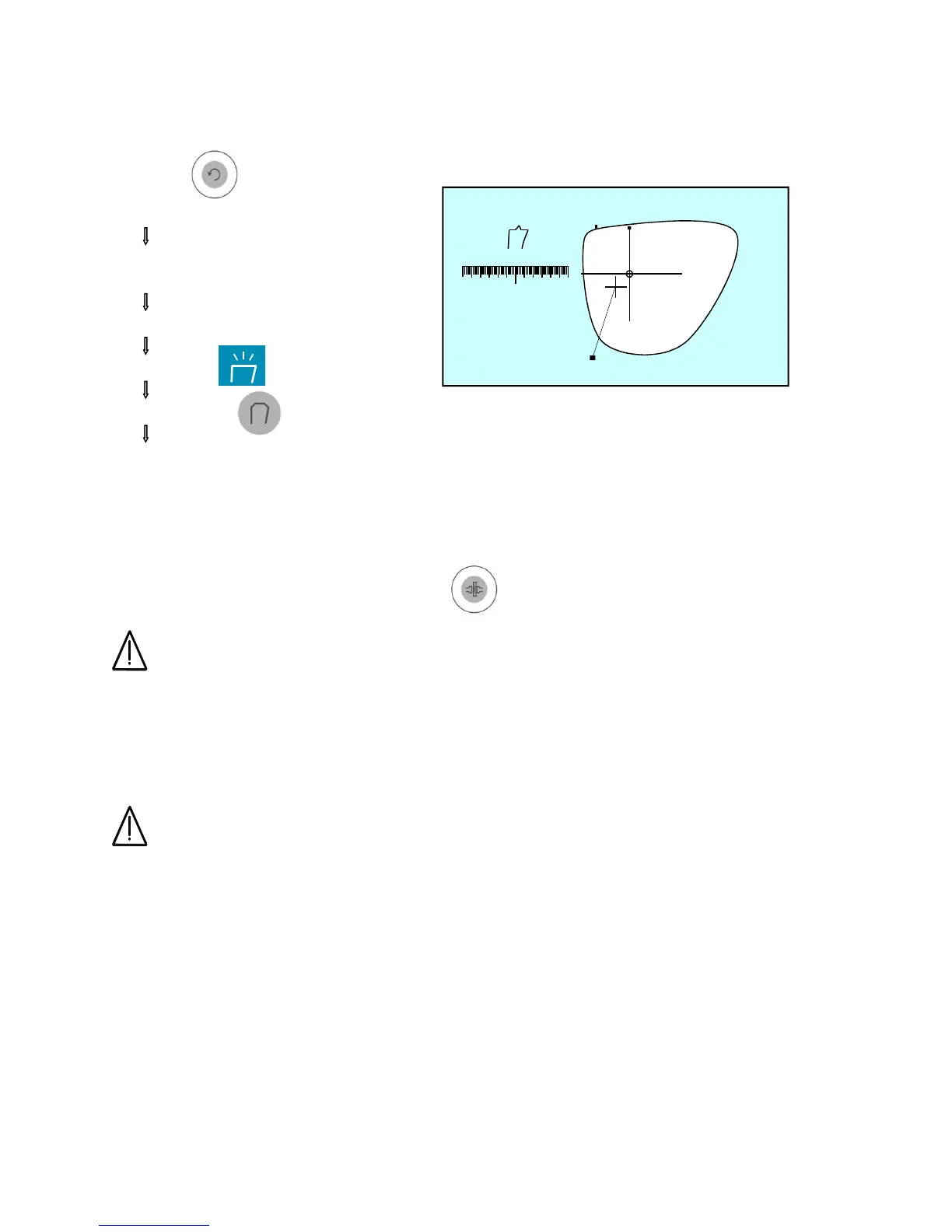

Fig.15 Screen of beveling shape
Edging is done( switched to home)
4) Pull complete lens out
Open sliding cover and take the lens , push key and pull lens out.
Warning
Pull lens out after opening sliding cover and the wheel is stopped throughly.
The operator may be able to be injured by the breakage or broken frictions
when lens is fallen to wheel if take the chuck off on condition that wheel
is not stopped throughly.
Warning
Be sure to close sliding cover certainly before start edging.
Edging may not be able to be worked as sliding cover is not closed.
Don't open sliding cover during edging.
The operator may be able to be injured eye by the edging frictions simply
because the edging is not to be stopped though sliding cover is open
during edging.
MIN : 70.00
RATIO 3.0 : 7.0
LENGTH(mm) 3.0 : 7.0
7.07.0
7.0
STEP : 0.1
