12

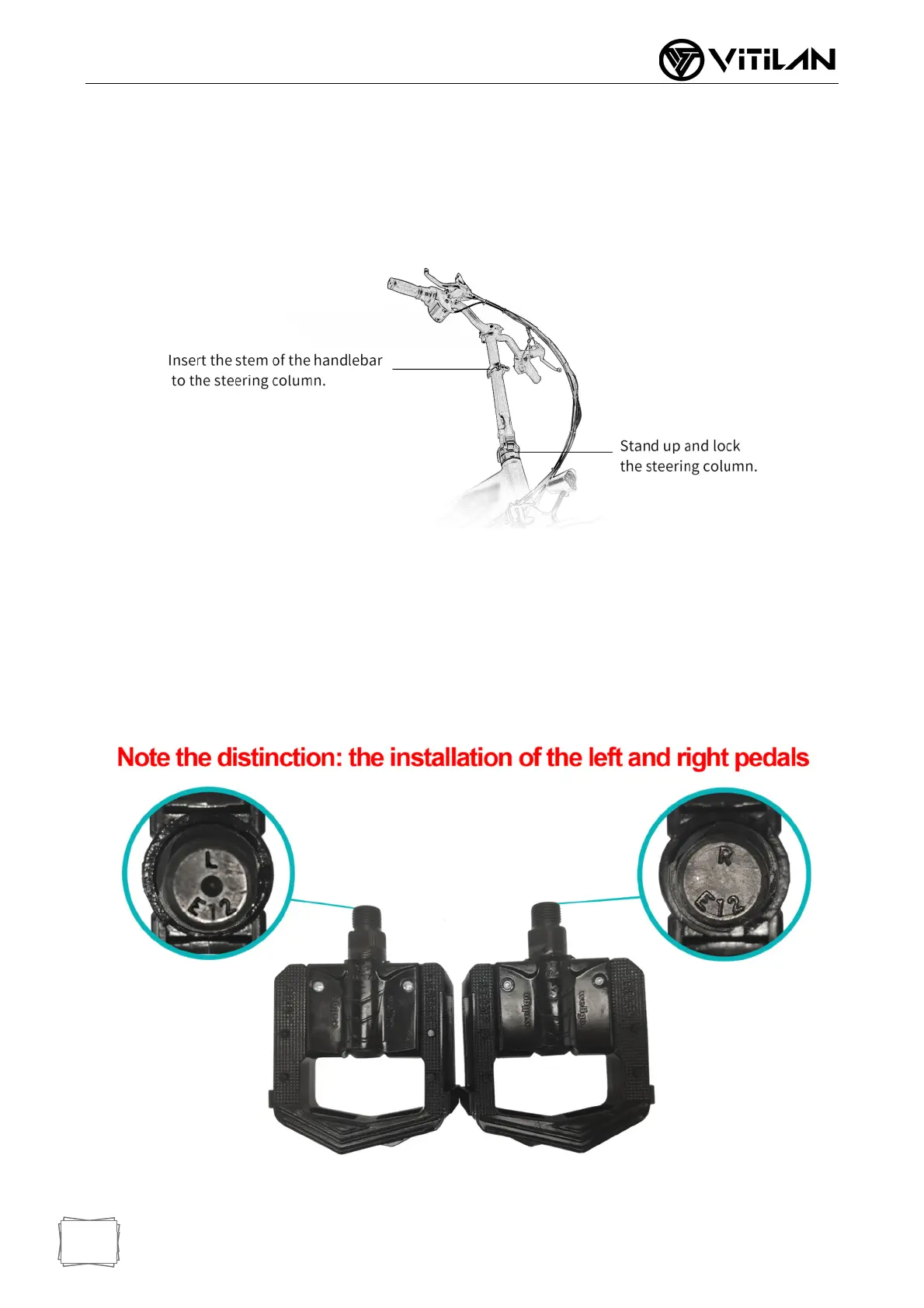

Assembly - Step 1: Attach the handlebar subassembly
Stand the main body of the e-bike on the kickstand. Stand up and lock the steering
column that is at the front of the main body frame, insert the stem of the handlebar
subassembly into it. Make sure that the fork (that will hold the front wheel) is pointing
forward, and orient the handlebar accordingly. Insert the stem all the way and tighten
from the top using the quick lock.
Assembly - Step 2: Installing the Seat and Pedals
Insert the pedestal stem of the seat into the seat column of the main body frame, use
the built-in lever to tighten.
Attach a pedal on each side of the crank, note the distinction between left pedal and
right pedal, tighten with the multi-tools.
