7
(16-1) Area ○
d
:
(16-1-1) FOV:Field of View (FOV) display image on the
effective horizontal size of screen.

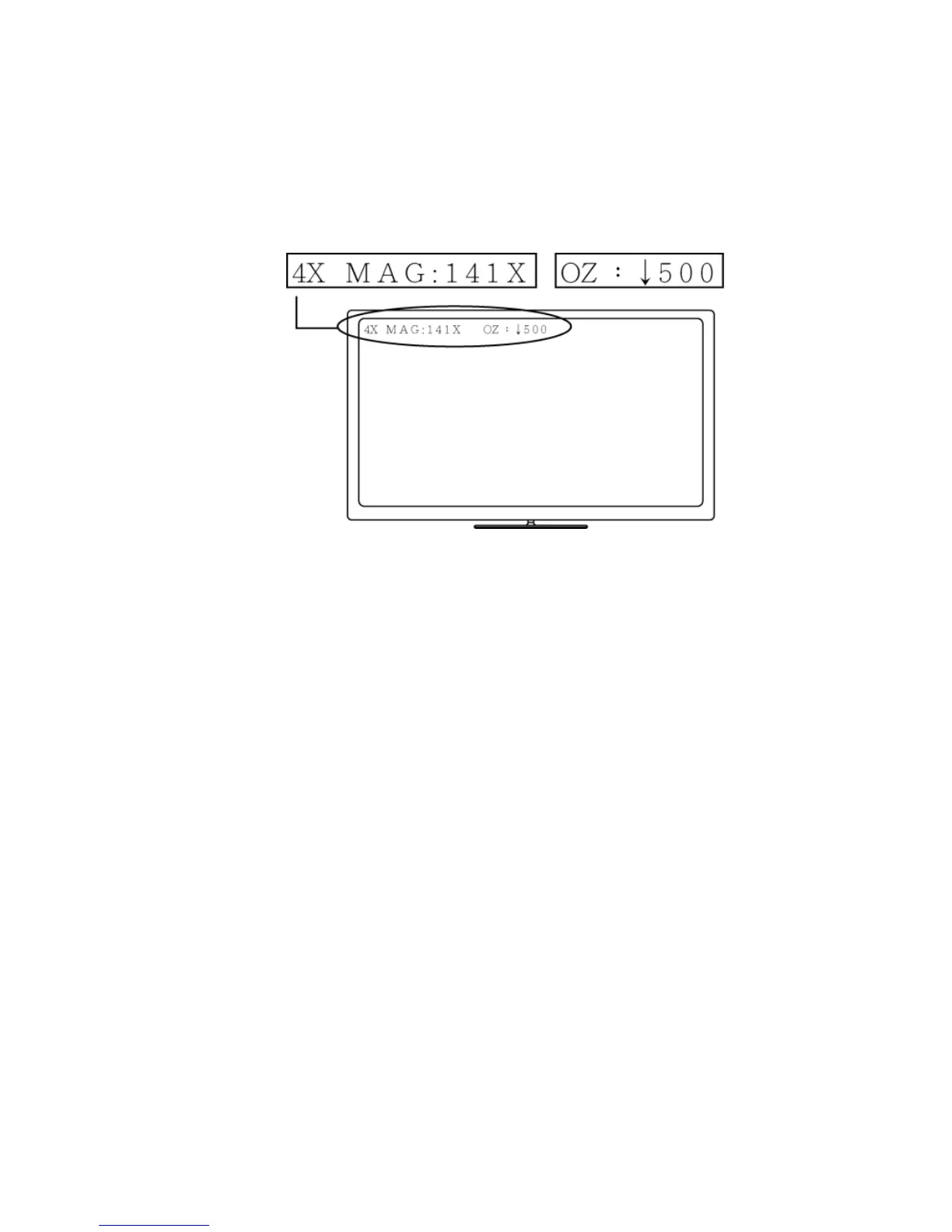

(16-1-2) MAG:(Magnification) The magnification size will
change depending on the lens position, screen size, and
image ratio.
(16-1-3) WD: Working Distance.
(16-2) Area ○
e
:
(16-2-1) OZ:Optical Zoom. Ex: OZ:↓500, ↓means zoom in,
500 means sensor position.
(16-2-2) SZ:Step Zoom. Ex: SZ:↑500. Same format as OZ.
(16-2-3) AFS:Single Autofocus. Ex: AFS►A500, “A” means
○
