06

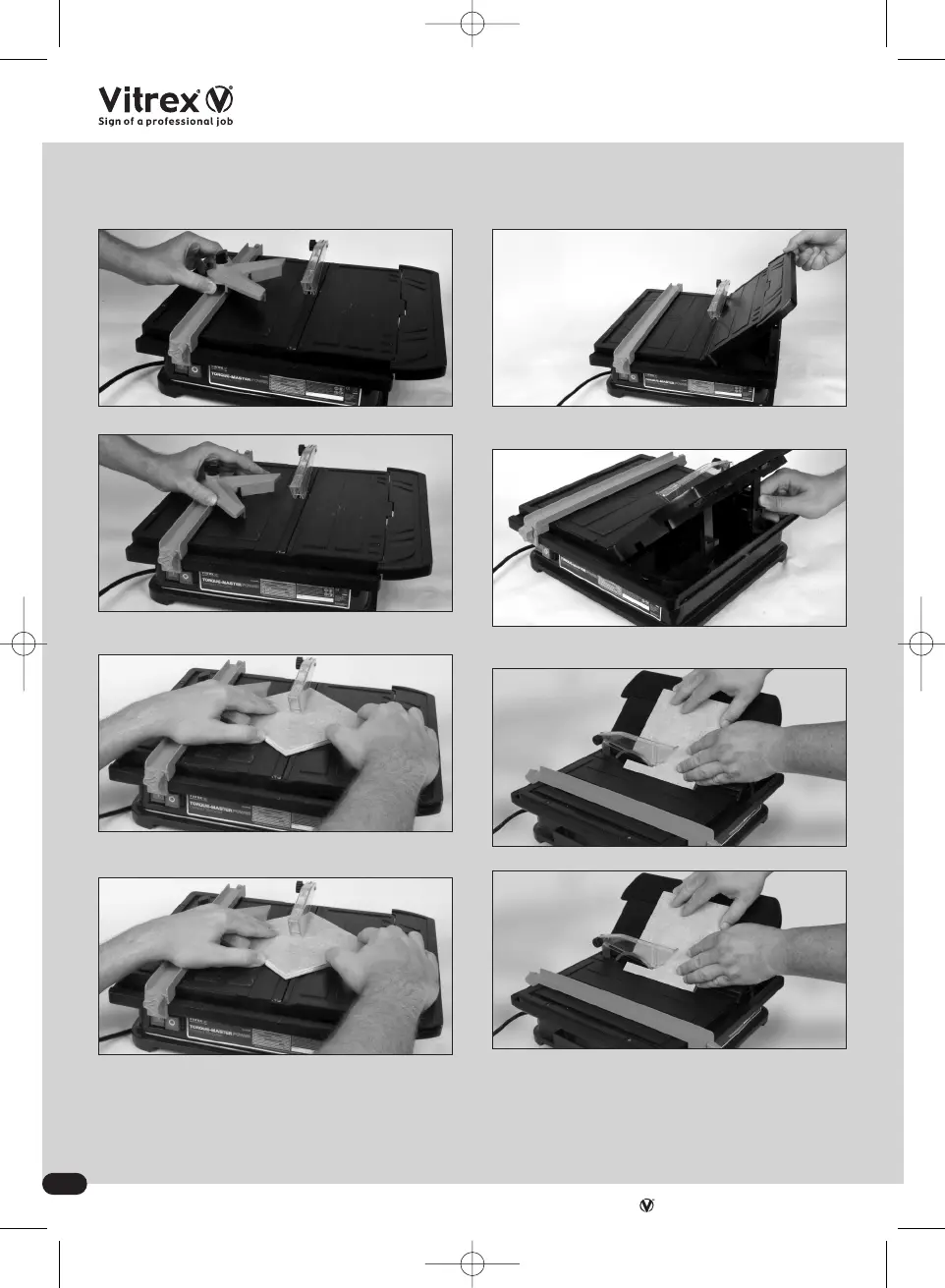

Operating Instructions
Angular Cuts
Operating Instructions
Mitre Cuts
Place the tile against the angled table top.
Switch on the machine and feed the tile through
the cutting blade. When the cut is complete,
switch off the machine.
Locate the appropriatelugs into the slots provided
on the inside edge of the reservoir.
For mitre cuts, raise the hinged section of the table to the
required angle (22.5° or 45°)
Re-tighten the knob and positionthe tile within the
jaws of the Mitre Guide.
Switch on the machine and while holding thetile firmly
in position, push the mitre guide steadilyalong the rip
guide, feeding the tile through the cutting blade.
When the cut is complete, switch off the machine.
Slacken the diamond-shaped knob and set the
required angle of cut.
Press the Mitre Guide into place on theRip Guide.
