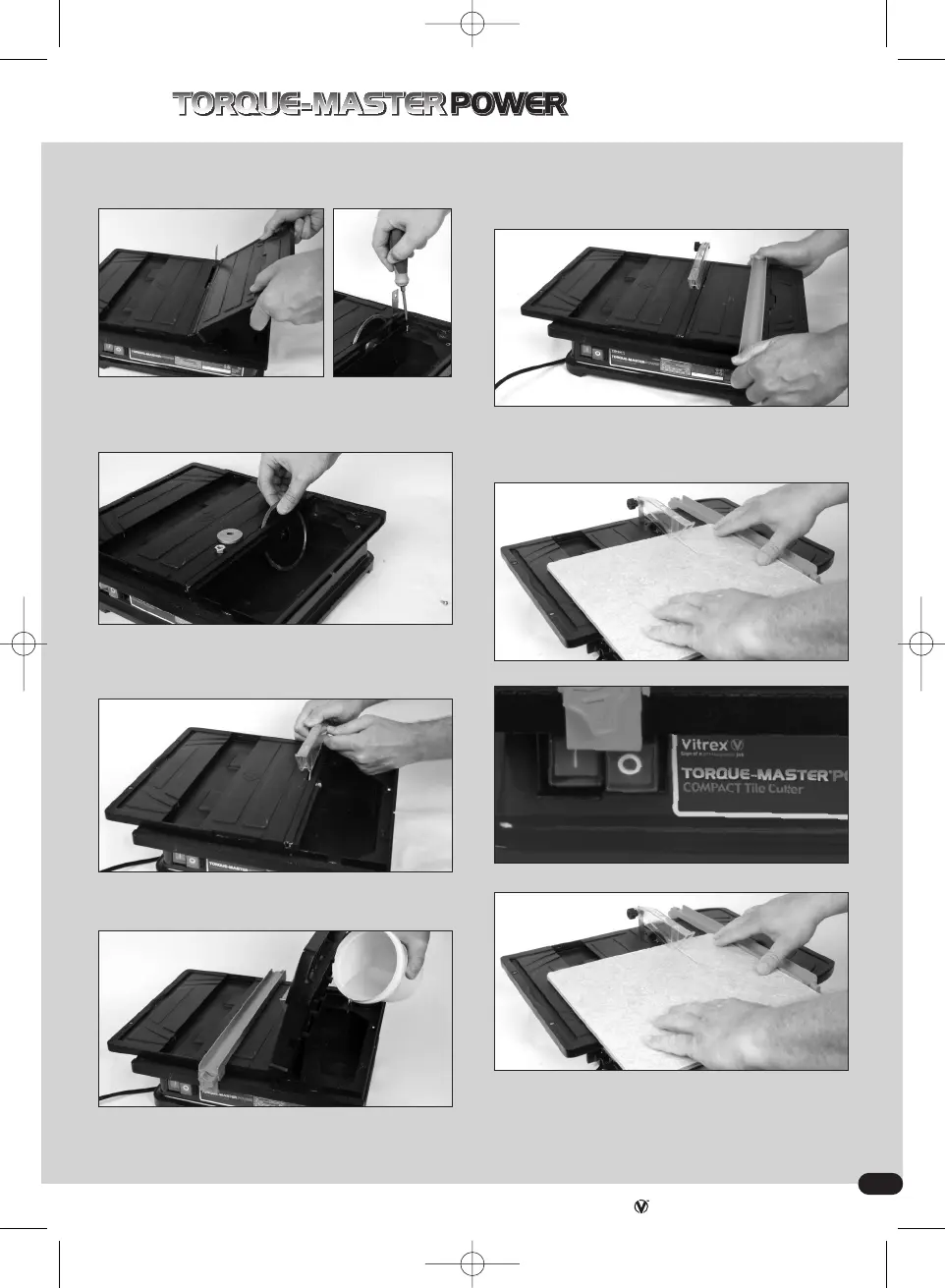

To fit the Cutting Blade, first carefully lift the hinged
section of the table top. Removescrew from
splashboard and remove the splashboard to allow
access. Remove bladesecuring nut and blade washer.
05
Close the table top hinged section and insert the blade
guard set behind the blade opening. Adjust the height
accordingly.
Before use, fill reservoir with water. For cleanest
results, only use enough water to cover the rim of the
blade. Check water level frequently during use.
Do Not allow the blade to run dry!
Assembly & Operation Operating Instructions
Straight Cuts
Positionblade against the bladecarrierwith the directional
arrowson the bladefacing anti-clockwise. Replace the
blade washer and blade securing nut. Then replace the
splashboard and secure with screw.
Switch on the machine.
Maintaining an even pressure, hold the tile against
the cutting guide and push steadily through the
cutting blade. When the cut is complete,
switch off the machine.
Position the tile on the table top.
Place the Rip Guide on the table top and line up with
the measurement graduations on either edge to the
required size. When correctly aligned, tighten the rip
guide securing nuts.
