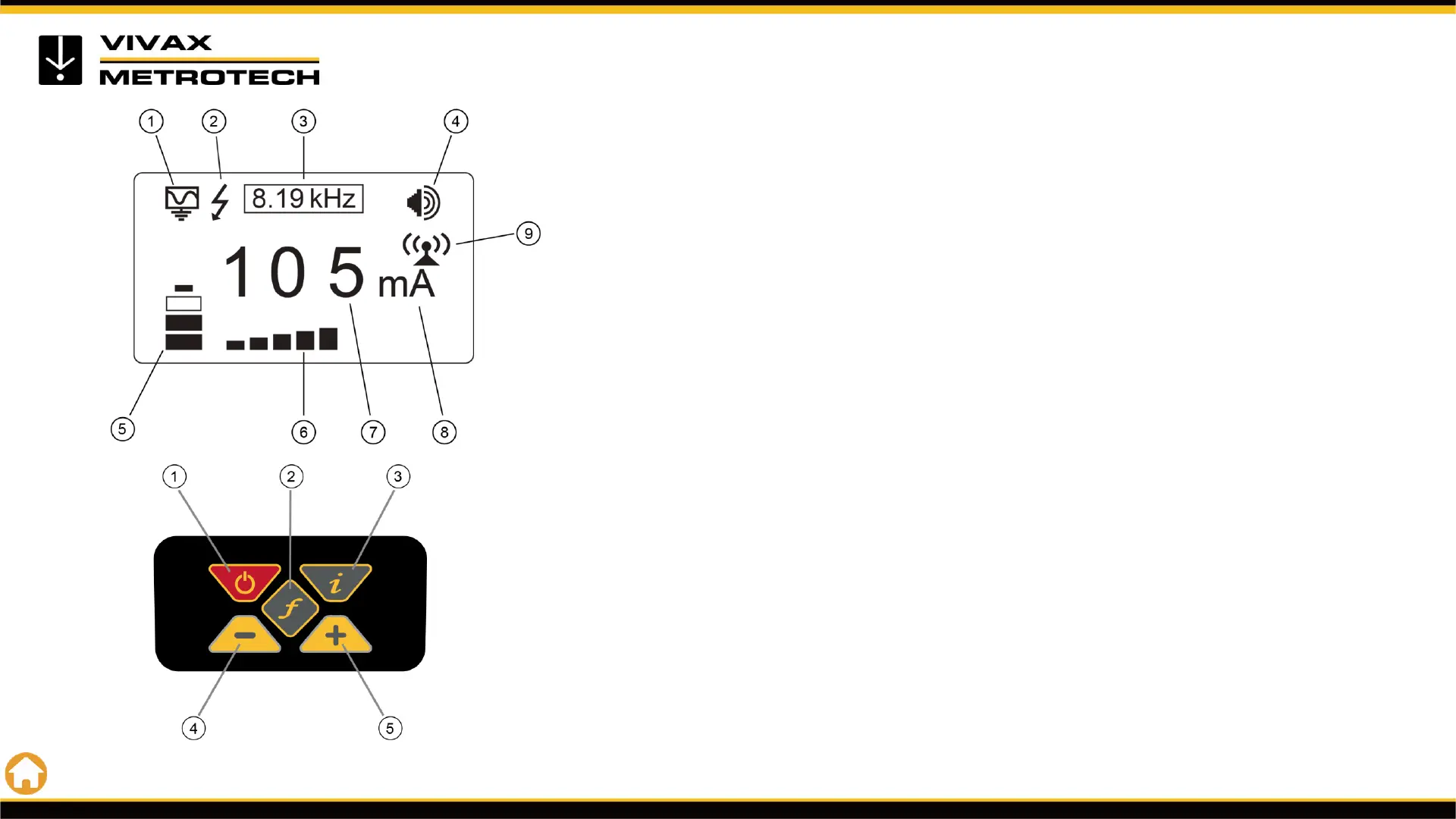

Loc3 Series Transmitters - LCD and Keypad
1 - On/Off Control
2 – Frequency Select
3 - Information (Volume, Volts, Ohms, Multi Frequencies LCD Contrast,
Bluetooth Menu, Frequency Menu)
4 - Output Decrease/Navigate through menu
5 - Output Increase/Navigate through menu
1 - Mode Indication Icon
2 - High Voltage Warning* (output is enabled for high voltage)
3 - Frequency Being Transmitted
4 - Loudspeaker Level
5 - Battery Status
6 - Output Setting (Step) (filled box indicates current level has been reached,
empty box indicates requested current level has not been achieved)
7 - Digital Read Out (mA, volts, ohms)
8 - Units (mA, volts, ohms)
9 - Blinking icon = Tx-Link is not paired
Solid icon = Tx-Link is active and linked to transmitter
